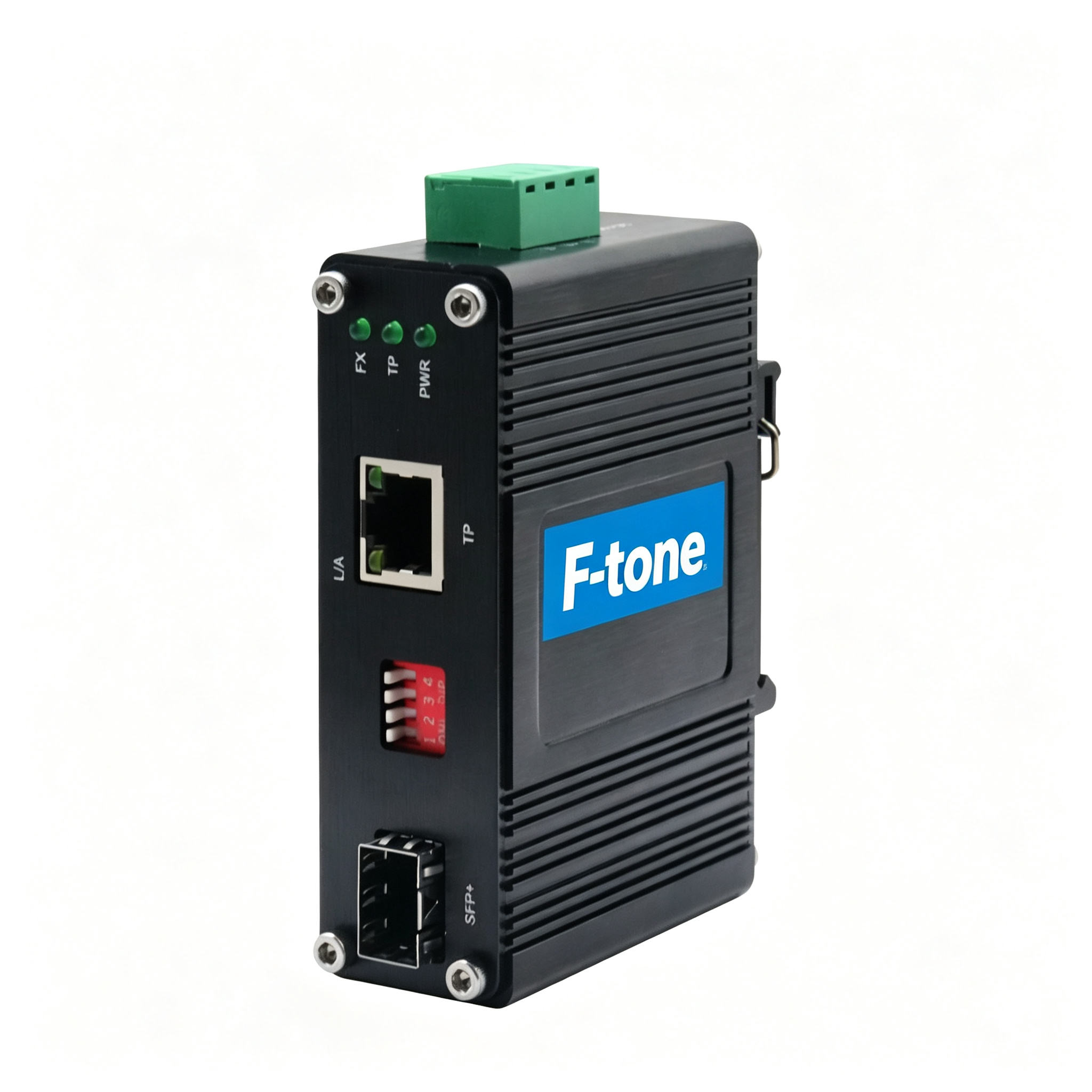

1*1G/10G光+1*100M/1G/2.5G/5G/10G电工业级光纤收发器
产品特点
Ø支持双12~48VDC宽电压输入 Ø电口支持全/半双工方式、MDI/MDI-X自动侦测 ØSFP光口支持单模、多模、单纤、双纤 Ø工作温度-40℃~ +85℃ Ø防雷防静电：6KV防浪涌保护，接触放电8KV，空气放电15KV Ø电源输入极性保护设计，反接无忧 Ø权威检测：公安部、电信进网许可，CE/FCC/RoHS/LVDS认证 ØIP40防护等级，防尘防潮无忧
订购信息
*说明：标配不含SFP光模块和电源适配器
| 订购信息(标配） | |
| FT9000-L10N113H-D | 工业级1×100/1G/2.5G/5G/10G + 1x 1G/10GBase-SR/LR SFP+/12~48VDC |
| FT9000-L10N113TH-D | 工业级1×100/1G/2.5G/5G/10G (PoE)+ 1x 1G/10GBase-SR/LR SFP+/12~48VDC |
| FT9000-L10N282HM-D | 工业级8×10/100/1000Base-T + 2x1000Base-X SFP/12~48VDC/管理型 |
| FT9000-L10N282THM-D | 工业级8×10/100/1000Base-T (PoE+)+ 2x1000Base-X SFP/48~57VDC/管理型 |
| FT9000-L10N482HM-D | 工业级8×10/100/1000Base-T + 4x1000Base-X SFP/12~48VDC/管理型 |
| FT9000-L10N482THM-D | 工业级8×10/100/1000Base-T (PoE+)+ 4x1000Base-X SFP/48~57VDC/管理型 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
