产品特点
- 一根光纤传输1路电脑HD-AHD视频信号
- 支持HDTV最高分辨率1080P
- 10位数字视频编码及无压缩传输技术
- 应用于工业监控、大型场馆等计算机远距离传输的需要……
- 严格选材和质量控制，确保高品质和高可靠性
- 通过电源及其他参数LED指示灯监控系统状态
- 卓越的性价比
- SMT表面贴装技术
- 独立式或机架式
- 功耗更低，免安装、调试
- 远程转播车/卡车视频源
- 广播演播室摄像机馈送
- 长途信号传输
- 电视台/视频会议
- 报告厅投影仪连接
- 医疗/手术室广播
- 构建视频会议通话
- 小型企业校园视频链接

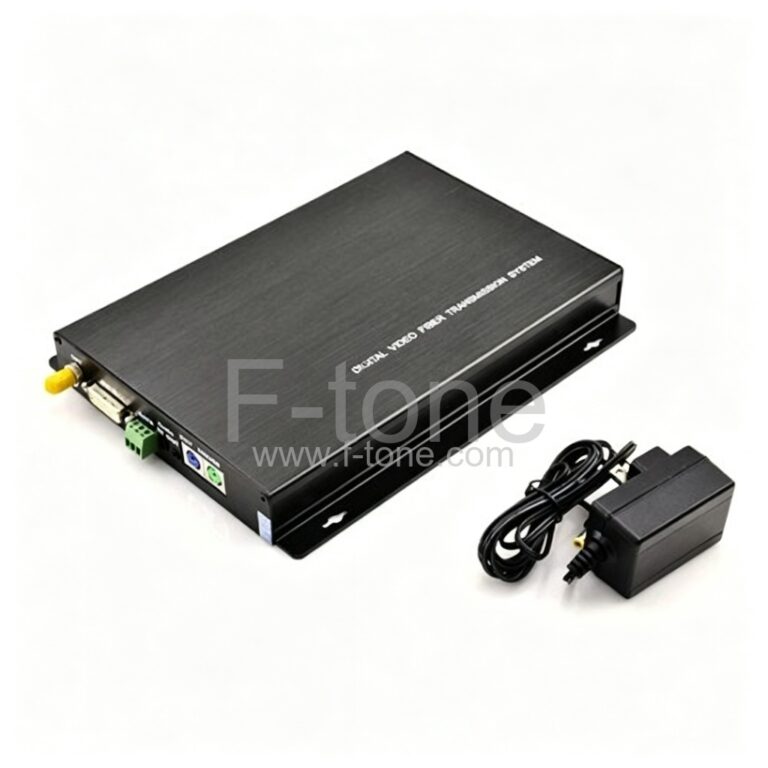

HD-AHD TO光纤转换器可以通过一根多模或单模光纤同时传输1-16路AHD。 永远不需要电子和光学调整。 提供 LED 指示灯，用于即时监控系统状态。 设备可独立安装或机架安装，适合不同的工作环境。 兼容AHD-H、AHD-M、AHD-L。 无损非压缩实时传输。 AHD光纤发射器应与AHD光纤接收器配合使用。 网站上的价格是一对的价格。
| Opitcal | |
| Wavelength | 1310nm&1550nm |
| Output Power | -8~3dBm |
| Optic fiber | 50/125u multimode，62.5/125u multimode，9/125u single mode |
| Rx sensitivity (-3 dB) | -25dBm |
| Optical connector | FC、ST、SC (optional) |
| Distance | 0~550M (MM) /0~20KM (SM) |
| Video | |
| Number of Channels | 1 |
| Input/output impedance | BNC 75Ω (unbalance) |
| Standard video input/output voltage | 1.0Vp-p |
| Video Bandwidth | 45MHz |
| Video Bandwidth | 45MHz |
| Sampling Bandwidth | 10bit |
| Sampling Frequency | 108MHz |
| Rise and Fall time | 4<0.8ns |
| Optical Signal Intrinsic Jitter | <0.2 UI |
| Differential Gain | < ±1.5% |
| Differential Phase | < ±1° |
| Connector | BNC |
| Other | |
| Power | DC5V 2A |
| Power Consumption | ≤6W |
| Temperature | -40ºC ~75ºC |
| Humidity | 10%~90% RH |
| UnitWeight | 1ch/2ch:0.75kg, |
| 4ch/8ch:1.5KG(pair) | |
| Dimension | 1ch/2ch:104mm×104mm×28mm |
| 4ch/8ch:183mm×154mm×30mm | |
| Installation | Wall mount |
| MTBF | ≥ 100000Hours |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
