产品特点
- 工艺：未压缩技术
- 最高分辨率：1920×1080@60
- 传输距离：20km
- 光纤类型：单模单工
- 音频：1路双向立体声音频
- 1路VGA视频信号、1路双向立体声音频、1路键盘鼠标PS2、1路RS232、一根光纤
- 采样时钟相位调整
- 图像亮度调节
- 图像对比度调整
- 10位数字视频编码和非压缩传输技术
- 参数可保存，断电保存
- 随时即插即用，基本无需调整
- 自动识别输入视频格式，接收器输出符合行业标准的视频
- 采用DC-DC电源转换技术，可有效抵抗电源环境干扰
- 4U 机架式、1U 机架式和独立式
- 远程转播车/卡车视频源
- 广播演播室摄像机馈送
- 长途信号传输
- 电视台/视频会议
- 报告厅投影仪连接
- 医疗/手术室广播
- 构建视频会议通话
- 小型企业校园视频链接
- 1U机架支持4个VGA卡。
- 4U机架支持13块VGA卡，双电源
- 4U机架，单电源支持15块VGA卡

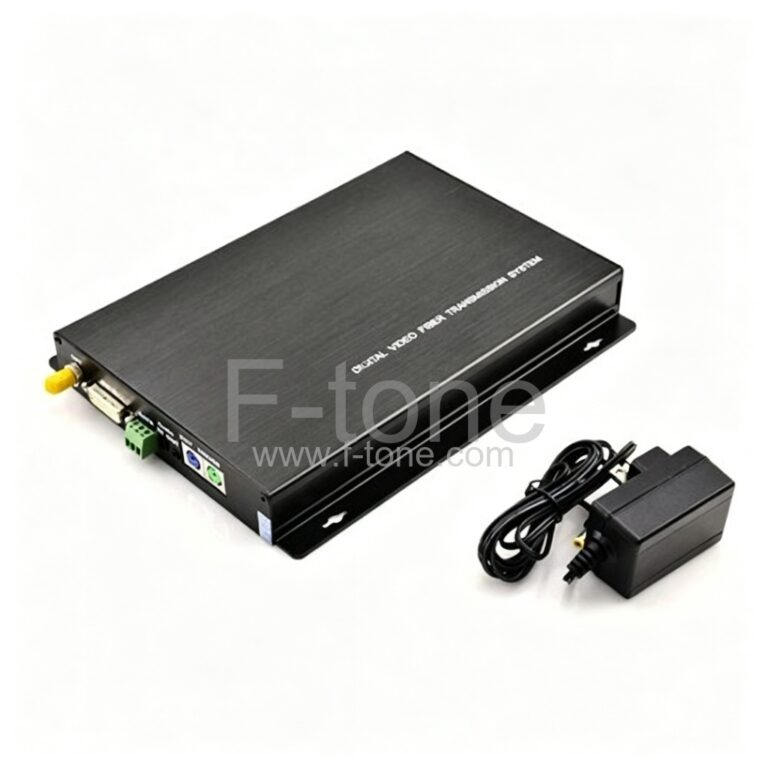

FT3711 通过一根光纤、单模、1310nm 波长以数字方式传输高分辨率 RGB（高达 WXGA）和立体声音频。 点对点、点对多点和重复应用，它支持 VGA、SVGA、XGA 和 WXGA 或 RGBHV 格式。 VGA 光纤发射器需要与 VGA 光纤接收器配合使用。网站上的价格是成对的。
注意： 1. 光纤接口：有FC和ST两种，对于SC/LC连接器，Fiber-Mart将免费为您提供相应的跳线用于连接器转换 2.1U机架式：标准配置为4槽，当部分槽位空时，Fiber-Mart将免费为您提供挡板。
注：我们的标准单模为20KM，多模为2KM，请在下订单时告知我们您的光纤模式和距离。
| Video Interface | Stereo Audio | Fiber Type | Fiber Port | Data Port | Power Supply | Package |
| 1 CH VGA |
1 CH Forward
1 channel reverse 1 channel bidirectional |
Single-mode Simplex |
FC ST SC LC |
1 channel Forward RS485/RS232/RS422
1 channel reverse RS485/RS232/RS422 1 channel bidirectional RS485/RS232/RS422 |
AC110~260V |
stand-alone 1U rack mount |
| VGA/RGBHV Fiber Optic Transmitter and Receiver | |
| FT3711-T/R | 1-ch VGA, single fiber |
| FT3711A-T/R | 1-ch VGA, 1-ch bidirectional audio, 1-ch RS232, single fiber |
| FT3711B-T/R | 1-ch VGA, 1-ch bidirectional audio, 1-ch RS232, single fiber |
| Video | |
| No. | 1-channel |
| Video type | RGB with single and sync H,V |
| Input level | 0.7Vp-p |
| Output level | 0.7Vp-p |
| Bandwidth (-3 dB) | 300MHz |
| Bit width | 10bit |
| Resolution | Max1080P@60Hz |
| Interface | DB-15 |
| Audio | |
| No. of channels | 1-ch bidirectional |
| Input/output level | 5Vp-p,unequilibrium |
| Total harmonic distortion | ≤1% |
| Bandwidth (-3 dB) | 20~20KHz |
| Audio coding | 24bit |
| Input/output impedance | 600Ω or 100KΩ |
| Weighted SNR | ≥90 dB |
| Connector | Standard 3.5 mm stereo headphone jack |
| RS232 indication | |
| Channel | 1-ch duplex |
| Input/output interface? | Terminal block |
| Signal rate | ≥115200bps |
| Signal level | RS232 standard level |
| Optics | |
| Wavelength | 1310nm |
| Fiber optic | Single-mode |
| Max. link loss | 12dB（option） |
| Output optical power | 10dBm |
| Receiver sensitivity | ≥20dBm |
| Data rate | 2.5 |
| Connector | FC (ST option) |
| PS2 | |
| No. | 2 (for keyboard and mouse) |
| Compatibility? | Using PS2 to USB cable, it works fine |
| Power and environmental indication | |
| Freestanding power | 5W |
| Dimension | 237mm * 180mm *28.5mm(high) |
| Power adapter | 220VAC to 12VDC/1A |
| Temperature rage | -40°C to +70°C |
| Relative humidity | < 95% (no condensation) |
工作温度：商业级/工业级/军品级可选
