产品特点
- 透明传输和极低延迟
- 支持ITUT规定的DWDM/CWDM波长
- 支持环回测试功能
- 支持2U机架（16通道）和独立使用
- 全状态LED显示屏
- 管理型机箱电源

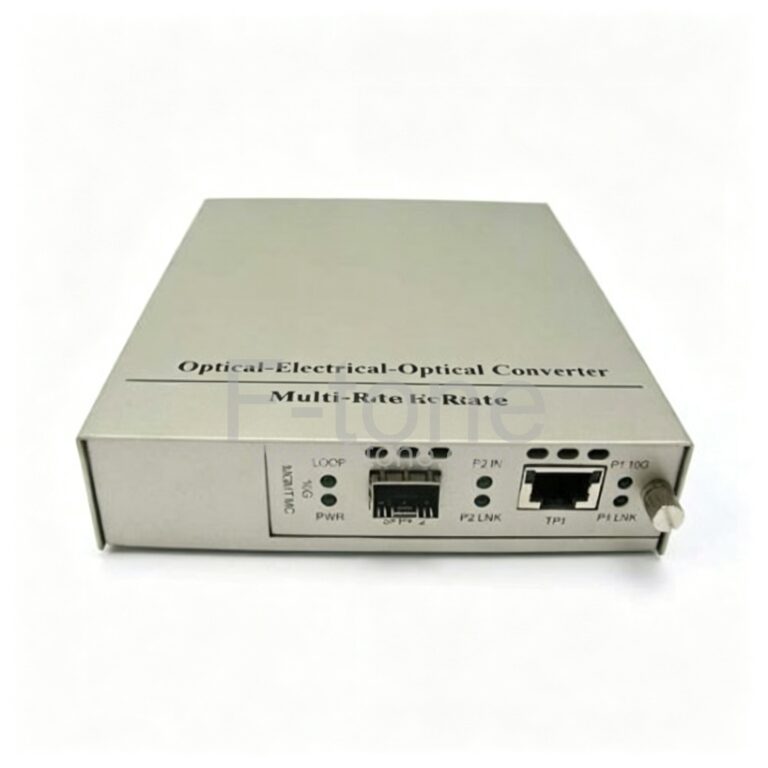

该产品是高性能10G光媒体转换器，采用光-电-电波长转换，实现光信号均衡放大、时钟提取和光再生，并配合波分复用（DWDM/CWDM）技术，可实现光信号在单通道传输。 单根光纤通过单路或多路长距离传输。 基于现有的网络基础设施，可以快速提高通信能力，扩展带宽，同时采用低成本、高性价比的解决方案来管理和运营系统，易于运维。
注：该卡应安装在2U机架式多业务统一平台托管机箱中，集中网络管理启用其远程设备管理功能。
| LED | Colour | Explanation |
| P1 10G | Green | Bright: TP 10G |
| P1 LNK | Green | Bright: TP Link connected |
| Blink: indicates packet goes through | ||
| P2 IN | Green | Bright: SFP+2 or XFP2 module inserted |
| P2 LNK | Green | Bright: SFP+2 or XFP2 connect normally |
| LOOP | Green | Bright: Loopback is on |
| PWR | Green | Bright: Power is On |
| SW1 | ON | Loopback is On |
| OFF | Loopback is Off | |
| SW2 | ON | Remote Control turn off |
| OFF | Remote Control turn on |
| Transmission mode | Technical Indexes |
| Transmission Speed | 10Gb/s |
| Protocols | IEEE802.3an(10Gbase-T) |
| IEEE802.3ae(10Gbase-SR/LR/ER/ZR) | |
| Access Type | 10G LAN |
| Interface Type | RJ45 To/From SFP+ |
| Or | |
| RJ45 To/From XFP | |
| Transmission Distance | SFP+ module: Up to 80Km |
| XFP module: Up to 80Km | |
| 10Gbase-T: 100meters Cat .6a cable | |
| Maximum Packet | 14,880,950/S |
| Forwarding Rate | |
| Power supply specifications and dimensions | AC: 100V~240V 50~60HZ |
| DC: 40V~50V 50~60HZ | |
| power consumption≤6W（without module） | |
| External AC-DC 20W | |
| communication module power | |
| 156mm * 128mm * 32mm |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
