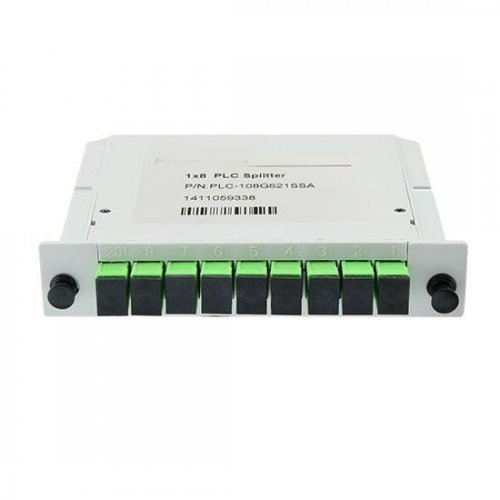

FTTH PLC分路器终端解决方案 光信号如何从OLT通过PLC分路器传输到ONU 了解更多 1/2×N 光纤 PLC 分路器，迷你插入式，单模 PLC（平面光波电路）分路器是单模分路器，从一根输入光纤到多根输出光纤具有均匀的分路比。 它基于平面光波路技术，提供低成本、小尺寸、高可靠性的配光解决方案。 F-tone.CN提供各种1×N和2×N PLC分路器，包括1×2至1×64和2×2至2×64 Mini Plug-in型光纤PLC分路器。 它们都具有优越的光学性能、高稳定性和高可靠性，可以满足各种应用需求。 1/2×N迷你插入式光纤PLC分路器支持SC、LC连接器可供选择。
Good channel-to-channel Uniformity High Polarization Extinction Ratio Low Input Polarization Sensitivity Compact design, Custom and Rugged Packaging Available Telcorida GR-1209/1221 Qualified
Optical Signal DistributionData Communications,LAN and CATV SystemPassive Optical NetworksFTTX Deployment,FTTH NetworkDWDM and CWDM systemsOutside Plant Equipments
按订单生产 注意： 1. 当封装类型为ST时，光纤直径只能为25=250um，连接器只能为NO=无。 2. 当封装类型为MM&FO时，光纤直径只能为900um。 3、封装形式为AB时，光纤直径可选90=900um、20=2.0mm、30=3.00mm。 4、当封装形式为MP、LGX、TR、1U时，“输入输出光纤直径”和“尾纤长度”可以省略，具体产品根据其配置而定。
| Port Configuration | 1/2XN | Fiber Type | G.657A |
| Connector Type | SC/LC in APC/UPC | Operating Wavelength | 1260~1650nm |
| Typical Insertion Loss | — | Max. Insertion Loss | — |
| Max. Loss Uniformity | — | Min. Return Loss | 50dB |
| Max. PDL | — | Min. Directivity | 55dB |
| Max. Wavelength Dependent Loss | 0.3dB | Max. Temperature Dependent Loss(-40~+85°C) | 0.5dB |
| Operating Temperature | -40~+85°C | Storage Temperature | -40~+85°C |
|
Good channel-to-channel Uniformity High Polarization Extinction Ratio Low Input Polarization Sensitivity Compact design, Custom and Rugged Packaging Available Telcorida GR-1209/1221 Qualified |
Optical Signal DistributionData Communications,LAN and CATV SystemPassive Optical NetworksFTTX Deployment,FTTH NetworkDWDM and CWDM systemsOutside Plant Equipments |
| PLC | Port Configutation | Package Style | Fiber Diameter(Input/Output) | Connector(Input/Output) | Pigtail Length |
| PLC=PLC Splitter | 102=1×2 | ST=Steel tube(bare fiber) | 25=250μm | NO=None | 15=1.5m |
| 104=1×4 | MM=Mini module | 90=900μm | SCA=SC/APC | 20=2.0m | |
| 108=1×8 | FO=With fan-out | 20=2.0mm | SCU=SC/UPC | 30=3.0m | |
| 116=1×16 | ABS=Pigtailed ABS box | 30=3.0mm | LCA=LC/APC | XX=Customized | |
| 132=1×32 | MP=Mini plug-in type | LCU=LC/UPC | |||
| 164=1×64 | LGX=Standard LGX | FCA=FC/APC | |||
| 202=2×2 | TR=Mounted on a Fiber Splice Tray | FCU=FC/UPC | |||
| 204=2×4 | 1U=1U 19” rack mount chassis | STA=ST/APC | |||
| 208=2×8 | STU=ST/UPC | ||||
| 216=2×16 | X=Customized | ||||
| 232=2×32 | |||||
| 264=2×64 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
