产品描述

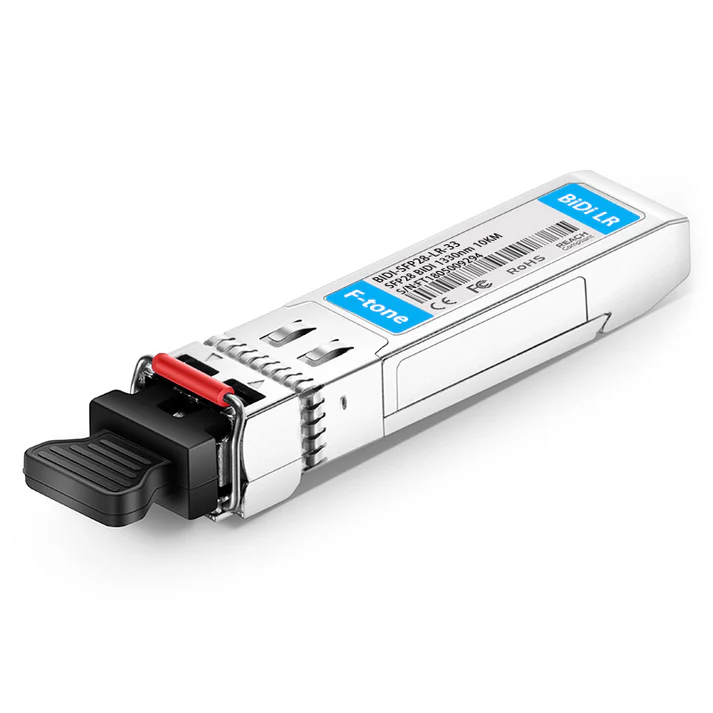

F-tone’s FTS8BxxB53xDL10 single-mode transceiver is SFP28 module for duplex optical data communications support up to 25. 78Gb/s. It is with the SFP+ 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. It has built-in clock and data recovery (CDR). This module is designed for single-mode fiber and operates at a nominal wavelength of 1270 / 1330nm.
工作温度：商业级/工业级/军品级可选
技术参数
| 参数 | 指标 |
| 封装 | SFP28 |
| 传输速率 | 25G |
| 波长 | 1270/1330nm |
| 光器件 | DFB/PIN |
| 发光范围 | -5~+2dBm |
| 收端灵敏度 | -13.3dBm |
| 接口 | LC |
| 工作温度范围 | 商业级/工业级/军品级可选 |
| 传输距离 | 10KM |
| 多速率兼容 | Y |
| 中国事业部 |
应用范围
- 25GE Ethernet
- CPRI/eCPRI
