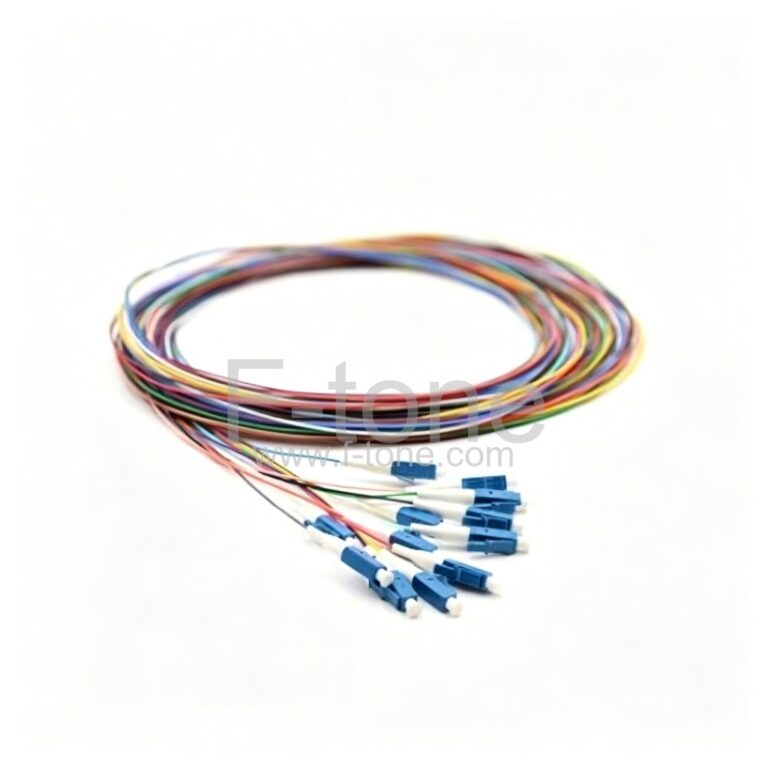

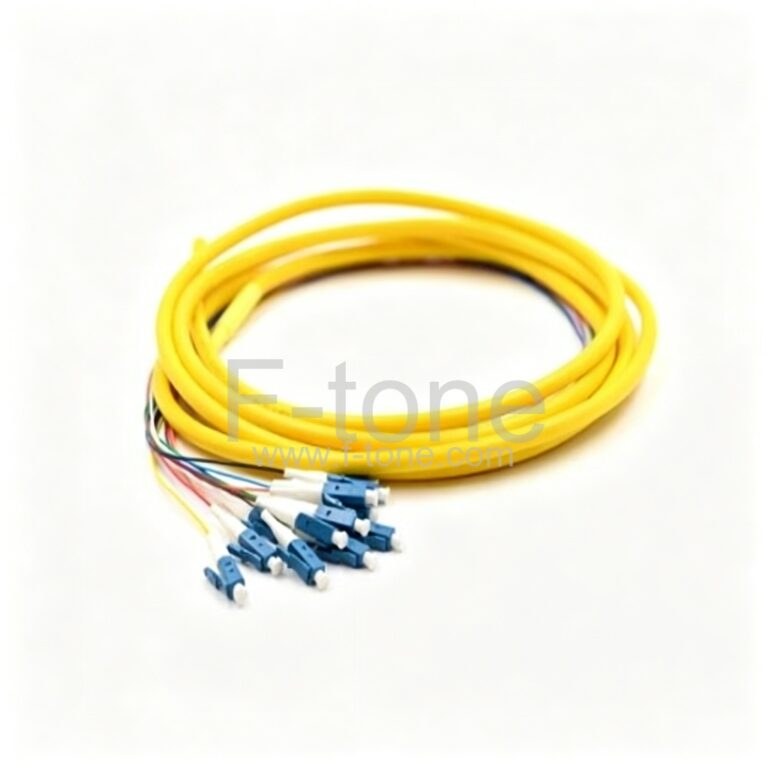

光纤尾纤是光纤外壳内部熔接的绝佳解决方案。 带状扇型分支光纤尾纤配有部分外护套，有助于保护紧缓冲光纤免受损坏。 如果空间有限，则可以轻松去除外护套，使尾纤具有更小的弯曲半径并占用更少的空间。
低插入损耗、低背反射损耗灵活且易于剥离光纤缓冲在所有照明条件下可识别光纤缓冲颜色减少安装时间避免因可能的光纤翻转而导致错误接线
数据中心、驻地设施电信网络局域网 (LAN) 广域网 (WAN) 室内应用
尾纤光缆提供了一种在现场进行工厂端接的快速方法。
Fiber-MART.COM支持12包彩色尾纤的定制服务，如光纤类型、光纤连接器、尾纤长度、包装等。联系 sales@F-tone.cn 获取合适的彩色尾纤。
这种易于携带且保护良好的光纤尾纤袋包装、吸塑包装或卷装均已默认由 Fiber-MART.COM 贴有标签和标记。
| Connector A | LC | Connector B | Unterminated |
| Fiber Category | Single-mode (OS2) | Jacket Color | Yelow |
| Cable Diameter | 0.9mm | Jacket Material | PVC |
| Fiber Count | 12 | Polish | UPC |
| Wavelength | 1310nm and 1550nm | Durability | >1000 Times |
| Insertion loss | 0.3dB | Interchangeability | 0.2dB |
| Return loss | 50dB | Vibration | 0.2dB |
| Operating temperature | -40~75C | Storage temperature | -45~85C |
|
低插入损耗、低背反射损耗灵活且易于剥离光纤缓冲在所有照明条件下可识别光纤缓冲颜色减少安装时间避免因可能的光纤翻转而导致错误接线 |
数据中心、驻地设施电信网络局域网 (LAN) 广域网 (WAN) 室内应用 |
工作温度：商业级/工业级/军品级可选
