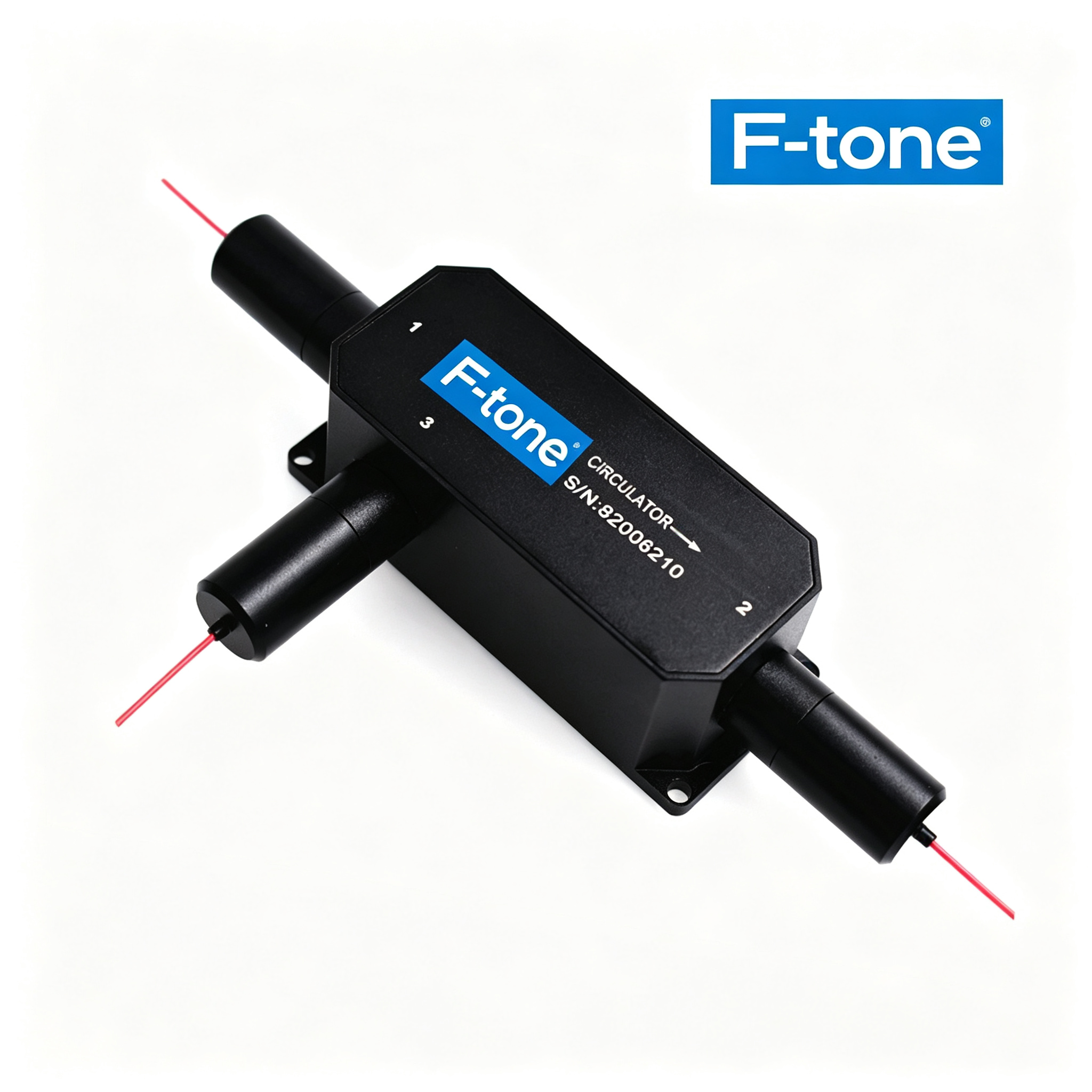

780nm High Power Optical Circulator |
||||
|
|
||||
|
|
|
|||
|
Features |
Applications |
|||
|
Low Insertion Loss |
Fiber Laser |
|||
|
High Return Loss |
Testing Instrument |
|||
|
High Stability & Reliability |
Medical Equipment |
|||
|
|
|
|||
|
Specifications |
||||
|
Parameters |
Unit |
Value |
||
|
Center Wavelength |
nm |
780 |
||
|
Operating Wavelength Range |
nm |
±5 |
||
|
Typ. Peak Isolation |
dB |
23 |
||
|
Min. Isolation at 23℃ |
dB |
20 |
||
|
Typ. Insertion Loss at 23℃ |
dB |
1.2 |
||
|
Max. Insertion Loss at 23℃ |
dB |
1.5 |
||
|
Min. Extinction Ratio at 23℃ (PM Fiber Type) |
dB |
18 |
||
|
Max. Polarization Dependent Loss at 23℃ (SM Fiber Type) |
dB |
0.15 |
||
|
Min. Return Loss at 23℃ (Input/ Output) |
dB |
45 |
||
|
Min. Cross Talk |
dB |
45 |
||
|
Max. Optical Power (Including Port1 & Port2) |
W |
1, 2 or Specified |
||
|
Max. Peak Power for ns Pulse |
kW |
10 or Specified |
||
|
Max. Tensile Load |
N |
5 |
||
|
Package Dimension |
mm |
70x28x26 |
||
|
Operating Temperature |
℃ |
+10~+50 |
||
|
Storage Temperature |
℃ |
0~+60 |
||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
|
||||
|
Ordering Information |
||||
|
HPMCIR-111-23-444-56-7-888-99AA (PM Fiber Type) / HPICIR-111-23-444-56-7-888-99AA (SM Fiber Type) |
||||
|
111 – Wavelength: |
780=780nm, SSS=Specified |
|||
|
2 – Port Type: |
3=3-Port |
|||
|
3 – Working Axis: |
B=Both axis working, F=Fast axis blocked, N=Non-PM |
|||
|
444 – Fiber Type: |
007=780-HP, 067=PM780-HP, SSS=Specified |
|||
|
5 – Package Dimensions: |
0=70x28x26mm, S=Specified |
|||
|
6 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
|||
|
7 – Fiber Length: |
0.8=0.8m, 1.0=1m, S=Specified |
|||
|
888 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
|||
|
99 – Average Power: |
01=1W, 02=2W, SS=Specified |
|||
|
AA – Peak Power: |
00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, 20=20kW, SS=Specified |
|||
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
