产品特点
- 宽广的工作频段
- 高通道隔离度
- 高稳定性和可靠性
- 纤维直径：0.9mm
- 连接器：FC/UPC
- 掺铒光纤放大器
- 波分复用系统

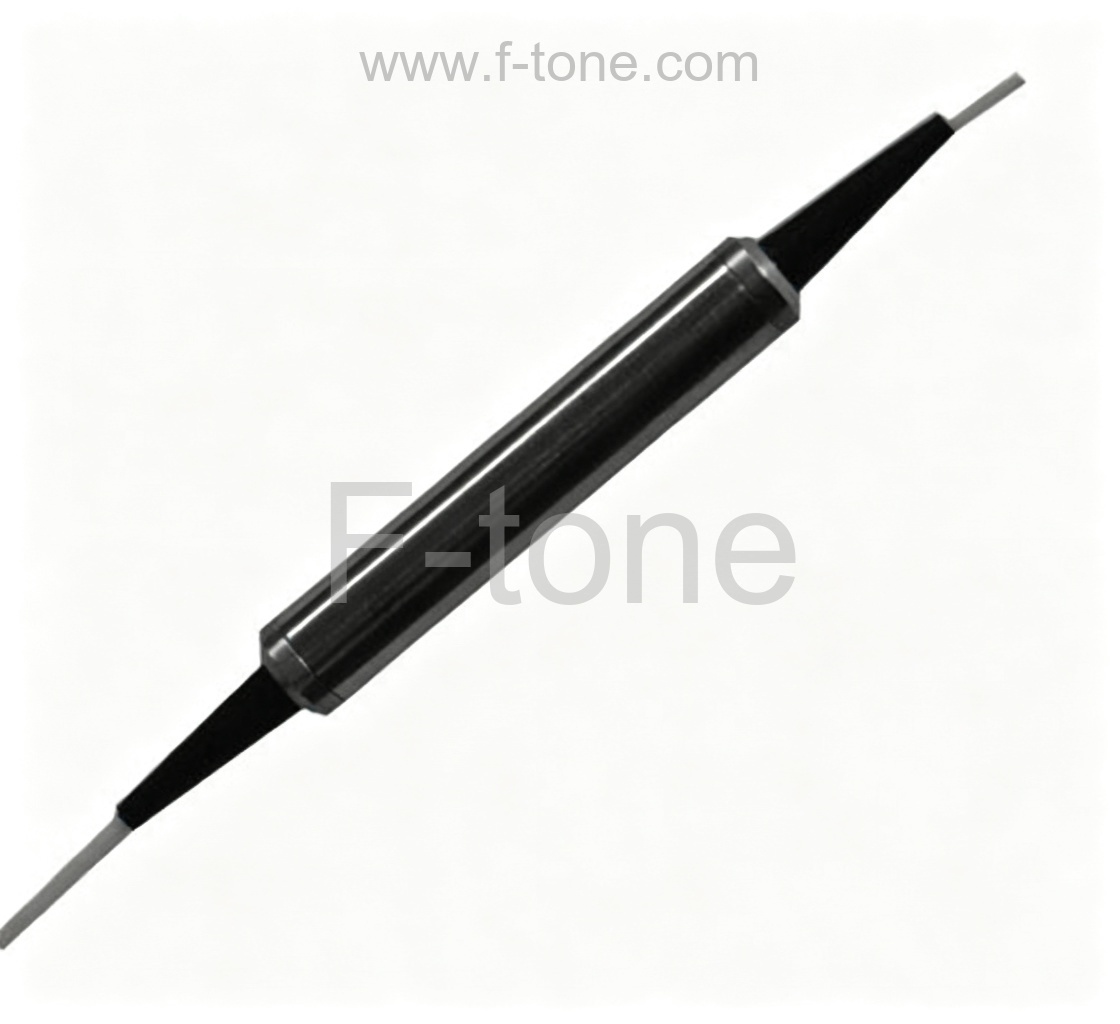

滤光片是一种用于波长选择的仪器，可以从大量波长中选择出所需的波长，并剔除附加波长。 光带通滤波器可用于波长选择、光放大器的噪声滤波器、增益均衡、光复用/解复用等。 我们的光纤带通滤波器 (BPF) WDM FTTX 1550nm FT-FWDM-1550-BPF 基于成熟的薄膜滤波器技术。 这种光学带通滤波器BPF广泛应用于需要平坦且宽工作频带的光纤通信系统和EDFA。
BPF-1*1-T1550±20
Operating wavelength (nm)
Transmission band wavelength (nm)
Reflection band wavelength (nm)
1460～1515&1585~1620
Transmission insertion loss (dB)
Transmission channel isolation
@ 1460～1515&1585~1620 (dB)
Channel flatness (dB)
Wavelength thermal stability (nm/℃)
Insertion loss thermal stability (dB/℃)
Operating temperature (℃)
Storage temperature (℃)
*The above specification is without connector.
**Other specifications can be made on customer request.
|
Parameter |
BPF-1*1-T1550±20 |
|
Operating wavelength (nm) |
1460～1620 |
|
Transmission band wavelength (nm) |
1550±20 |
|
Reflection band wavelength (nm) |
1460～1515&1585~1620 |
|
Transmission insertion loss (dB) |
≤0.6 |
|
Transmission channel isolation |
≥20 |
|
@ 1460～1515&1585~1620 (dB) |
|
|
Channel flatness (dB) |
≤0.3 |
|
Return loss (dB) |
≥50 |
|
PDL (dB) |
≤0.1 |
|
Wavelength thermal stability (nm/℃) |
≤0.003 |
|
Insertion loss thermal stability (dB/℃) |
≤0.005 |
|
Power handling (mW) |
≤500 |
|
Operating temperature (℃) |
-5 ~ +70 |
|
Storage temperature (℃) |
-40 ~ +85 |
|
Fiber Type |
SMF-28e |
|
*The above specification is without connector. |
|
|
**Other specifications can be made on customer request. |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
