SFP 155Mbps 光模块 BXCS-1303-20Dxx
SFP 155Mbps 光模块 BXCS-1303-20Dxx 产品图
产品介绍
SFP SingleMode DUAL Fiber Transceiver
- 产品型号：BXCS-1303-20Dxx
- 产品名称：SFP 155Mbps 光模块
- 品牌：北亿纤通 / F-tone Networks
- 工作温度：商业级/工业级/军品级可选
产品规格
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
|---|---|---|---|---|---|---|
| Center Wavelength | C | 1261 | 1310 | 1360 | nm | |
| Spectral Width | | – | – | 4 | nm | – |
| Average Optical Output Power | Po | -15 | – | -3 | dBm | 20KM |
| Extinction Ratio | ER | 8.2 | – | – | dB | – |
| Optical Rise/Fall Time(20%-80%) | Tr/Tf | – | – | 2.8 | ns | – |
| Output Eye Diagram | Compliant with ITU-T G.957 | |||||

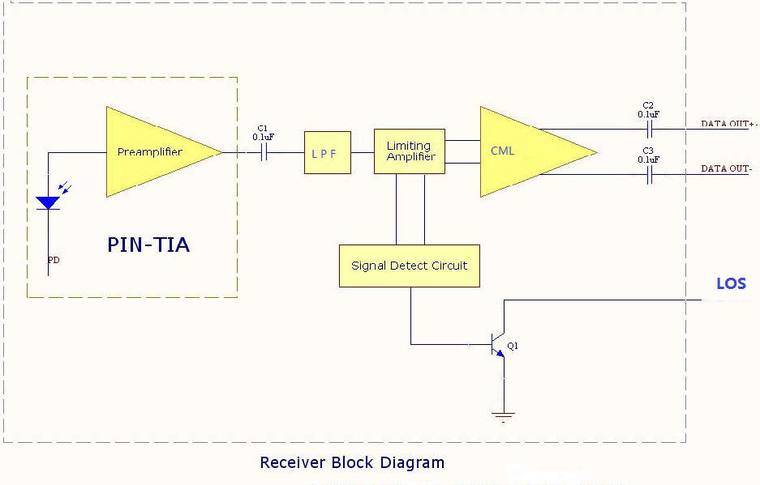

| Receiver | ||||||
| Parameter | Symbol | Min | Typ | Max | Unit | Note |
| Operate Wavelength | – | 1100 | 1310 | 1600 | nm | |
| Receiver Sensitivity | RSENS | – | – | -32 | dBm | 1 |
| Receiver Saturation | PRS | -3 | – | – | dBm | 1 |
| LOS Assert | – | -48 | – | – | dBm | Assert: High-level |
| LOS De-Assert | – | – | – | -34 | dBm | |
| LOS Hysteresis | – | 0.5 | – | 5 | dBm | – |
| Symbol | Min | Max | Unit | |
|---|---|---|---|---|
| Tst | -40 | +85 | °C | |
| TO | BXCS-1303-20D | 0 | +70 | °C |
| BXCS-1303-20DE | -20 | +85 | °C | |
| BXCS-1303-20DI | -40 | +85 | °C | |
| – | GND | VCC | V | |
| VCC-VEE | 0 | +3.6 | V |
| Symbol | Min | Typ | Max | Unit | |
|---|---|---|---|---|---|
| Tst | -40 | – | +85 | °C | |
| TC | BXCS-1303-20D | 0 | – | +70 | °C |
| BXCS-1303-20DE | -20 | – | +85 | °C | |
| BXCS-1303-20DI | -40 | – | +85 | °C | |
| VCC | 3.1 | 3.3 | 3.5 | V | |
| ICC | – | – | 300 | mA | |
| DR | – | 155 | 200 | Mbps |
产品特点
- 工作温度：商业级/工业级/军品级可选
- 符合 RoHS 环保标准，支持 OEM/ODM 定制
- 传输速率：155Mbps
- 封装形态：SFP
- Uncooled Laser Diode with MQW Structure
- InGaAs PIN-TIA Photodiode Receiver
- 9/125μm SMF
- DUAL Single Mode Transceive r SFP Footprin t
- LC Or SC Optical Interface Are Optional
- Compliant With SFP MSA and SFF-8472
应用领域
- 光通信传输系统
- 数据中心 / 机房互连
- 5G 前传与承载网
- 工业以太网与电力通信
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
