产品特点

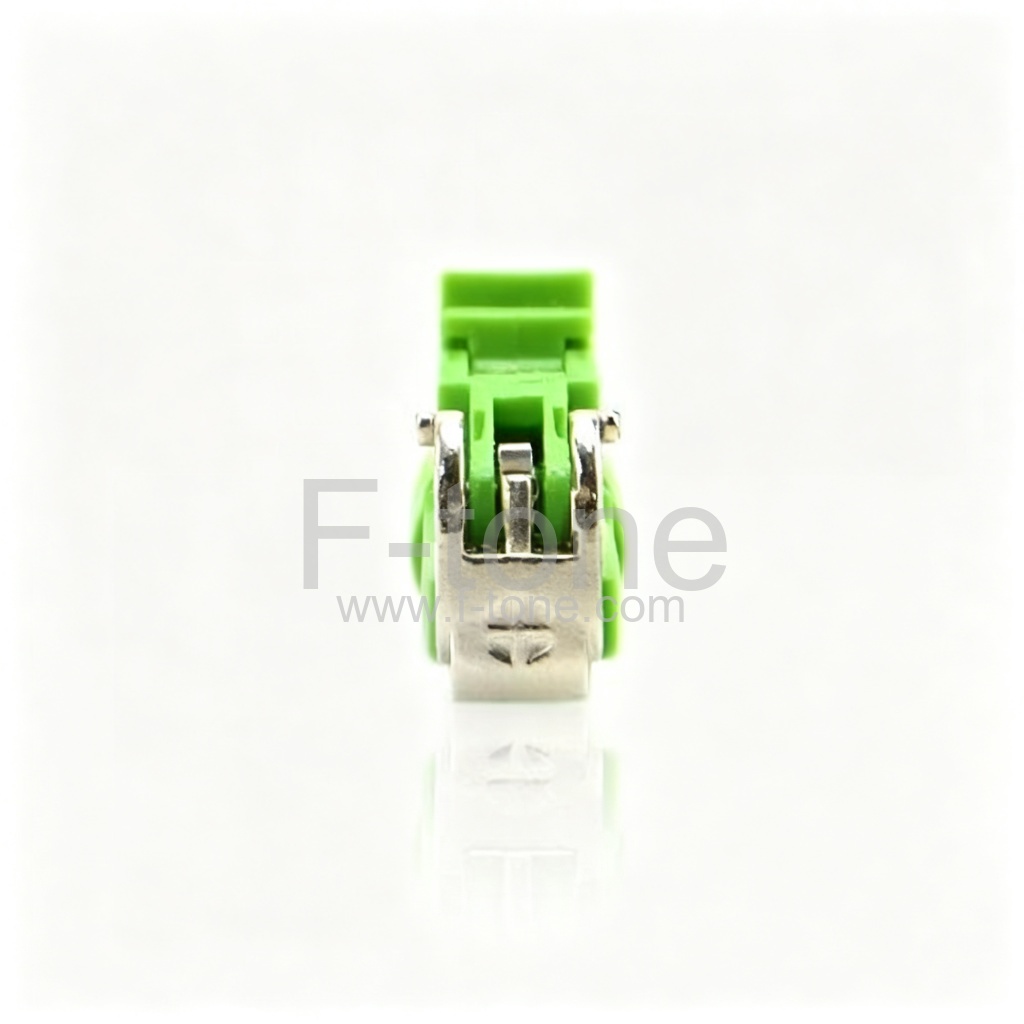

- E2000/APC – E2000/APC 连接器
- 单模单芯光纤跳线
- 配有橙色 OFNR 级Riser/护套
- 我们所有的光纤跳线均配备高等级连接器
- 100% 光学测试，确保高性能
- 微米：9/125um
- 颜色: 黄色
光纤跳线也称为光纤跳线或光纤跳线。光纤LC跳线是光纤网络中最常用的组件之一。 多模中“模式”的定义是指光纤光在光缆芯中的传输模式。 单模光纤跳线一次发送一个光信号，并且比多模可以使用更长的距离，因为它们具有更强的抗衰减能力。 单模光缆的纤芯为9/125μ（微米）。 单模光纤跳线可支持长达 10 公里的千兆位以太网应用。
注： 北亿纤通光纤是一家专业的光缆制造商和供应商。 这里提供任何定制服务。 如果您对上述规格表中的单模光纤跳线有任何特殊要求，请发送电子邮件至 sales@F-tone.cn 或致电 +86-01-86-2786-1199。北亿纤通光纤将 尽力为您的特殊要求制定出具有成本效益的解决方案。
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | 1310,1550 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
