产品介绍

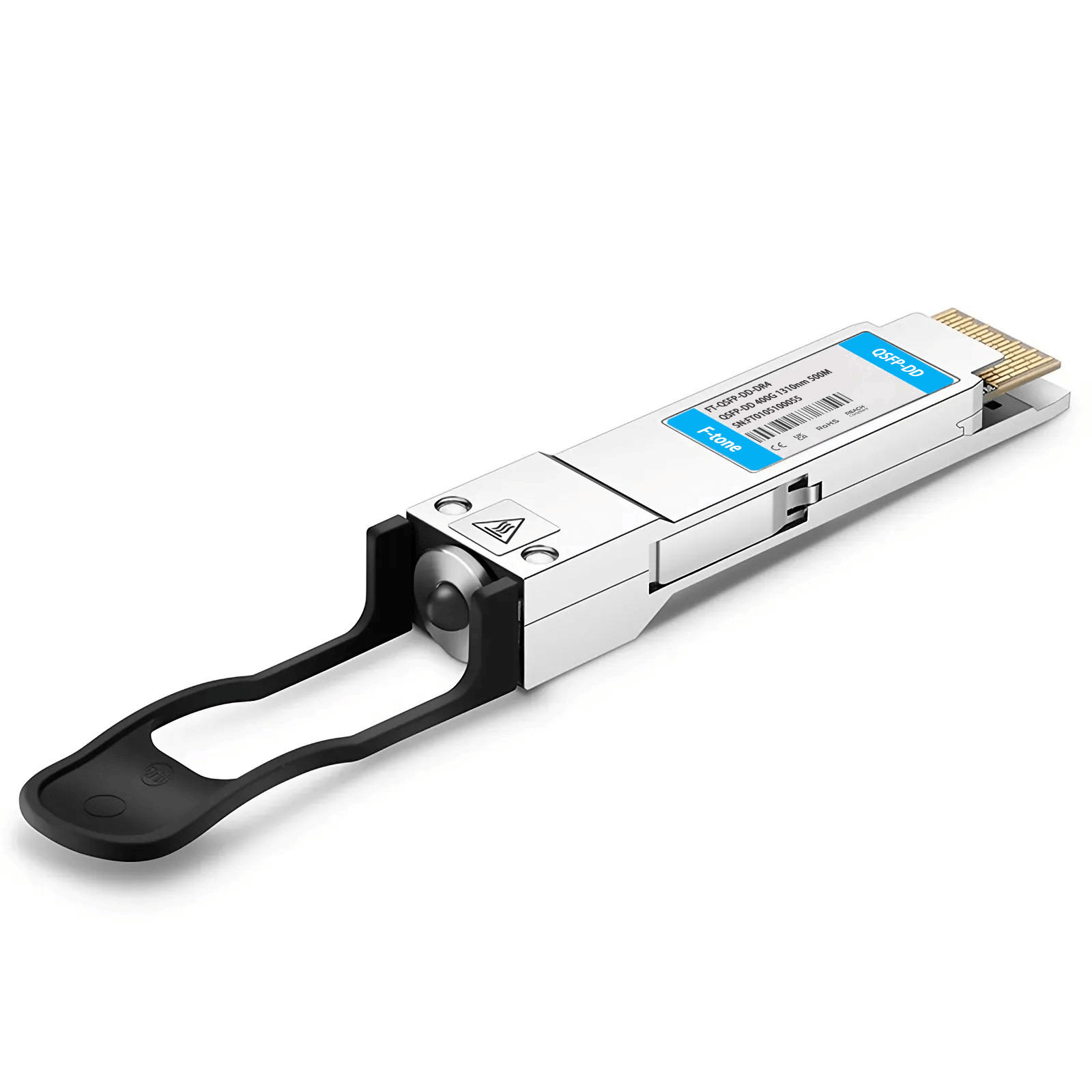

400G QSFP-DD DR4 PAM4 1310nm MPO Optical Transceiver，采用QSFP-DD封装，400G速率，MPO接口，0.5km传输距离，支持数字诊断监控（DDM），符合 RoHS-10 标准，全金属外壳设计，适用于数据中心、超级计算中心、5G 承载网、OTN/PTN 及光交换等应用场景。
产品特性
- 400G QSFP-DD DR4 PAM4 1310nm MPO Optical Transceiver
- Supports425Gb/s SR8
- 8x50G PAM4VCSELPIN photo detector
- Upto500m transmission,1310nm
- HotPluggable QSFP-DD form factor
- 8×53.125Gb/swith PAM4 electrical interface(400GAUI-8)
- SupportDigital Diagnostic Monitoring interface
- MPO-12Two Row receptacle
- RoHs-10compliantandlead-free
- ComplianttoQSFP-DD Rev 4.0
- Single+3.3V power supply
- Maximumpower consumption12W
- All-metal housingfor superior EMI performance
- Caseoperationtemperature: 0℃to+ 70℃/-40℃to +85℃
订购信息
| ProductNumber | DataRate(Gb/s) | Wavelength(nm) | Reach(km) | LD | TxPower(dBm) | PD | RxSens(dBm) | Temperature(℃) |
|---|---|---|---|---|---|---|---|---|
| FTQ-400G-DR4 | 400 | 1310nm | 0.5 | EML | -2.9~4.0 | PIN | <-5.9 | 0~70 |
| FTQ-400G-DR4-I | 400 | 1310nm | 0.5 | EML | -2.9~4.0 | PIN | <-5.9 | -40~85 |
工作温度：商业级/工业级/军品级可选（商业级 0℃～+70℃ / 工业级 -40℃～+85℃ / 军品级 -55℃～+125℃）
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
