FT108GS-2F是一款工业全千兆管理型以太网交换机，8*10/100/1000Mbps FJ45端口+2*千兆SFP端口+1*Console口

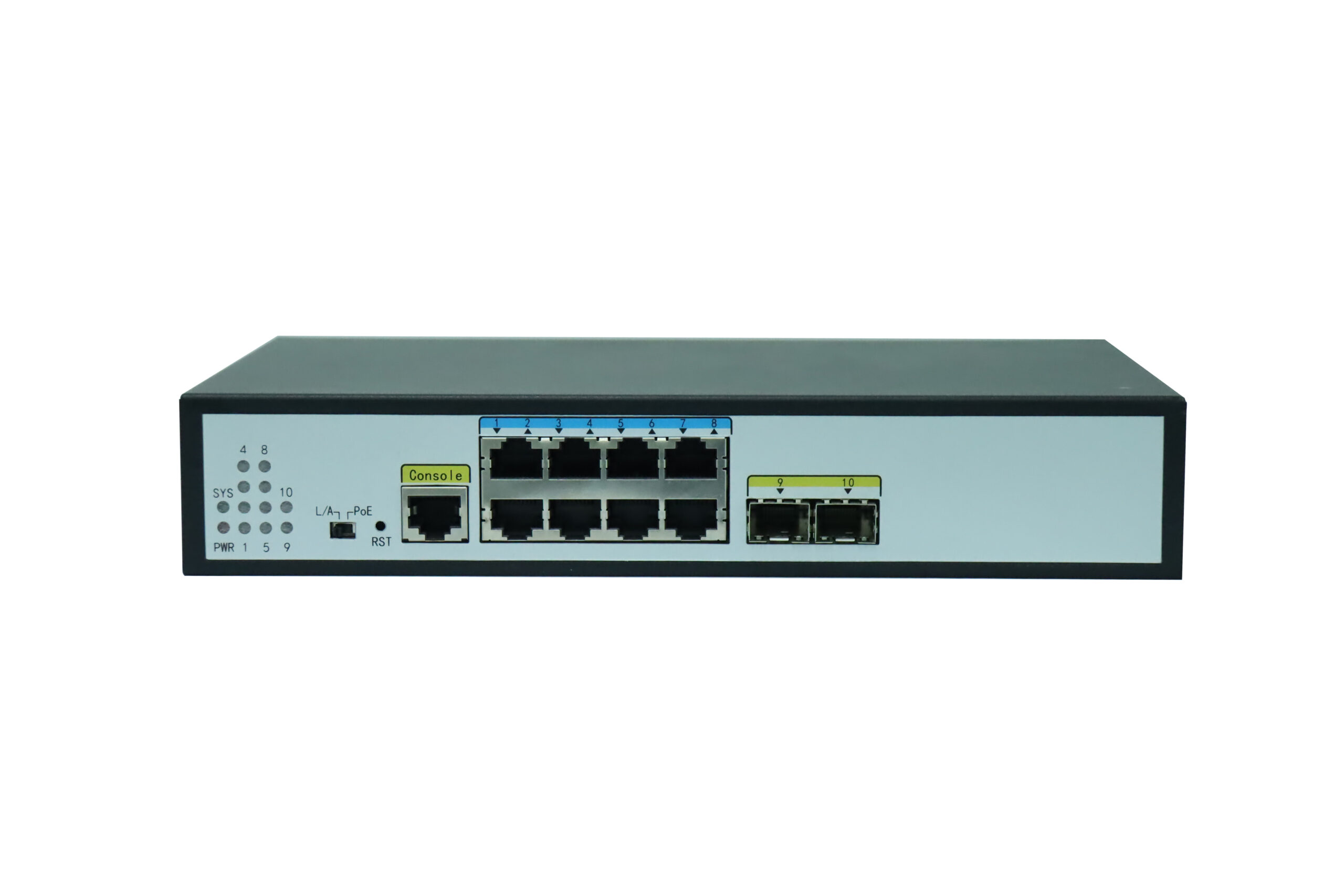

10口2光8电以太网千兆工业级交换机
FT108GS-2F
产品特点
FT108GS-2F是一款工业全千兆管理型以太网交换机，8*10/100/1000Mbps FJ45端口+2*千兆SFP端口+1*Console口
产品详情
|
产品型号 |
FT108GS-2F
|
|
网络接口 |
l8个10/100/1000M FJ45端口 l2个千兆SFP端口 l1个Console口
|
|
性能规范 |
lMAC地址表：8k l背板带宽：20Gbps l包转发率：14.9Mpps l转发模式：存储转发
|
|
电源支持 |
l电压输入：48-56V DC l输入方式：插拔式5芯5.08mm 间距接线端子
|
|
LED指示灯 |
l电源指示灯：P1,P2 l系统指示灯：SYS l告警指示灯：ALM l网口指示灯：Link&Act1-8 l光口指示灯：Link&Act F1-F2
|
|
环境规范 |
l工作温度：-40-75℃ l存储湿度：-40-85℃ l相对湿度：5%-95%（非冷凝）
|
|
网络协议 |
lIEEE802.3、IEEE802.3i、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3ad、IEEE802.3x、IEEE802.3af/at、IEEE802.3p、IEEE802.3q、IEEE802.3w、IEEE802.3d、IEEE802.3s
|
|
经营 |
l2L+
|
|
防静电 |
l±8kV(contact),±15kV (air)
|
|
尺寸（W*D*H） |
l163*46.5*110mm
|
技术参数
|
VLAN |
|
|
组播管理 |
|
|
安全管理 |
|
|
网络管理 |
|
应用搭配
本产品为 北亿纤通 | F-tone Networks FT-81系列产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
