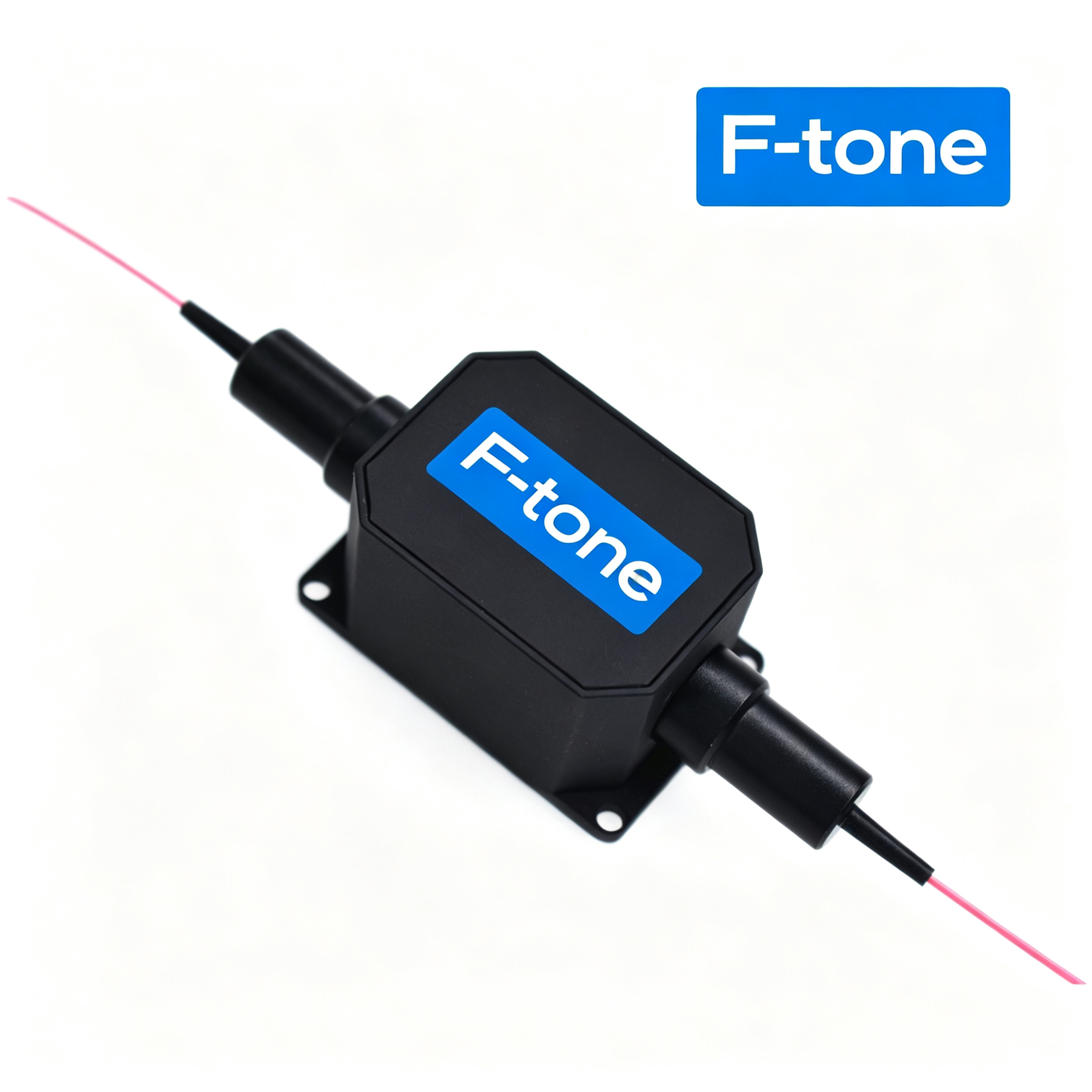

High Power Multi-mode Pump Laser Protector |
||||
|
|
|
|||
|
Features |
Applications |
|||
|
Low Insertion Loss |
EDFA |
|||
|
High Return Loss |
Pump Laser |
|||
|
High Reliability & Stability |
Q-Switched Laser |
|||
|
|
|
|||
|
Specifications |
||||
|
Parameters |
Unit |
Values |
||
|
Pass Band Wavelength Range |
nm |
980 |
||
|
Max.Insertion Loss over Pass Band Wavelength |
dB |
0.7 |
||
|
Blocked Band Wavelength Range |
nm |
1550 |
||
|
Min. Isolation at 23℃ (@Blocked Band Wavelength Range) |
dB |
25 |
||
|
Max. Polarization Dependent Loss at 23℃ |
dB |
0.15 |
||
|
Min. Return Loss |
dB |
30 |
||
|
Max. Power Handling (CW) |
W |
0.5, 1, 2, 5, 10, 20 or Specify |
||
|
Max. Pulsed Power |
kW |
10 or Specify |
||
|
Max. Wavelength Thermal Stability |
nm/℃ |
0.003 |
||
|
Max. Insertion Loss Thermal Stability |
dB/℃ |
0.005 |
||
|
Operating Temperature |
℃ |
0~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis. |
||||
|
Ordering Information |
||||
|
MMPLP-1111-222-34-5-66-7788 |
||||
|
1111 – Wavelength: |
9855=980nm pass/1550nm blocked |
|||
|
222 – Fiber Type: |
009=MM-S105/125-22A, SSS=Specify |
|||
|
3 – Package Dimension: |
0=φ5.5x35mm, 1=70x12x8mm, 2=100x15x10mm, S=Specify |
|||
|
4 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
|||
|
5 – Fiber Length: |
0.75=0.75m,1.0=1m, S=Specify |
|||
|
66 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
|||
|
77 – Average Power: |
00=500mW, 01=1W, 05=5W, ……, 20=20W, SS=Specify |
|||
|
88 – Peak Power: |
00=Continuous Wave, 10=10kW, 20=20kW |
|||
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
