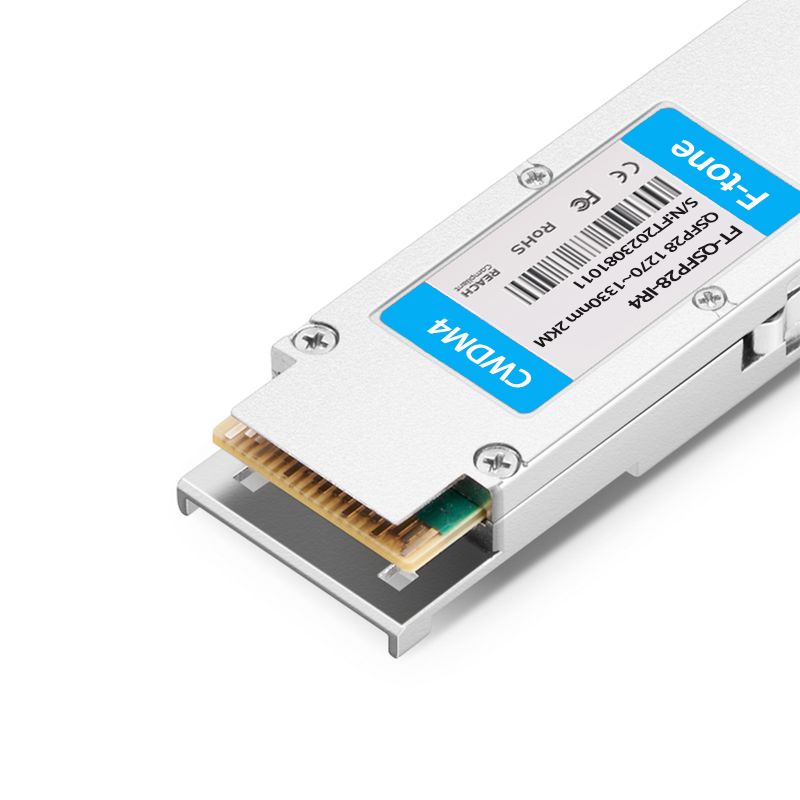

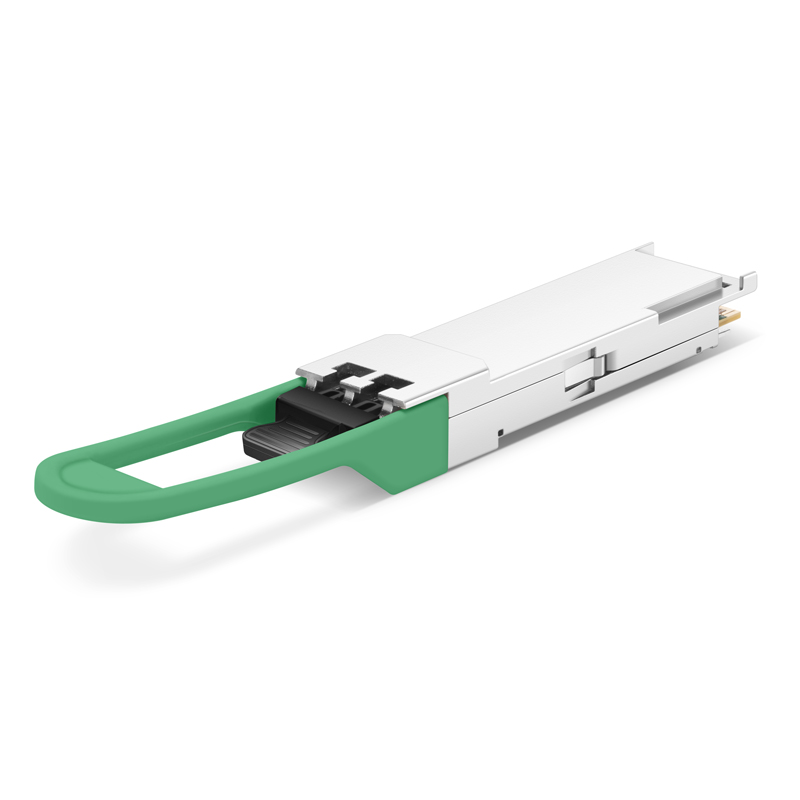

QSFP28-100G-IR4 — F-tone QSFP28-100G-IR4 Transceiver is a single mode, 4-channel (CWDM4), QSFP28, optical module designed for use in 100 Gigabit Ethernet with LC duplex connector.
产品详情
| 产品参数 — F-tone | |||
| F-tone型号 | QSFP28-100G-IR4 | 制造商名称 | F-tone |
| 封装 | QSFP28 | 传输速率 | 103.1Gbps |
| 波长 | 1271nm, 1291nm 1311nm, 1331nm | 最远传输距离 | 2km |
| 接口类型 | 双工 LC | 发射激光器类型 | CWDM DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | PIN |
| 发射光功率 | -6.5~+2.5dBm | 接收灵敏度 | < -11.5dBm |
| 协议 | 100G Ethernet, MSA Compliant | 工作温度 | 商业级/工业级/军品级可选 |
| F-tone型号 | QSFP28-100G-IR4 | 制造商名称 | F-tone |
| 封装 | QSFP28 | 传输速率 | 103.1Gbps |
| 波长 | 1271nm, 1291nm 1311nm, 1331nm |
最远传输距离 | 2km |
| 接口类型 | 双工 LC | 发射激光器类型 | CWDM DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | PIN |
| 发射光功率 | -6.5~+2.5dBm | 接收灵敏度 | < -11.5dBm |
| 协议 | 100G Ethernet, MSA Compliant | 工作温度 | 商业级/工业级/军品级可选 |
v Single +3.3V power supply

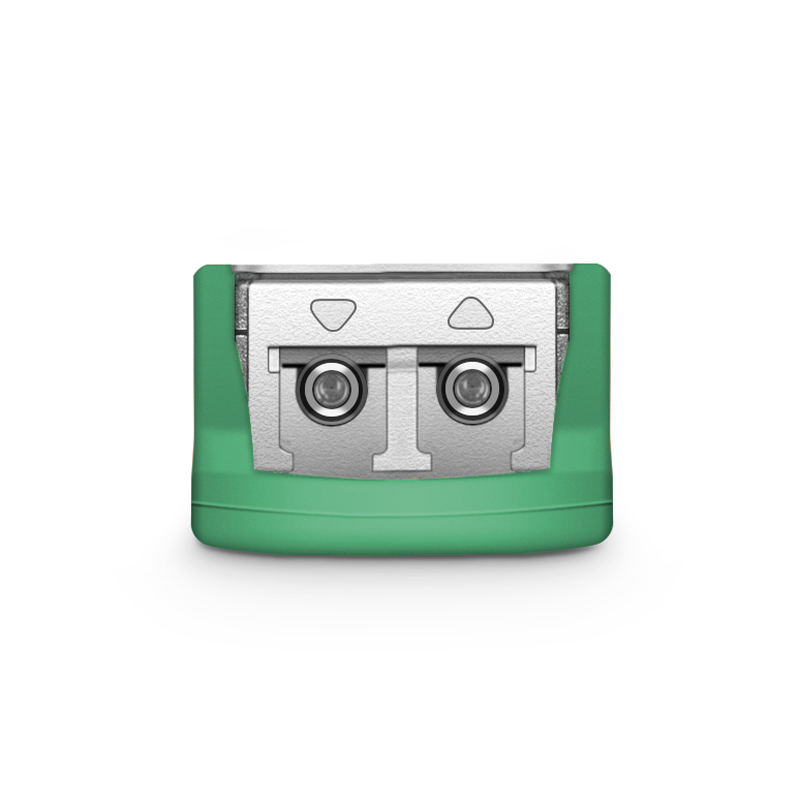

v QSFP28 MSA package with duplex LC connector
v Supports103.1Gb/s, each lane bit rate 25.78 Gb/s
v 4 CWDM lanes MUX/DEMUX design
v Up to 2km transmission on single mode fiber (SMF) with FEC
v CWDM DFB laser and PIN receiver
v Maximum power consumption 3.5W
v Supports Data Center Interconnect, 100GBASE-SR4 100G Ethernet, Infiniband QDR, and DDR interconnects
100G QSFP28 CWDM4 Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 2km LC DDM)
The 100G QSFP28 CWDM4 transceiver modules are designed for 100 Gb Ethernet links over single-mode fiber up to 2 km. It complies with the 1000GBASE CWDM4 MSA standard. The module converts 25Gb/s electrical data from 4 input channels (ch) into 4 CWDM optical signals and multiplexes them into a single channel for 100Gb/s optical transmission. The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311, and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2.
Quality Assurance
Quality Certification
our advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding(EEPROM Programming)
- Testing system
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
