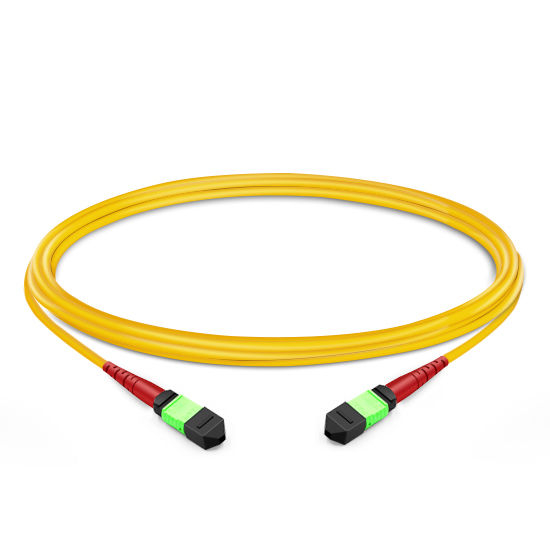

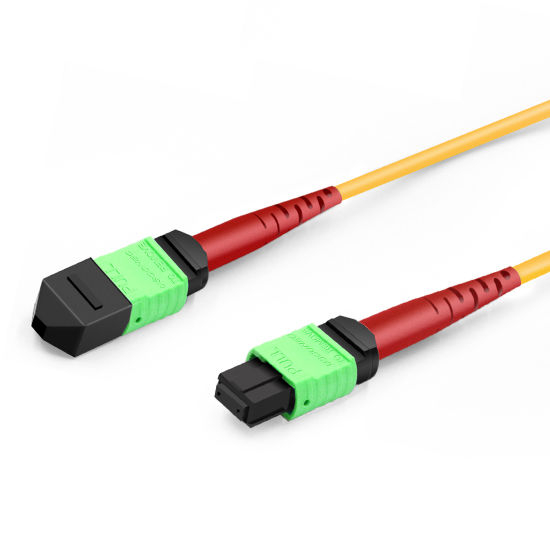

2m (7ft) 24 Fibers Female to Female Elite MTP Trunk Cable Polarity A Plenum (OFNP) OS2 9/125 Single Mode for 100G CPAK LR Connectivity

24 Fibers Elite MTP Patch Cable 2m, utilizing Polarity A and OS2 9/125 single-mode fiber, female-to-female connectivity, and ideal for 100G CPAK LR connectivity.

产品详情

产品参数 — F-tone
Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
光纤类型	OS2 9/125μm Single Mode	波长	1310/1550nm
Fiber Count	24 Fibers	Distance	2m (7ft)
玻璃纤维	Corning ClearCurve®	电缆护套	全会 (OFNP)
抛光型	APC to APC	最小弯曲半径	10mm
插入损耗	0.35dB Max (0.15dB Typ.)	回波损耗	≥60dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
电缆直径	3.0mm	Fiber Color	Yellow
安装拉伸载荷	100 N	长期拉伸载荷	50 N
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

Connector A	MTP Female (US Conec)	Connector B	MTP Female (US Conec)
光纤类型	OS2 9/125μm Single Mode	波长	1310/1550nm
Fiber Count	24 Fibers	Distance	2m (7ft)
玻璃纤维	Corning ClearCurve®	电缆护套	全会 (OFNP)
抛光型	APC to APC	最小弯曲半径	10mm
插入损耗	0.35dB Max (0.15dB Typ.)	回波损耗	≥60dB
Attenuation at 1310nm	≤0.32 dB/km	Attenuation at 1550nm	≤0.18 dB/km
电缆直径	3.0mm	Fiber Color	Yellow
安装拉伸载荷	100 N	长期拉伸载荷	50 N
工作温度	商业级/工业级/军品级可选	存储温度	-40°C to +85°C

24 Fibers OS2 Single Mode Fiber Elite MTP Patch Cable 2M (MTP to MTP Cable)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

Fiber Count

8 fibers

MTP-LC Harness Cables

12 fibers

MTP Trunk Cables / MTP-LC Harness Cables

24 fibers

MTP Trunk Cables

Fiber Type

: OM3 50/125 MMF; Corning ClearCurve Multimode Fiber

: OM4 50/125 MMF; Corning ClearCurve Multimode Fiber

: OS2 9/125 SMF; Corning SMF-28 Ultra Optical Fiber

Gender Type

: MTP Male With Pins

: MTP Female Without Pins

Polarity Type

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
