Name: 分支光缆 5m
Brand: F-tone Networks

8 Fibers MPO to LC Breakout Cable 5m Offers Low Insertion Loss, Type B Configuration, LSZH Jacket Multimode OM4 50/125, and High-Quality Solution for Data Centers.

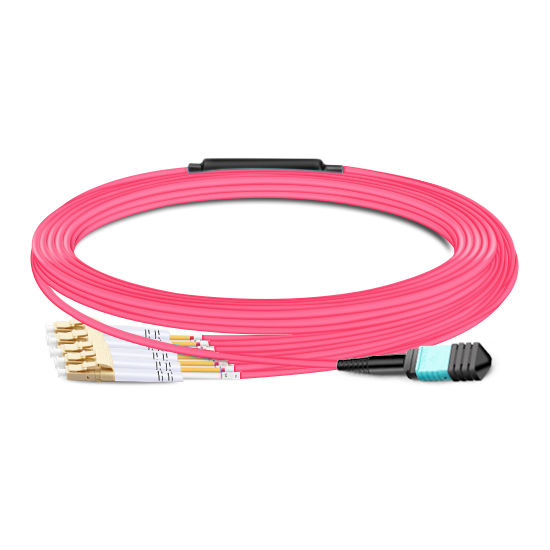

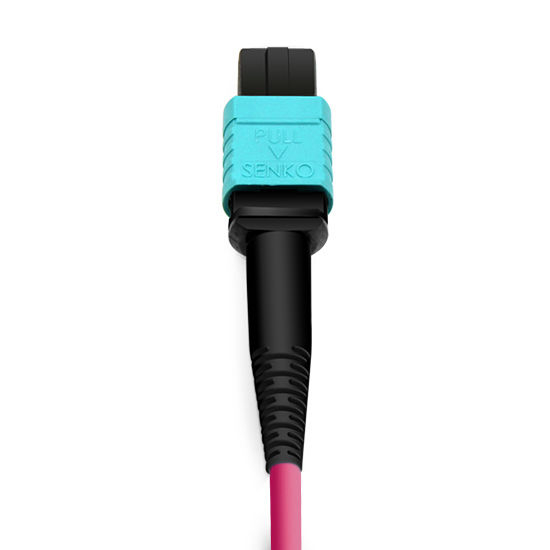

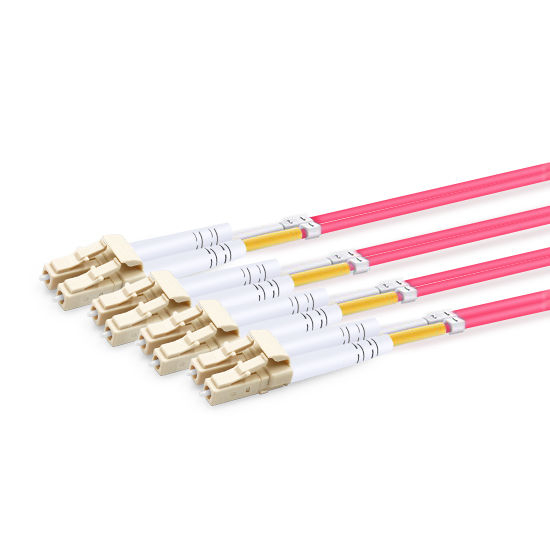

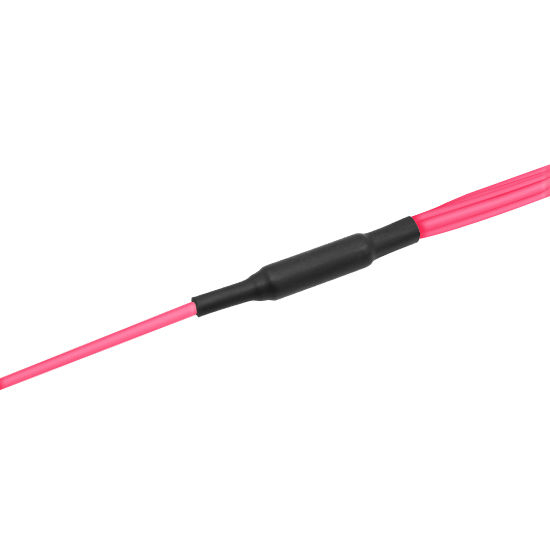

5m (16ft) Low Insertion Loss MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode Fiber Breakout Cable, 8 Fibers Type B, Elite, LSZH, Aqua/Violet

产品详情

产品参数 — F-tone
Connector A	MPO Female	Connector B	LC UPC Duplex
光纤类型	OM4 50/125μm Multimode	波长	850/1300nm
Fiber Count	8 Fibers	Distance	5m (16ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
MPO Connector IL	0.35dB Max (0.15dB Typ.)	LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB	LC Connector RL	≥20dB
850nm 处的衰减	≤2.3 dB/km	1300nm 处的衰减	≤0.6 dB/km
电缆直径	3.0mm	Fiber Color	Aqua/Violet
扇出直径	2.0mm	最小弯曲半径	7.5mm
安装拉伸载荷	100 N	长期拉伸载荷	50 N
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

Connector A	MPO Female	Connector B	LC UPC Duplex
光纤类型	OM4 50/125μm Multimode	波长	850/1300nm
Fiber Count	8 Fibers	Distance	5m (16ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
MPO Connector IL	0.35dB Max (0.15dB Typ.)	LC Connector IL	≤0.2dB
MPO Connector RL	≥20dB	LC Connector RL	≥20dB
850nm 处的衰减	≤2.3 dB/km	1300nm 处的衰减	≤0.6 dB/km
电缆直径	3.0mm	Fiber Color	Aqua/Violet
扇出直径	2.0mm	最小弯曲半径	7.5mm
安装拉伸载荷	100 N	长期拉伸载荷	50 N
工作温度	商业级/工业级/军品级可选	存储温度	-40°C to +85°C

8 Fibers MPO to LC Breakout Cable, 5M (Multimode OM4 50/125 MPO Fanout Cable)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

5m (16ft) Low Insertion Loss MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

5m (16ft) Low Insertion Loss MPO Female to 4 LC UPC Duplex OM4 50/125 Multimode

Fiber Count

8 fibers

MPO-LC Harness Cables

12 fibers

MPO Trunk Cables / MPO-LC Harness Cables

24 fibers

MPO Trunk Cables

Fiber Type

: OM3 50/125 MMF; Corning ClearCurve Multimode Fiber

: OM4 50/125 MMF; Corning ClearCurve Multimode Fiber

: OS2 9/125 SMF; Corning SMF-28 Ultra Optical Fiber

Gender Type

: MPO Male With Pins

: MPO Female Without Pins

Assembly Structure Schematic Diagram

: 8 Fibers MPO-LC Harness Cables

: 12 Fibers MPO-LC Harness Cables

: 24 Fibers MPO-LC Harness Cables

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
