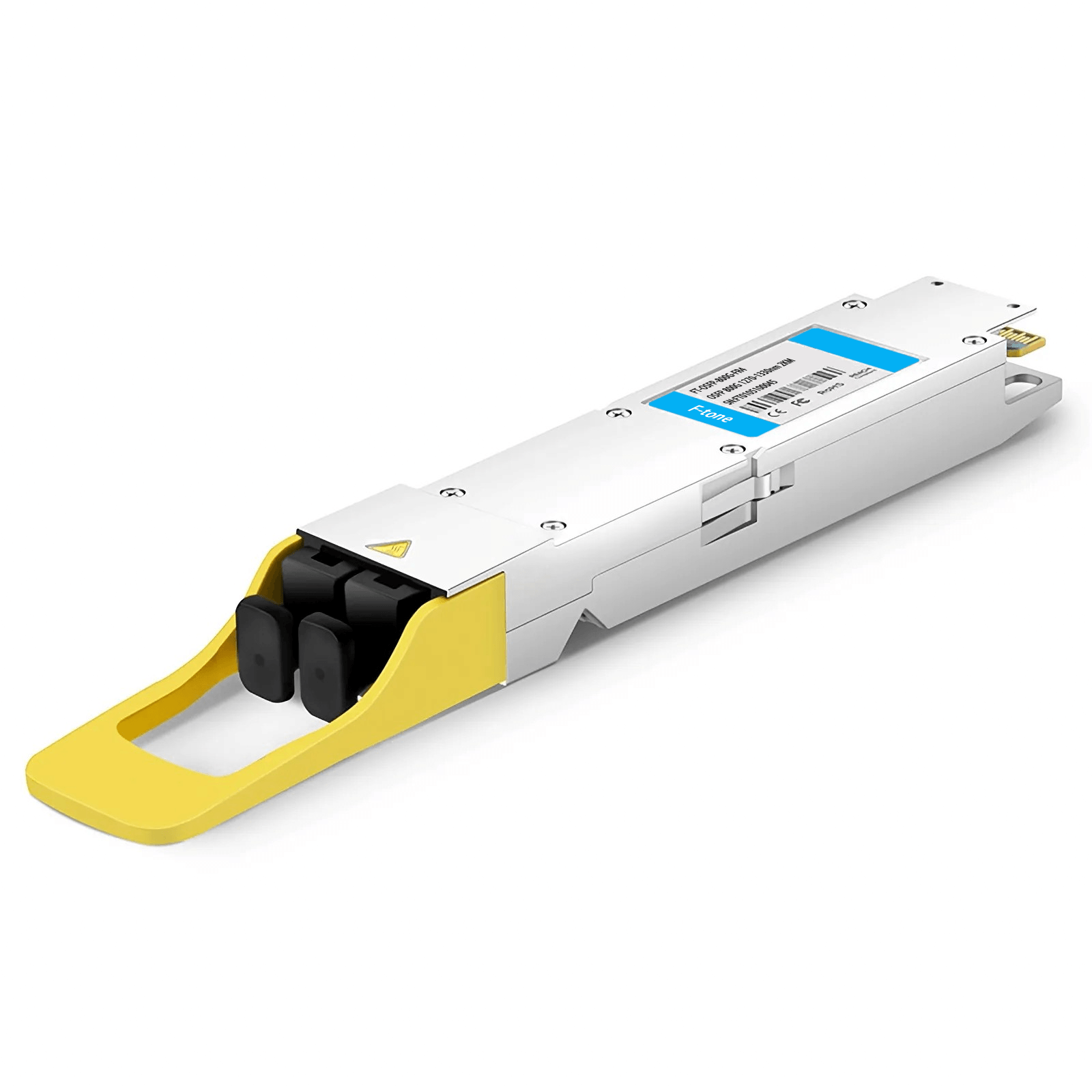

OSFP-800G-FR8L OSFP 800G FR8 PAM4 CWDM8 Duplex LC 2km SMF Optical Transceiver Module

OSFP-800G-FR8L — F-tone OSFP-800G-FR8L OSFP 800G FR8 Transceiver supports a 2km transmission distance over SMF with eight CWDM lanes MUX/DEMUX design for 800G Ethernet.

产品详情

产品参数 — F-tone
F-tone型号	OSFP-800G-FR8L	制造商名称	F-tone
封装	OSFP	传输速率	850Gbps(8x 106.25Gbps)
波长	1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm	最远传输距离	2km
调制技术	PAM4	设备要求	FEC
接口类型	双工 LC	电压	3.3V
线缆类型	单模(SMF)	是否支持DDM	Yes
发射激光器类型	CWDM EML	光接收器件类型	PIN
发射光功率	-3.3~+3.5dBm	接收灵敏度	< -7.7dBm
工作温度	商业级/工业级/军品级可选	最大功耗	< 10.5W
协议	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	应用	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

F-tone型号	OSFP-800G-FR8L	制造商名称	F-tone
封装	OSFP	传输速率	850Gbps(8x 106.25Gbps)
波长	1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm	最远传输距离	2km
调制技术	PAM4	设备要求	FEC
接口类型	双工 LC	电压	3.3V
线缆类型	单模(SMF)	是否支持DDM	Yes
发射激光器类型	CWDM EML	光接收器件类型	PIN
发射光功率	-3.3~+3.5dBm	接收灵敏度	< -7.7dBm
工作温度	商业级/工业级/军品级可选	最大功耗	< 10.5W
协议	CMIS Rev 5.0, IEEE P802.3ck and IEEE 802.3cu	应用	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

OSFP-800G-FR8L OSFP 800G FR8 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm, 1351nm, 1371nm, 1391nm, 1411nm Duplex LC SMF 2km DDM)

OSFP 800G FR8 optical transceiver is based on its mature and scalable silicon photonics platform for high-capacity short-distance transmission up to 2 km over single-mode fiber. The product complies with IEE802.3ck and OSFP MSA standards and supports CMIS4.0.

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
