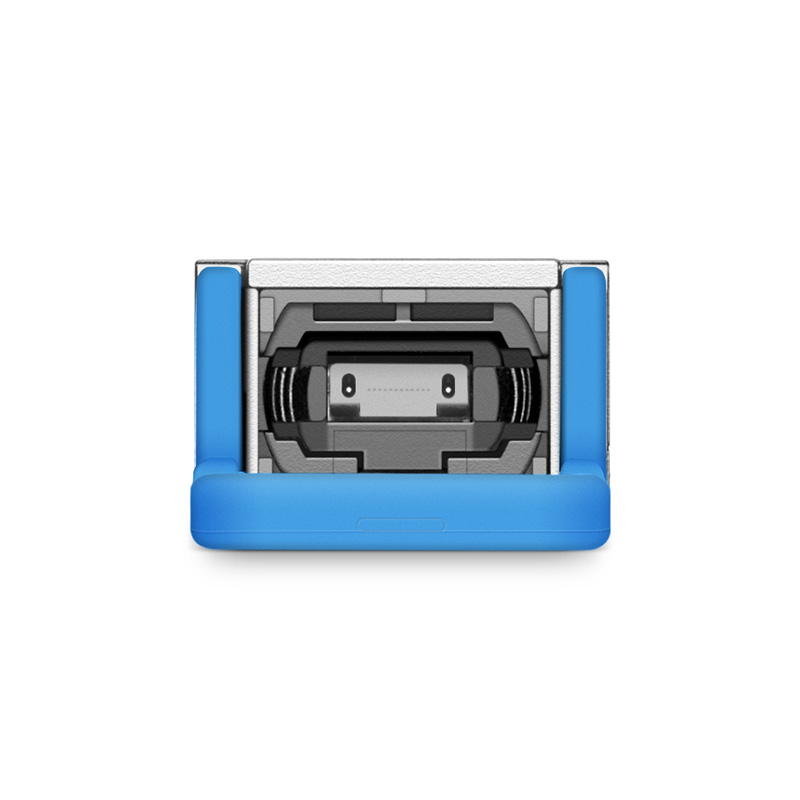

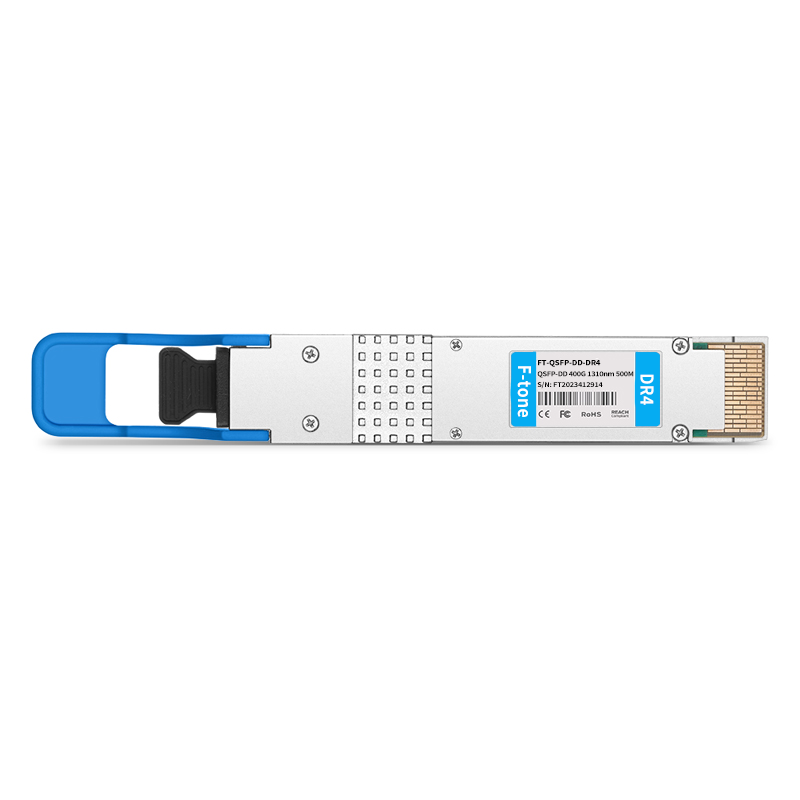

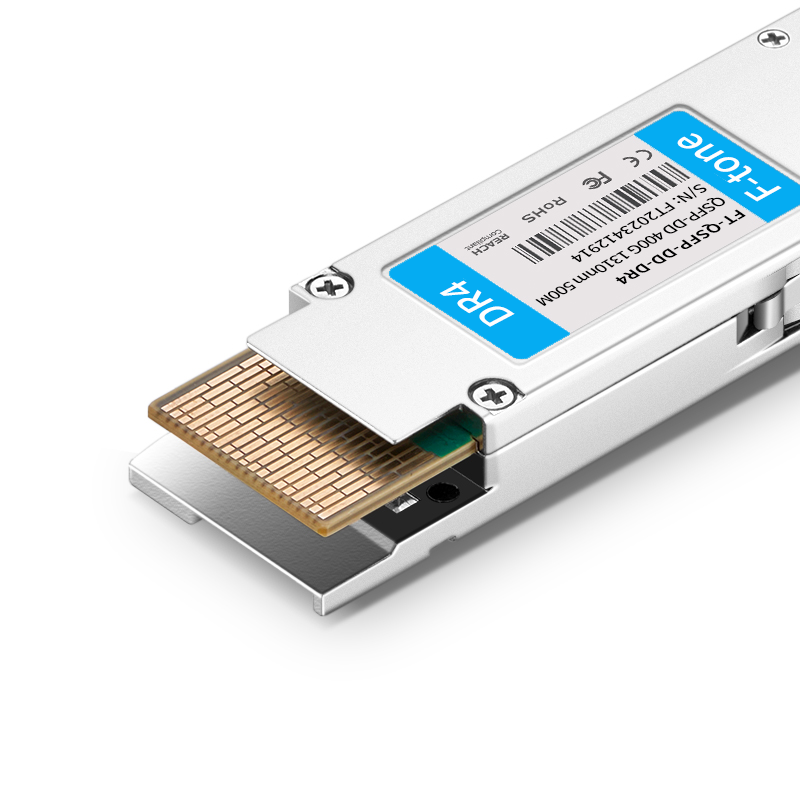

QSFP-DD-800G-DR4 800G QSFP-DD800 DR4 (200G per line) 1311nm 500M Dual MPO-12 SMF Transceivers

QSFP-DD-800G-DR4 — F-tone QSFP-DD-800G-DR4 800G-DR4 QSFP-DD Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over SMF with MPO-12 connectors.

产品详情

产品参数 — F-tone
F-tone型号	QSFP-DD-800G-DR4	制造商名称	F-tone
封装	QSFP-DD	传输速率	4x200G, 800GbE
波长	1311nm	最远传输距离	500m
调制技术	PAM4	设备要求	FEC
接口类型	MTP/MPO-12	电压	3.3V
线缆类型	单模(SMF)	是否支持DDM	Yes
发射激光器类型	EML	光接收器件类型	PIN
发射光功率	-2.9~+4.0dBm	接收灵敏度	< -5.9dBm
工作温度	商业级/工业级/军品级可选	最大功耗	< 16W
协议	IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0	应用	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

F-tone型号	QSFP-DD-800G-DR4	制造商名称	F-tone
封装	QSFP-DD	传输速率	4x200G, 800GbE
波长	1311nm	最远传输距离	500m
调制技术	PAM4	设备要求	FEC
接口类型	MTP/MPO-12	电压	3.3V
线缆类型	单模(SMF)	是否支持DDM	Yes
发射激光器类型	EML	光接收器件类型	PIN
发射光功率	-2.9~+4.0dBm	接收灵敏度	< -5.9dBm
工作温度	商业级/工业级/军品级可选	最大功耗	< 16W
协议	IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0	应用	800G Ethernet, Data Center Interconnect, Infiniband Interconnects

QSFP-DD-800G-DR4 800G-DR4 QSFP-DD Optical Transceiver Module (SMF, 1311nmnm, 500m, Dual MPO-12, DDM)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
