Juniper — Juniper QDD-2X100G-CWDM4 Compatible 2x 100G QSFP28-DD CWDM4 Optical Transceiver supports digital diagnostic functions with SC connectors, which is how pluggable.
产品详情
| 产品参数 — F-tone | |||
| Juniper Networks Compatible | QDD-2X100G-CWDM4 | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 212.5Gbps |
| 波长 | 1271nm, 1291nm, 1311nm, 1331nm | 最远传输距离 | 2km |
| 接口类型 | Duplex CS | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 8 x CWDM – Uncooled DFB Laser | 光接收器件类型 | PIN |
| 发射光功率 | Each Lane | 接收灵敏度 | < -11.5dBm |
| 工作温度 | 商业级/工业级/军品级可选 | 最大功耗 | < 7W |
| 协议 | IEEE 802.3bm/100G CWDM4 MSA, QSFP-DD MSA Type 2 | 应用 | 100G Ethernet |
| Juniper Networks Compatible | QDD-2X100G-CWDM4 | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 212.5Gbps |
| 波长 | 1271nm, 1291nm, 1311nm, 1331nm | 最远传输距离 | 2km |
| 接口类型 | Duplex CS | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 8 x CWDM – Uncooled DFB Laser | 光接收器件类型 | PIN |
| 发射光功率 | Each Lane | 接收灵敏度 | < -11.5dBm |
| 工作温度 | 商业级/工业级/军品级可选 | 最大功耗 | < 7W |
| 协议 | IEEE 802.3bm/100G CWDM4 MSA, QSFP-DD MSA Type 2 |
应用 | 100G Ethernet |
v Hot-pluggable QSFP-DD form factor
v 8 x CWDM – Uncooled DFB Laser (1271/1291/1311/1331nm)
v 3.3V power supply
v Contain Clock Data Recovery (CDR) – Clock and Data Recovery
v Power consumption < 7W
v Compliant with QSFP-DD MSA Type 2
v Compliant with IEEE 802.3bm/100G-CWDM4 MSA Specification
v Compliant with RoHS, UL & TUV

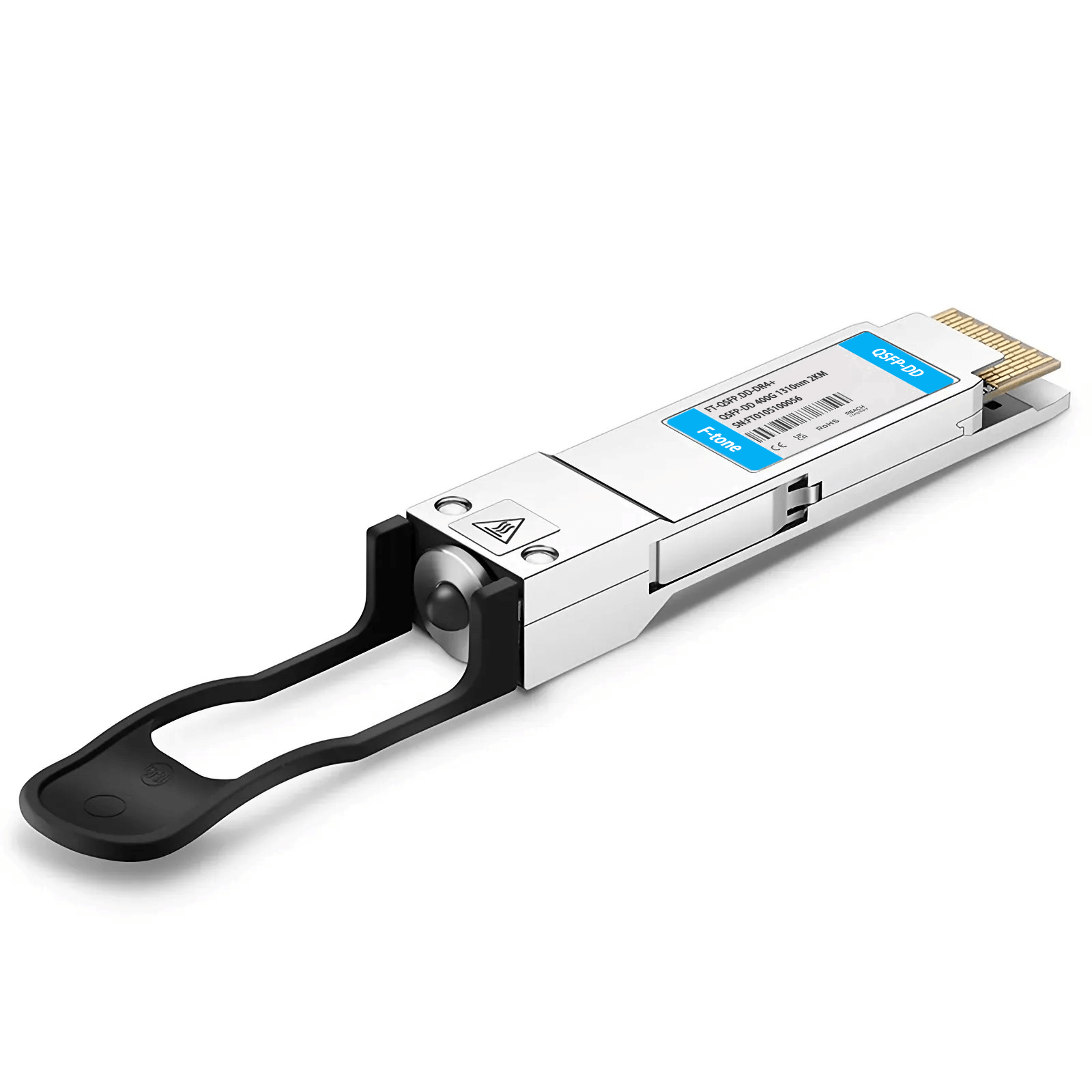

Juniper Networks QDD-2X100G-CWDM4 Compatible 200G QSFP-DD CWDM4 Optical Transceiver Module (1271nm 1291nm 1311nm 1331nm CS SMF 2km DDM)
2x100G QSFP-DD CWDM4 optical transceiver modules are suitable for data centers and HPC (High-Performance Computing) links up to 2km over single-mode fiber. It also features outstanding BER and high sensitivity because of its reliable design and excellent coupling efficiency.
Quality Assurance
Quality Certification
our advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding(EEPROM Programming)
- Testing system
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
