Mellanox — Mellanox MCP7F00-A005R26L Compatible QSFP28 to SFP28 DAC Splitter Cable (5m) supports 100GbE to 4x25GbE and 40GbE to 4x10GbE data rate, which is hot-pluggable.
产品详情
| 产品参数 — F-tone | |||
| Mellanox Compatible | MCP7F00-A005R26L | 制造商名称 | F-tone |
| 接口类型 | QSFP28 to 4xSFP28 | 传输速率 | 100Gbps |
| 线缆长度 | 5m (16.4ft) | 线规 | AWG 26 |
| 外护套材质 | PVC(OFNR) | 最小弯曲半径 | 30mm |
| 工作温度 | 商业级/工业级/军品级可选 | 协议 | 100G Ethernet, InfiniBand EDR |
| Mellanox Compatible | MCP7F00-A005R26L | 制造商名称 | F-tone |
| 接口类型 | QSFP28 to 4xSFP28 | 传输速率 | 100Gbps |
| 线缆长度 | 5m (16.4ft) | 线规 | AWG 26 |
| 外护套材质 | PVC(OFNR) | 最小弯曲半径 | 30mm |
| 工作温度 | 商业级/工业级/军品级可选 | 协议 | 100G Ethernet, InfiniBand EDR |
v Compatible with IEEE 802.3bj, IEEE 802.3by, and InfiniBand EDR
v Supports aggregate data rates of 100Gbps
v Optimized construction to minimize insertion loss and cross talk
v Backward compatible with existing QSFP+ connectors and cages
v Pull-to-release slide latch design
v 26AWG through 30AWG cable
v Straight and break out assembly configurations available
v Customized cable braid termination limits EMI radiation
v Customizable EEPROM mapping for cable signature
v RoHS compliant
Applications
v Switches, servers, and routers
v Data Center networks
v Storage area networks
v High-performance computing
v Telecommunication and wireless infrastructure
v Medical diagnostics and networking
v Test and measurement equipment

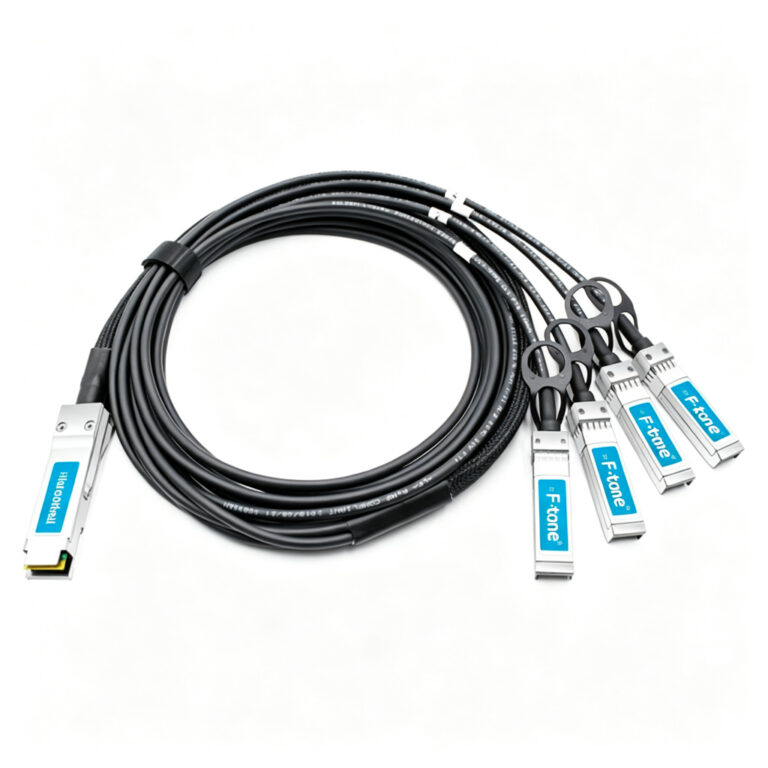

Mellanox MCP7F00-A005R26L Compatible 5m 100G QSFP28 to 4x 25G SFP28 Copper Breakout Cable (QSFP28 to SFP28 DAC Breakout Cable, Passive AWG26 5m)
The DAC breakout cables are a high-speed, cost-effective 100GbE to 4 x 25GbE Ethernet connectivity solution, designed to meet the growing needs for higher bandwidth in data centers. This cable assembly features eight differential copper pairs, providing four data transmission channels at speeds up to 28Gbps per channel, and meets 100G Ethernet, 25G Ethernet, and InfiniBand Enhanced Data Rate (EDR) requirements. Available in a broad range of wire gages from 26AWG through 30AWG.
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
