NVIDIA — NVIDIA MFA7U10-H003 Compatible 3m OSFP to 2x QSFP56, 400Gb/s to 2 x 200Gb/s AOC Cable designed to connect an NDR switch with OSFP to a legacy 2 HDR switch/HCA QSFP56.
产品详情
| 产品参数 — F-tone |
| NVIDIA Compatible |
MFA7U10-H003 |
制造商名称 |
F-tone |
| 封装 |
OSFP to 2x QSFP56 |
速率 |
400Gb/s to 2 x 200Gb/s |
| 波长 |
850nm |
线缆长度 |
3m (9.8ft) |
| 调制技术 |
PAM4 |
设备要求 |
FEC |
| 外护套材质 |
低烟无卤 |
最小弯曲半径 |
30mm |
| 线缆类型 |
多模(MMF) |
是否支持DDM |
Yes |
| 发射激光器类型 |
850nm VCSEL |
光接收器件类型 |
PIN |
| Operating Case Temperature |
0 to 70°C (32 to 158°F) |
电压 |
3.3V |
| 协议 |
CMIS 4.0, SFF-8636 |
最大功耗 |
< 10W (400G OSFP) < 5W (200G QSFP56) |
| 接口类型 |
Fiber Optic Cable |
应用 |
400GBASE-SR8 to 2x 200GBASE HDR, Ethernet |
| NVIDIA Compatible |
MFA7U10-H003 |
制造商名称 |
F-tone |
| 封装 |
OSFP to 2x QSFP56 |
速率 |
400Gb/s to 2 x 200Gb/s |
| 波长 |
850nm |
线缆长度 |
3m (9.8ft) |
| 调制技术 |
PAM4 |
设备要求 |
FEC |
| 外护套材质 |
低烟无卤 |
最小弯曲半径 |
30mm |
| 线缆类型 |
多模(MMF) |
是否支持DDM |
Yes |
| 发射激光器类型 |
850nm VCSEL |
光接收器件类型 |
PIN |
| Operating Case Temperature |
0 to 70°C (32 to 158°F) |
电压 |
3.3V |
| 协议 |
CMIS 4.0, SFF-8636 |
最大功耗 |
< 10W (400G OSFP)
< 5W (200G QSFP56) |
| 接口类型 |
Fiber Optic Cable |
应用 |
400GBASE-SR8 to 2x 200GBASE HDR, Ethernet |
NVIDIA MFA7U10-H003 Compatible 3m (10ft) 400G OSFP to 2x200G QSFP56 twin port HDR Breakout AOC
Quality Assurance
Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.
Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.
Our Advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding (EEPROM Programming)
- Testing system
Switch Introduction
NVIDIA Quantum-2 Switches
|

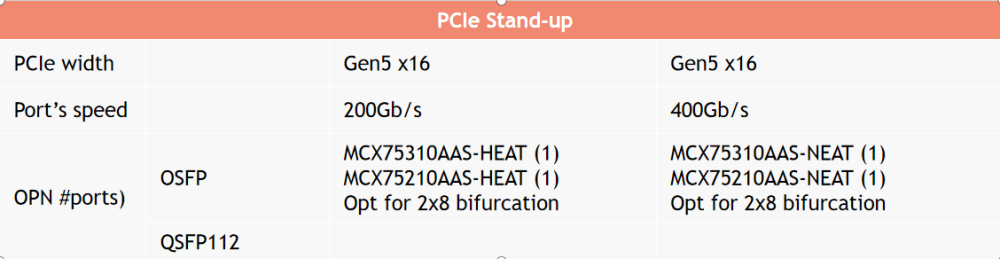

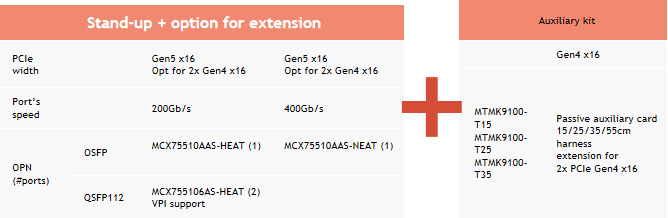

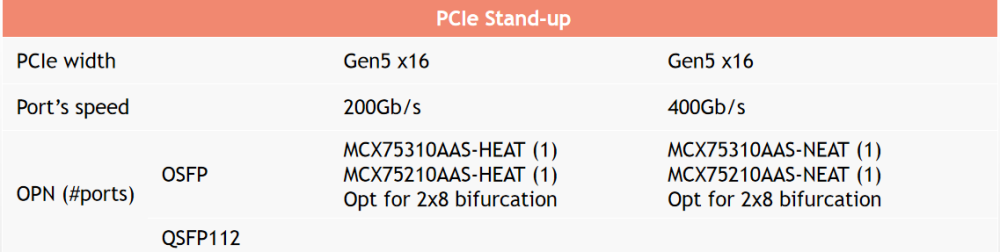

Network Card Introduction
 e
|
|
|

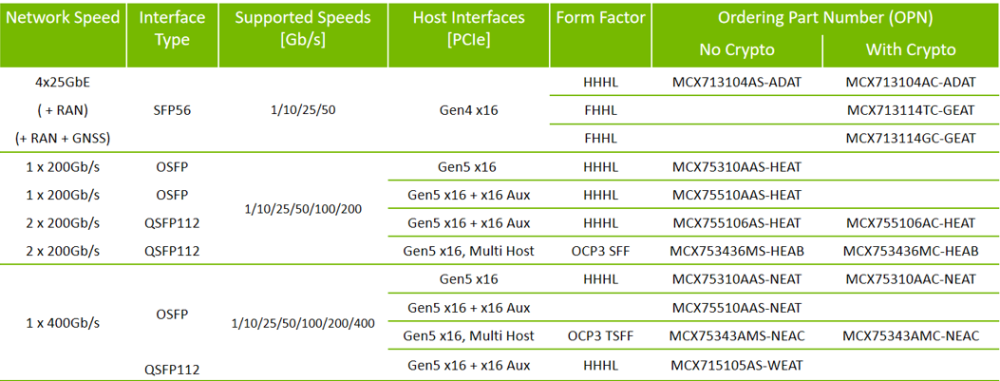

Network Card List
Notes:
1. 100G can be supported as either 4x25G NRZ or 2x50G.
2. 200G can be supported as either 4x50G or 2x100G.
3. 400G is supported as 4x100G.
4. QSFP112 is backwards compatible with QSFP56 and QSFP28.
Switch to Switch (NDR) – Optics
Switch to Switch (NDR) – Copper
Switch to Switch (NDR) – Active Copper & Direct Attached Copper
Switch to Switch (NDR) – HDR&EDR
Switch to HCA
Switch to HCA (NDR) – Optics
Switch to HCA (NDR) – Copper
Switch-to-DGX H100 GPU Systems
|
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
