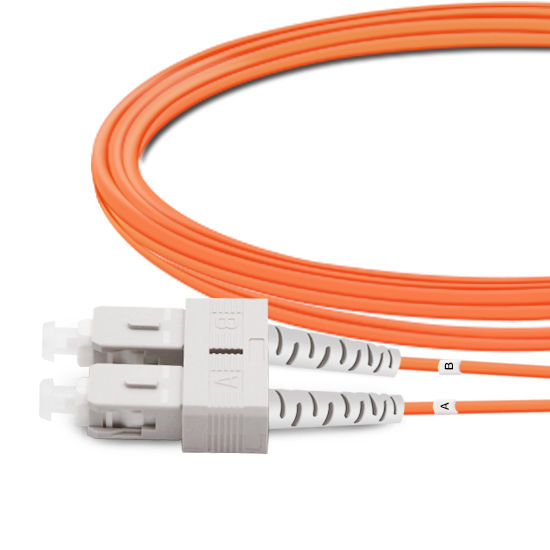

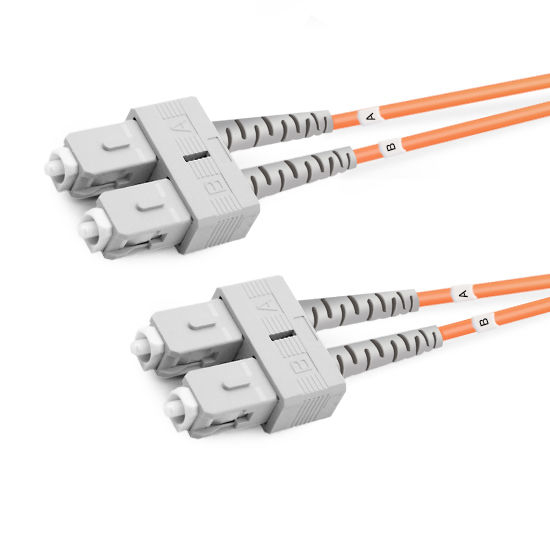

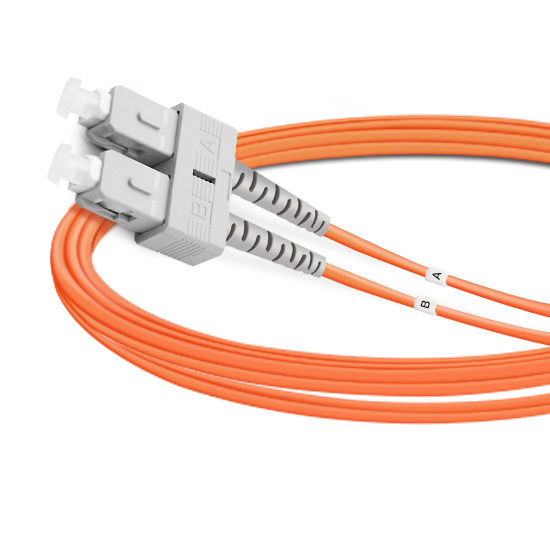

3m (10ft) Duplex OM2 Multimode SC UPC to SC UPC LSZH Fiber Optic Cable

Duplex OM2 50/125 Multimode Fiber Cable 3m uses SC UPC to SC UPC to use LSZH material and is suitable for Gigabit Ethernet, and optical fiber channel applications.

产品详情

产品参数 — F-tone
Connector A	SC UPC	Connector B	SC UPC
光纤类型	OM2 50/125μm Multimode	波长	850/1300nm
Fiber Count	Duplex	Distance	3m (10ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
插入损耗	≤0.3dB	回波损耗	≥20dB
850nm 处的衰减	3.0dB/km	1300nm 处的衰减	1.0dB/km
电缆直径	2.0mm	Fiber Color	Orange
应用	FE/GE Networks	最小弯曲半径	7.5mm
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

Connector A	SC UPC	Connector B	SC UPC
光纤类型	OM2 50/125μm Multimode	波长	850/1300nm
Fiber Count	Duplex	Distance	3m (10ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
插入损耗	≤0.3dB	回波损耗	≥20dB
850nm 处的衰减	3.0dB/km	1300nm 处的衰减	1.0dB/km
电缆直径	2.0mm	Fiber Color	Orange
应用	FE/GE Networks	最小弯曲半径	7.5mm
工作温度	商业级/工业级/军品级可选	存储温度	-40°C to +85°C

SC-SC Duplex OM2 50/125 Multimode Fiber Patch Cable, 3 Meters

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

: LC Duplex

: LC Simplex

: SC Duplex

: SC Simplex

: FC Duplex

: FC Simplex

: ST Duplex

: ST Simplex

Polisy type

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
