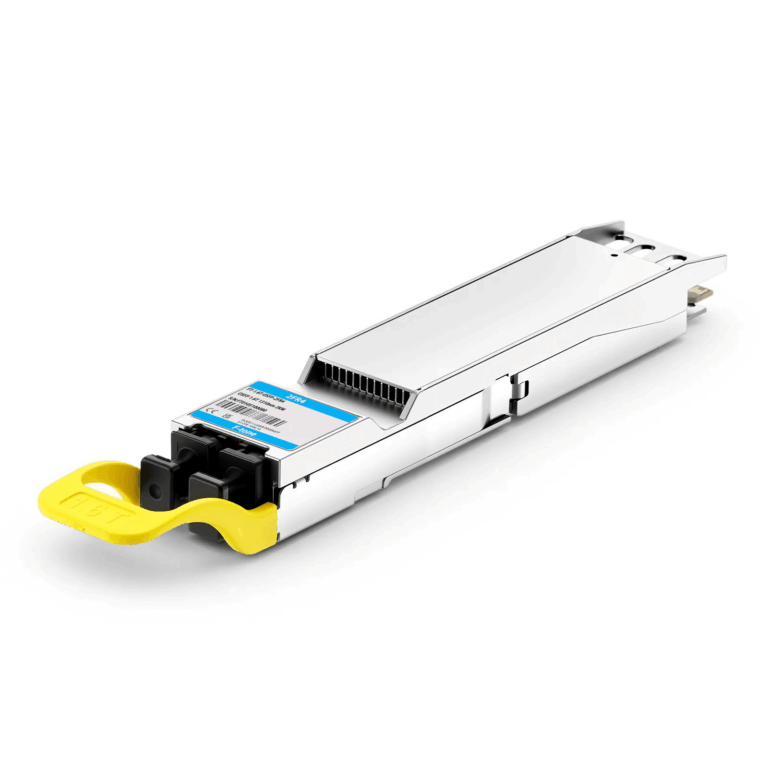

OSFP-400G-FR4 — F-tone OSFP-2x200G-FR4 400G FR4 Fiber Optic Transceiver is designed with 2 sets of 4 CWDM lanes MUX/DEMUX using CS duplex connectors for 2km transmission.
产品详情
| 产品参数 — F-tone | |||
| F-tone型号 | OSFP-400G-FR4 | 制造商名称 | F-tone |
| 封装 | OSFP | 传输速率 | 425Gbps |
| 波长 | 1271nm, 1291nm, 1311nm, 1331nm | 最远传输距离 | 2km |
| 调制技术 | PAM4 | 设备要求 | FEC |
| 接口类型 | Duplex CS | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 2x CWDM4 EML | 光接收器件类型 | PIN |
| 发射光功率 | -4.2~+4.7dBm | 接收灵敏度 | < -6.0dBm |
| 工作温度 | 商业级/工业级/军品级可选 | 最大功耗 | < 12.0W |
| 协议 | OSFP MSA, IEEE 802.3bs | 应用 | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking |
| F-tone型号 | OSFP-400G-FR4 | 制造商名称 | F-tone |
| 封装 | OSFP | 传输速率 | 425Gbps |
| 波长 | 1271nm, 1291nm, 1311nm, 1331nm | 最远传输距离 | 2km |
| 调制技术 | PAM4 | 设备要求 | FEC |
| 接口类型 | Duplex CS | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | 2x CWDM4 EML | 光接收器件类型 | PIN |
| 发射光功率 | -4.2~+4.7dBm | 接收灵敏度 | < -6.0dBm |
| 工作温度 | 商业级/工业级/军品级可选 | 最大功耗 | < 12.0W |
| 协议 | OSFP MSA, IEEE 802.3bs | 应用 | 400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking |
v OSFP MSA compliant
v 2 sets of 4 CWDM lanes MUX/DEMUX design
v Compliant to IEEE 802.3bs Specification
v Up to 2km transmission on single mode fiber (SMF) with FEC
v Operating case temperature: 20 to 60oC
v 8×53.125Gb/s electrical interface (400GAUI-8)
v Data Rate 53.125Gbps (PAM4) per channel.
v Maximum power consumption 12W
v CS duplex connectors
v RoHS compliant
Applications
v Data Center Interconnect
v 400G Ethernet
v Infiniband Interconnects
v Enterprise Networking
2x 200G FR4 OSFP PAM4 2 Sets of 4 CWDM lanes MUX/DEMUX design Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm CS SMF 2km with FEC DDM)
