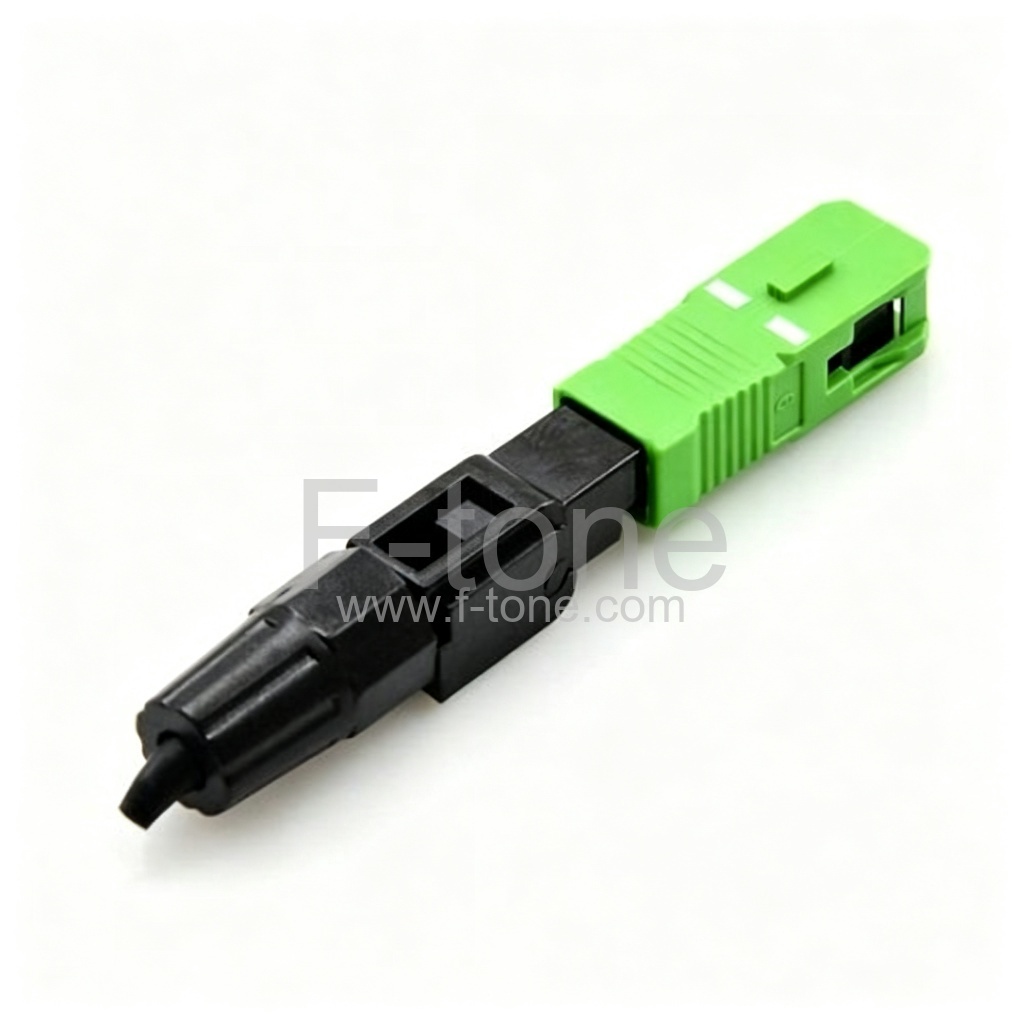

SC/APC 快速连接器是工厂预抛光、可现场安装的连接器，完全消除了现场手工抛光的需要。 成熟的机械接合技术可确保精确的光纤对准，工厂预切割的光纤插芯和专有的折射率匹配凝胶相结合，可为单模或多模光纤提供即时的低损耗端接。
| Connector Type | SC | Polishing | APC |
| Ferrule | Ceramic | Fiber Mode | 9/125μm Singlemode |
| Cable Diameters | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥50dB |
| Tension Test | ≥100N | Operating Temperature | -40 to 75°C (-40 to 167°F) |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
