产品特点
- 纤维直径：0.9mm
- 连接器：FC/UPC
- FTTX上线测试
- OTDR监控模块
- 1625/1650nm滤光系统

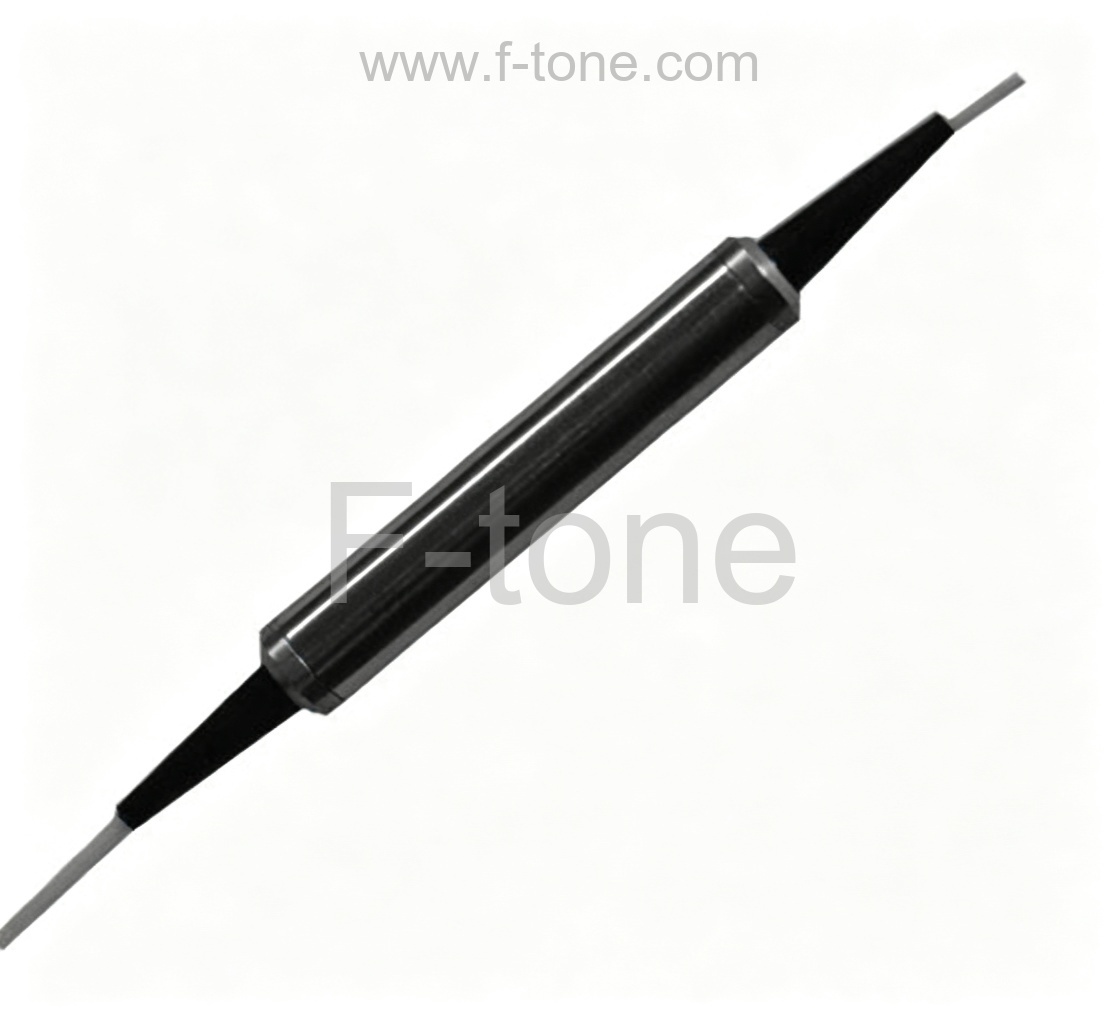

滤光片是一种用于波长选择的仪器，可以从大量波长中选择出所需的波长，并剔除附加波长。 可用于波长选择、光放大器的噪声滤波器、增益均衡、光复用/解复用等。 光纤滤波器WDM FTTX 1625nm FT-FWDM-1625采用特殊光学元件和先进技术制成，可以深度让1600-1670nm波长通过，但有效阻止1250-1590nm波长。 该产品主要应用于光纤在线测试。 是1625/1650nm光纤滤波的理想器件。
Passed Wavelength Range
1625nm Transmittance
1650nm Transmittance
Stopped Wavelength Range
Temperature Shift Factor
Operation Temperature
|
Parameters |
Value |
Unit |
|
Passed Wavelength Range |
1600-1670 |
nm |
|
1625nm Transmittance |
80-90 |
% |
|
1650nm Transmittance |
75-85 |
% |
|
Stopped Wavelength Range |
1250-1590 |
nm |
|
1310nm Isolation |
≥50 |
dB |
|
1490nm Isolation |
≥45 |
dB |
|
1550nm Isolation |
≥38 |
dB |
|
PDL |
≤0.3 |
dB |
|
Temperature Shift Factor |
≤2 |
% |
|
Max. Power Handle |
300 |
mW |
|
Operation Temperature |
-25～＋70 |
℃ |
|
Storage Temperature |
-40～＋85 |
℃ |
|
Optical Fiber Type |
SM Φ0.9 |
/ |
|
Connector |
FC/APC or FC/PC |
/ |
|
Material Of Shell |
SUS304 |
/ |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
