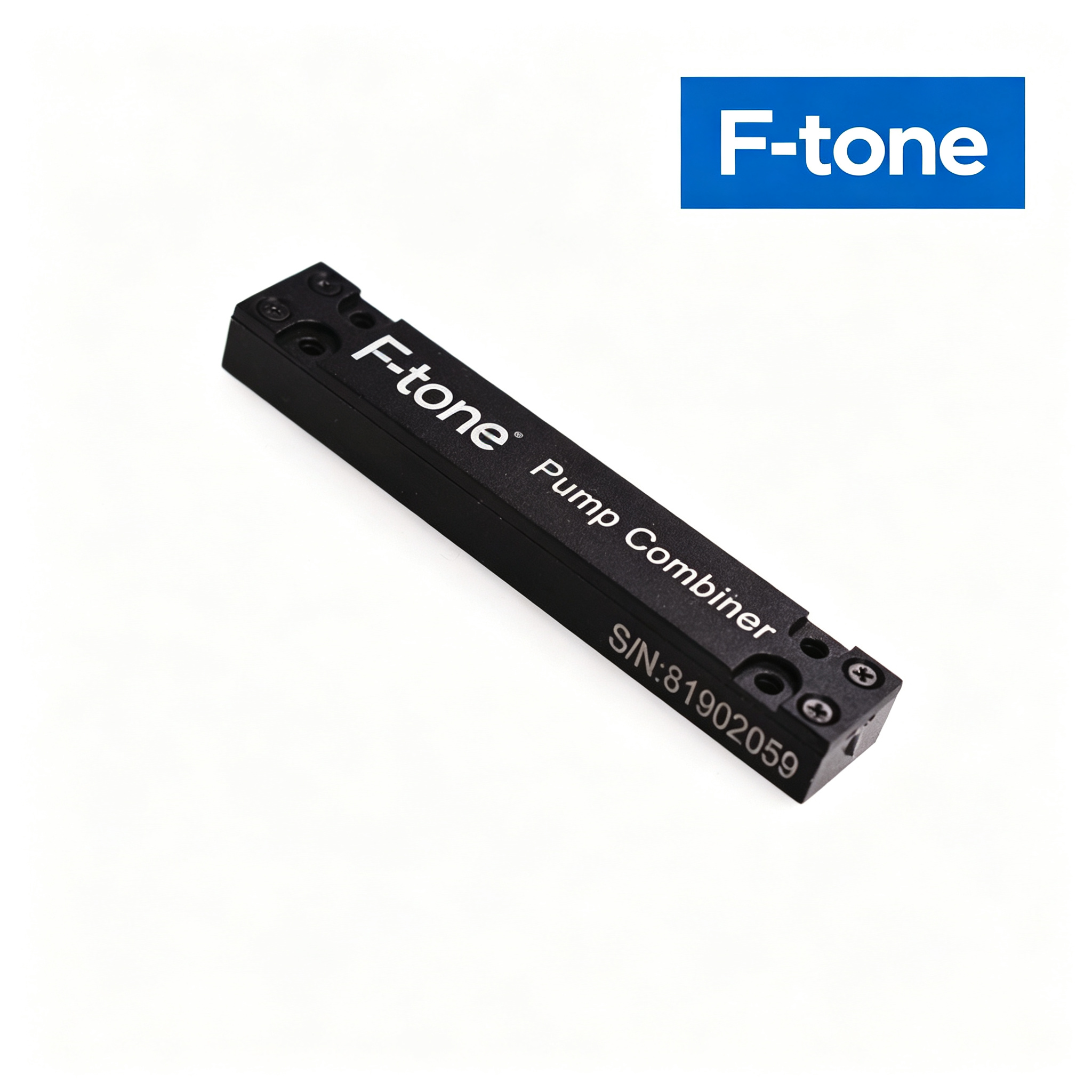

(1+1)x1 Pump & Signal Combiner |
||||||
|
|
|
|||||
|
Features |
Applications |
|||||
|
High Transfer Efficiency |
High Power Fiber Laser |
|||||
|
Air-Clad Technology for Robust Power Delivery |
Fiber Amplifier |
|||||
|
Stable and Reliable |
|
|||||
|
Custom Configurations Available |
|
|||||
|
|
|
|||||
|
Specifications |
||||||
|
Parameters |
Unit |
Value |
||||
|
Port Configuration |
– |
(1+1)x1 |
||||
|
Pump Wavelength |
nm |
800~1000nm |
||||
|
Signal Wavelength |
nm |
1030~1080nm or 1450~1600nm |
||||
|
Signal Input Fiber |
– |
X/125 |
X/250 |
20/400 |
||
|
Pump Fiber |
– |
105/125 0.22NA or 200/220 0.22NA |
||||
|
Signal Output Fiber |
– |
Y/125 or Y/250 |
Y/250 |
20/400 |
||
|
Pump Efficiency |
% |
>90 |
>93 |
>95 |
||
|
Signal Insertion Loss |
dB |
<0.5 |
||||
|
Total Handling Power |
W |
50 |
100 |
200 |
||
|
Polarization Extinction Ratio |
dB |
≥18 (PM Fiber Type) |
||||
|
Return Loss |
dB |
>45 |
||||
|
Package Dimension |
– |
D1, D2, D3, D4, D5, D6, D7 |
||||
|
Operating Temperature |
℃ |
-5~+70 |
||||
|
Storage Temperature |
℃ |
-40~+85 |
||||
|
|
||||||
|
Ordering Information |
||||||
|
MPC-111-222-3-444-55-6-7-888-999 |
||||||
|
111 – Port Configuration: |
011=(1+1)x1 |
|||||
|
222 – Fiber Type for Input: |
SSS=Specify |
|||||
|
3 – Fiber Type for Pump: |
1=MM-S105/125-22A, 2=MM-S200/220-22A, S=Specify |
|||||
|
444 – Fiber Type for Output: |
SSS=Specify |
|||||
|
55 – Package Dimension: |
D1, D2, D3, D4, D5, D6, D7, S=Specified |
|||||
|
6 – Pigtail Type: |
0=bare fiber, 1=900um loose tube |
|||||
|
7 – Fiber Length: |
0.75=0.75m,1.0=1m, S=Specify |
|||||
|
888 – Handling Power/Signal |
005=5W, 010=10W, 100=100W, 200=200W, SSS=Specify |
|||||
|
999 – Handling Power/Per Pump: |
005=5W, 010=10W, 100=100W, 200=200W, SSS=Specify |
|||||
