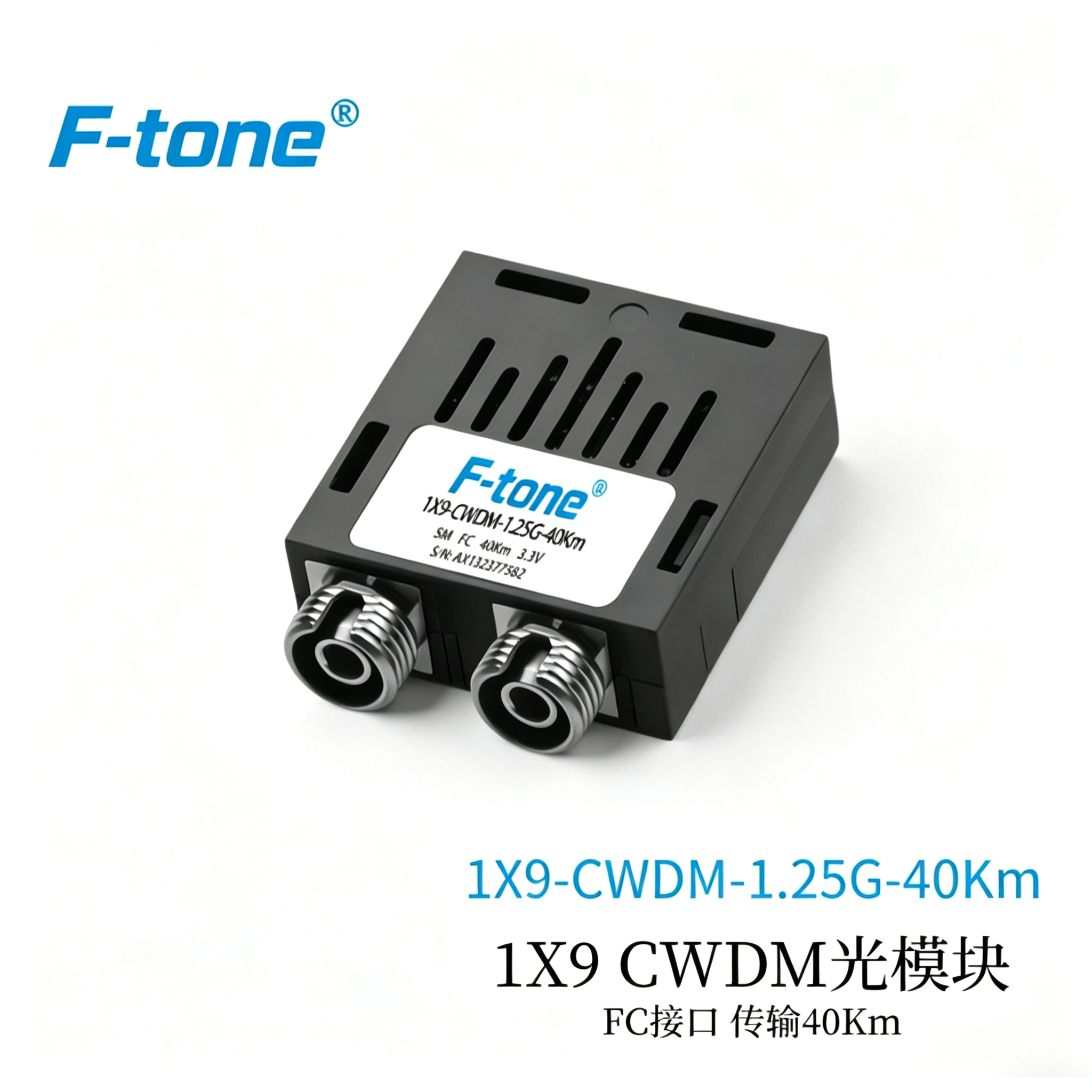

1*9光模块 1.25G SM CWDM 1470NM~1610NM 40KM-100KM SC/FC/ST | F-tone 北亿纤通

Feature：

Eight wavelengths CWDM transceivers

Transceiver unit with independent DFB laser diode transmitter InGaAs PIN photodiode receiver

Duplex SC/FC/ST receptacle and plastic package

Qualified to meet the intent of Bellcore 468 reliability practices

3.3V Single power supply, PECL or LVPECL interface logic level

Multi-sourced 1×9 package

CWDM DFB激光器中心波长有1270nm、1290nm、1310nm、1330nm、1350nm、1370nm、1390nm、1410nm、1430nm、1450nm、1470nm、1490nm、1510nm、1530nm、1550nm、1570nm、1590nm和1610nm。

Application

1.25Gbps CWDM

1G/2G Fiber Channel

Other Optical Links

产品型号 Product Model	速率 Data Rate	接头类型 Port	单多模 Fiber	波长 Wave(nm)	传输距离 Distance (KM)	电压 Voltage	信号电平 Signal Level	温度 Temp. (℃)
GT-S2C**-40	1.25Gbps	SC/FC/ST	SM	CWDM 1470NM~1610NM	40KM	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S2C**-60	1.25Gbps	SC/FC/ST	SM	CWDM 1470NM~1610NM	60KM	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S2C**-80	1.25Gbps	SC/FC/ST	SM	CWDM 1470NM~1610NM	80KM	3.3V	LVPECL	0℃~70℃ / -40℃~85℃
GT-S2C**-100	1.25Gbps	SC/FC/ST	SM	CWDM 1470NM~1610NM	100KM	3.3V	LVPECL	0℃~70℃ / -40℃~85℃

工作温度：商业级/工业级/军品级可选

本产品为北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
