Features
- Supports single-rate 103.1Gb/s aggregate(100GE);
- Lane bit rate 25.78 Gb/s 100GbE;
- Up to 10km transmission on SMF;
- LAN WDM laser and PIN receiver;
- High speed I/O electrical interface (CAUI-4);
- MDIO interface with integrated Digital Diagnostic monitoring;
- CFP2 MSA package with duplex LC connector;
- Single +3.3V power supply;
- Maximum power consumption 6W;
- Operating case temperature: -5 to +70 °C;
- Complies with IEEE802.3bm;
- Complies with EU Directive 2015/863/EU;
Application
- 100GBASE-LR4;
CFP2-100G-LR4

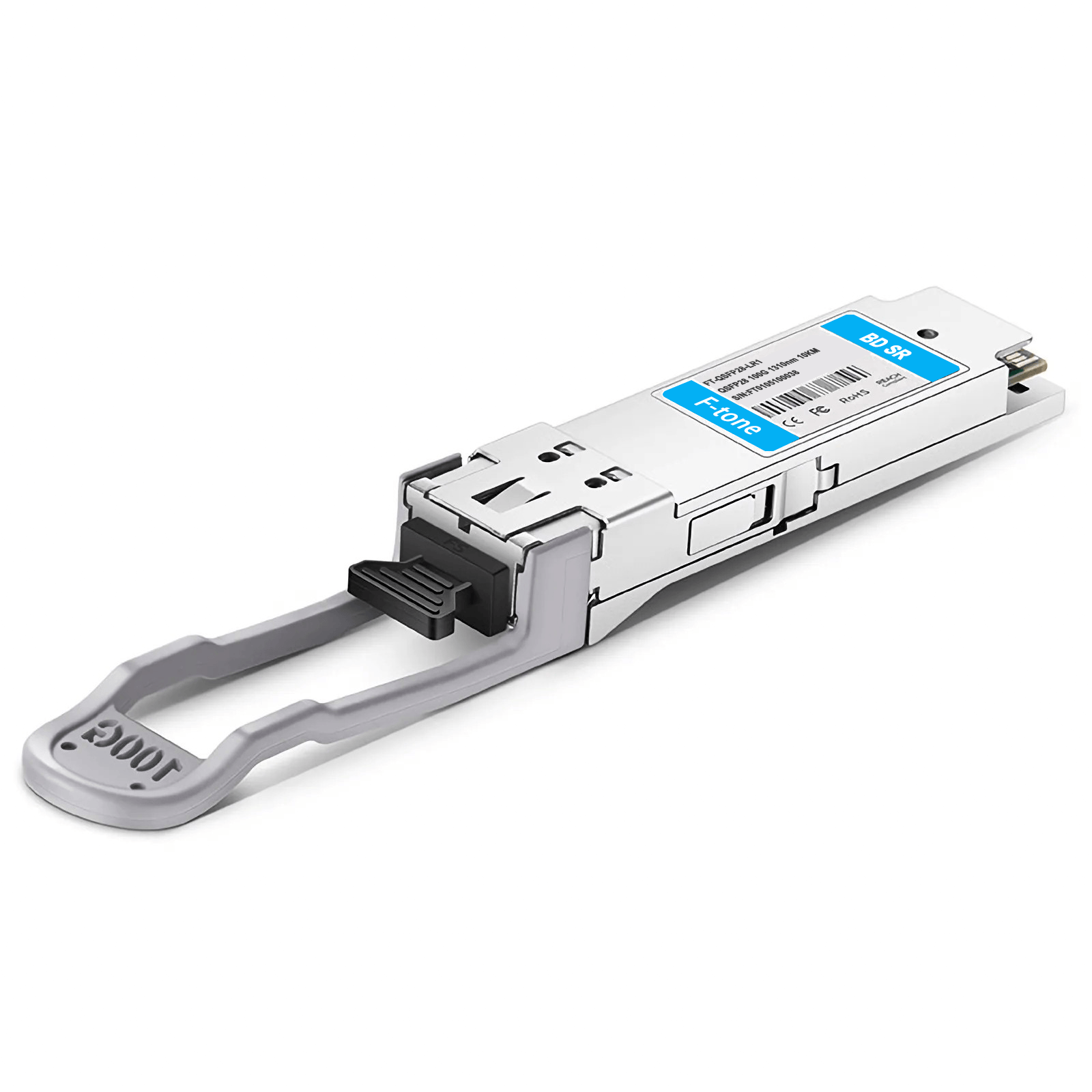

100G CFP2 LR4 single rate 10km Module
Order Information
|
Part No. |
Data Rate |
Laser |
Fiber Type |
Distance |
Optical Interface |
Temp |
DDMI |
|
CFP2-100G-LR4 |
103.1~111.8Gbps |
LWDM |
SMF |
10km |
LC |
-5~70C |
Y |
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Storage Temperature |
TS |
-40 |
– |
+85 |
°C |
|
|
Supply Voltage |
VCC |
-0.5 |
– |
+4.0 |
V |
|
|
Operating Relative Humidity |
FH |
– |
– |
+85 |
% |
|
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Case Temperature |
TC |
-5 |
– |
+70 |
°C |
|
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
|
|
1.8 |
|
|
|
Maximum Power Dissipation |
PD |
– |
– |
6 |
W |
|
|
Aggregate Bit Rate |
BRAVE |
– |
103.125 |
– |
Gb/s |
|
|
Lane Bit Rate |
BRLANE |
– |
25.78 |
– |
Gb/s |
|
|
Transmission Distance |
TD |
|
– |
10 |
km |
Over SMF |
Optical Characteristics
|
Transmitter |
||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Center Wavelength Lane 0 |
λ0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
|
Center Wavelength Lane 1 |
λ1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
Center Wavelength Lane 2 |
λ2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
Center Wavelength Lane 3 |
λ3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
|
Total Launch Power, 100GE |
PALL |
– |
– |
10.5 |
dBm |
1 |
|
Average Launch Power per Lane, 100GE |
PTX_LANE |
-4.3 |
– |
4.5 |
dBm |
1 |
|
OMA per Lane, 100GE |
OMA |
-1.3 |
– |
4.5 |
dBm |
1 |
|
OMA–TDP per Lane, 100GE |
OMA_TDP |
-2.3 |
– |
– |
dBm |
|
|
Difference in launch power between lanes |
PTX_DELTA_LANE |
– |
– |
3.6 |
dB |
|
|
Average Output Power (Laser Turn off) |
P0UT-OFF |
– |
– |
-30 |
dBm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
– |
– |
dB |
|
|
Extinction Ratio, 100GE |
ER |
4 |
– |
– |
dB |
|
|
Transmitter and Dispersion Penalty |
TDP |
– |
– |
2.2 |
dB |
2 |
|
Optical Return Loss Tolerance |
ORLT |
– |
– |
20 |
dB |
|
|
Optical Eye Mask, 100GE |
Compliant with IEEE 802.3bm |
2 |
||||
|
Receiver |
||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Center Wavelength Lane 0 |
λ0 |
1294.53 |
1295.56 |
1296.59 |
nm |
|
|
Center Wavelength Lane 1 |
λ1 |
1299.02 |
1300.05 |
1301.09 |
nm |
|
|
Center Wavelength Lane 2 |
λ2 |
1303.54 |
1304.58 |
1305.63 |
nm |
|
|
Center Wavelength Lane 3 |
λ3 |
1308.09 |
1309.14 |
1310.19 |
nm |
|
|
Average Rx Power per Lane, 100GE |
PRX _LANE |
-10.6 |
|
4.5 |
dBm |
3 |
|
OMA Sensitivity per Lane, 100GE |
POMA_LANE |
– |
– |
-8.6 |
dBm |
3 |
|
Receiver Overload |
PIN-OL |
4.5 |
– |
– |
dBm |
|
|
Reflectance |
Ref |
– |
– |
-26 |
dB |
|
|
LOS Assert per lane |
LOSA |
-20 |
– |
– |
dBm |
|
|
LOS De-assert |
LOSD |
– |
– |
-12 |
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
4 |
dB |
|
Notes:
1. The optical power is launched into SMF.
2. Measured with a PRBS 231-1 test pattern @25.78125/27.952 Gb/s, Hit ratio≤5E-5.
3. Measured with a PRBS 231-1 test pattern @25.78125 Gb/s, BER≤1E-12.
Electrical Characteristics
High-Speed Signal: Compliant to CAUI-4 (IEEE 802.3bm)
Low-Speed Signal: Compliant to CFP2 MSA Hardware Specification
|
Transmitter (Module Input) |
|||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
|
Differential Data Input Amplitude |
VIN,P-P |
85 |
– |
900 |
mVpp |
|
|
|
Differential Termination Mismatch |
|
– |
– |
10 |
% |
|
|
|
Tx_Disable |
Normal Operation |
VIL |
-0.3 |
– |
0.8 |
V |
|
|
Laser Disable |
VIH |
2.0 |
– |
VCC+0.3 |
V |
|
|
|
Receiver (Module Output) |
|||||||
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
|
Differential Data Output Amplitude |
VOUT,P-P |
200 |
– |
900 |
mVpp |
|
|
|
Differential Termination Mismatch（1MHZ） |
|
– |
– |
10 |
% |
|
|
|
Output Rise/Fall Time, 20%~80% |
TR |
12 |
– |
– |
ps |
|
|
|
Rx_LOS |
Normal Operation |
VOL |
– |
– |
0.2 |
V |
|
|
Lose Signal |
VOH |
VCC-0.2 |
– |
– |
V |
|
|
Digital Diagnostics
|
Parameter |
Range |
Accuracy |
Unit |
Calibration |
|
Temperature |
0 to 70 |
±3 |
ºC |
Internal |
|
Voltage |
0 to VCC |
0.1 |
V |
Internal |
|
Tx Bias Current Per Lane |
0 to 100 |
10% |
mA |
Internal |
|
Tx Output Power Per Lane |
-4.3 to 4.5 |
±3 |
dBm |
Internal |
|
Rx Power (Each Lane) |
-10.6to 4.5 |
±3 |
dBm |
Internal |
Mechanical Dimension
