100G QSFP28 BIDI optical transceiver module is a pluggable optical transceiver with a Simplex LC connector interface for long-reach data communication and interconnect applications using one core Single-Mode Fiber (SMF).

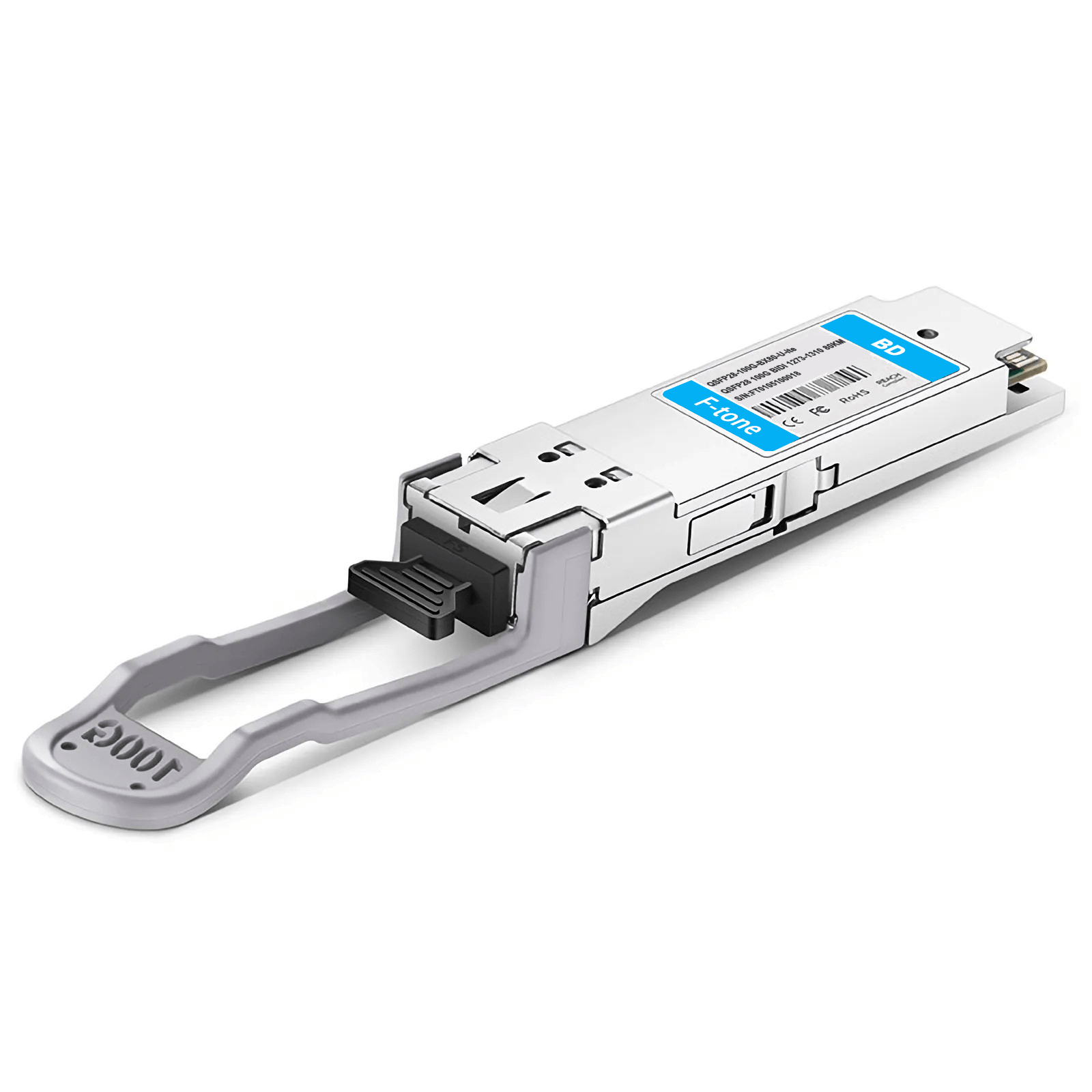

100G QSFP28 BiDi Optical Transceiver Module
1280/1310nm, LWDM4,20km, Simplex LC, -20~+85℃, with DDM
The 100G QSFP28 LR4 Bidi transceiver is a four-channel 4x25Gb/s LAN WDM, pluggable, Single-mode, fiber-optic QSFP28 transceiver for 100-Gigabit Ethernet applications. This transceiver is a high-performance module for long-range data communication and interconnect applications.
These modules are designed to operate over single-mode fiber systems using nominal wavelengths of 1280nm and 1310nm. The electrical interface uses a 38-contact QSFP28-edge type connector. The optical interface uses a conventional one-fiber Simplex LC SMF connector.
Features
- Hot pluggable QSFP28 MSA form factor
- Supports 103.1Gb/s aggregate bit rate
- Up to 20km reach for G.652 SMF with FS (528,514) FEC
- Single +3.3V power supply
- Extended case temperature range of -20 to 85℃
- Cooled 4x25Gb/s LAN WDM Blue or Red Side TOSA
- LAN WDM Red or Blue Side FOSA
- Maximum power consumption 5.5W
- Single LC receptacle
- Compliant with the QSFP28 and 4WDM-20 MSA
- Compatible with RoHS2.0
- DDM function
Order information
|
Product Number |
Data Rate(Gb/s) |
Wavelength(nm) |
Reach(m) |
LD |
Tx Power(dBm) |
PD |
Rx Sens(dBm) |
Temperature(℃) |
|
FQ-100G-BDLR-28 |
100 |
TX1280/FX1310nm |
20KM |
DFB |
-4.3 -4.5dBm |
PIN |
<-14.5dBm |
-20~85 |
|
FQ-100G-BDLR-31 |
100 |
TX1310/FX1280nm |
20KM |
DFB |
-4.3 -4.5dBm |
PIN |
<-14.5dBm |
-20~85 |
工作温度：商业级/工业级/军品级可选
