Features |
Applications |
|||
|
Low Insertion Loss |
DWDM Module |
|||
|
High Return Loss |
DWDM System |
|||
|
High Isolation |
Gpon Networks |
|||
|
High Reliability & Stability |
CATV Links |
|||
|
|
|
|||
|
Specifications |
||||
|
Parameters |
Unit |
Values |
||
|
Channel Space |
Ghz |
100 |
200 |
|
|
Center Wavelength |
nm |
ITU Grid |
||
|
Center Wavelength Accuracy |
nm |
±0.05 |
±0.1 |
|
|
Channel Pass band (@-0.5dB) |
nm |
0.22 |
0.5 |
|
|
Max. Insertion Loss of Transmission Channel |
dB |
1.0 |
0.9 |
|
|
Max. Insertion Loss of Reflection Channel |
dB |
0.4 |
0.4 |
|
|
Min. Transmission Isolation @Reflection Wavelength |
dB |
30 |
30 |
|
|
Min. Reflection Isolation @Transmission Wavelength |
dB |
10 |
10 |
|
|
Max. Channel Flatness |
dB |
0.3 |
||
|
Min. Extinction Ratio at 23℃ |
dB |
18 |
||
|
Max. Wavelength Thermal Stability |
nm/℃ |
0.003 |
||
|
Max. Insertion Loss Thermal Stability |
dB/℃ |
0.005 |
||
|
Min. Return Loss |
dB |
50 |
||
|
Max. Power Handling (CW) |
mW |
500 |
||
|
Fiber Type |
– |
PM Panda fiber |
||
|
Operating Temperature |
℃ |
0~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
Ordering Information |
||||
|
PMDWDM-11-234–555-67–8–999 |
||||
|
11 – Wavelength: |
26=26CH,27=27CH,……, 40=40CH, 41=41CH,…… |
|||
|
2 – Configuration: |
3=1×2 |
|||
|
3 – Channel Space: |
1=100G, 2=200G |
|||
|
4 – Working Axis: |
B=Both axis working |
|||
|
555 – Fiber Type: |
001=PM1550, 002=PM1310, 008=SMF-28E, SSS=Specify |
|||
|
6 – Package Dimension: |

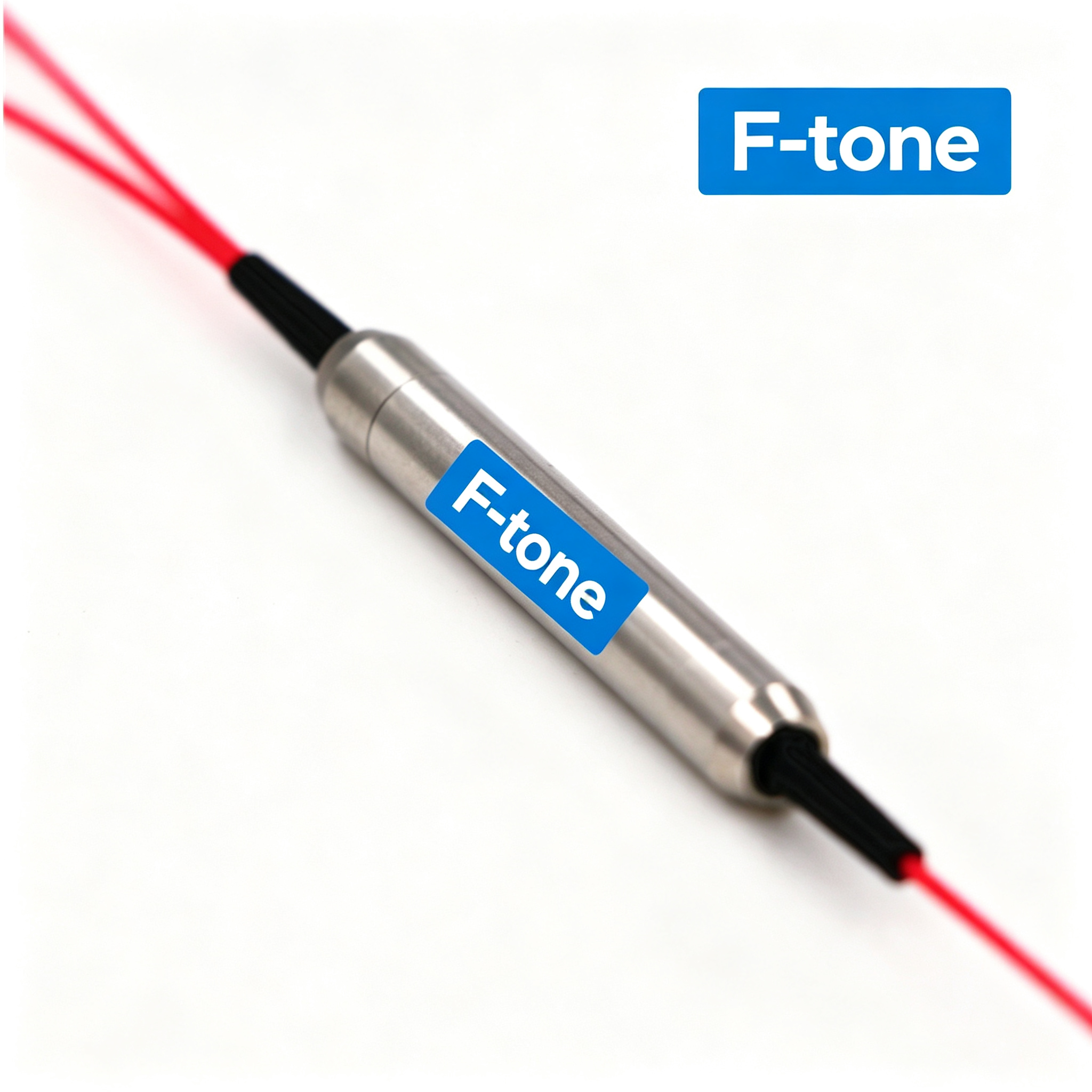

0=φ5.5x35mm, S=Specify |
|||
|
7 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
|||
|
8 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
|||
|
999 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
|||
工作温度：商业级/工业级/军品级可选
