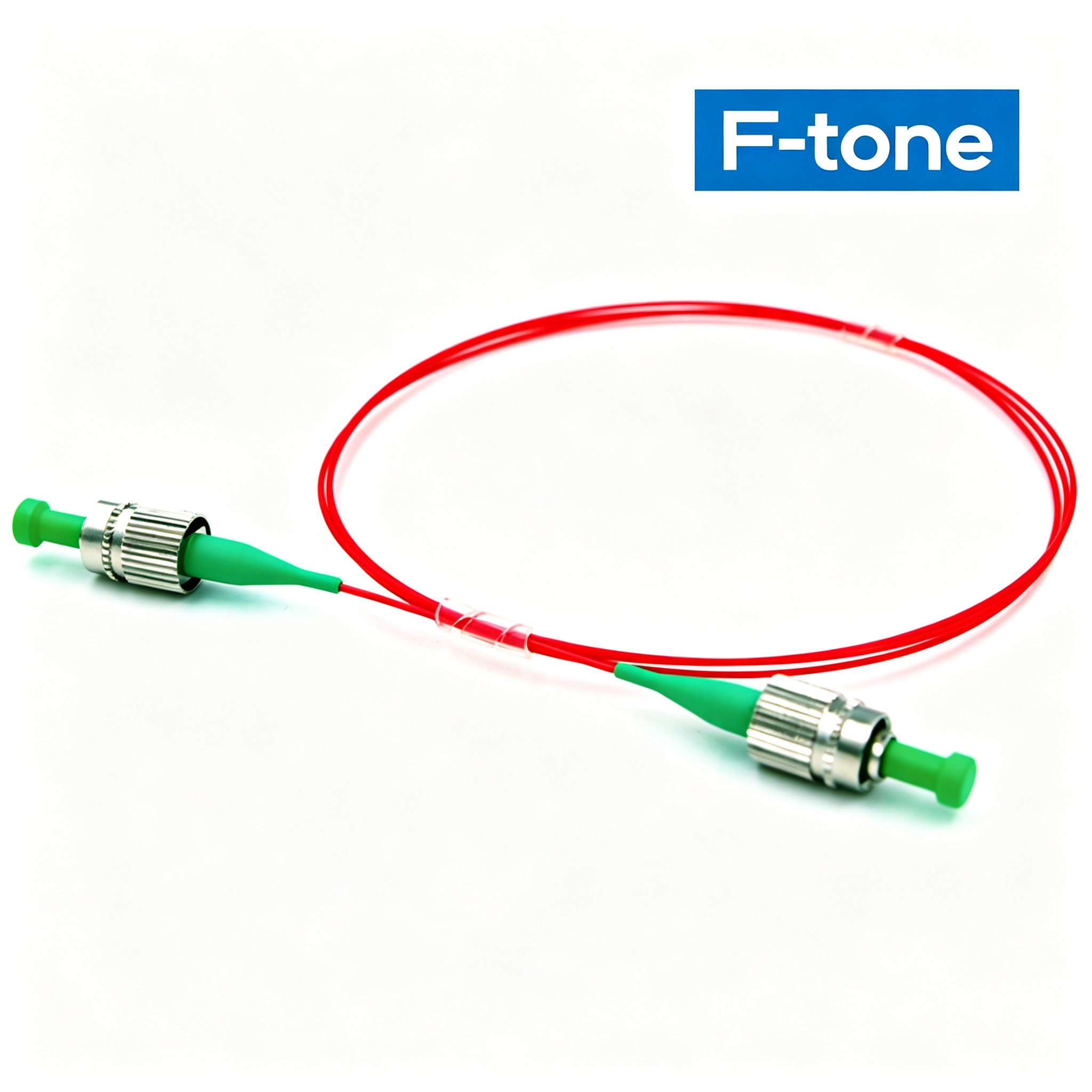

1064nm Polarization Maintaining Filter WDM |
|||
|
|
|
||
|
Features |
Applications |
||
|
Low Insertion Loss |
CATV System |
||
|
High Return Loss |
CWDM/DWDM Module |
||
|
High Reliability & Stability |
EPon/Gpon Networks |
||
|
|
|
||
|
Specifications |
|||
|
Parameters |
Unit |
Values |
|
|
Transmission Wavelength |
nm |
1064 |
|
|
Reflection Wavelength |
nm |
980 |
|
|
Max.Insertion Loss of Transmission Channel |
dB |
0.8 |
|
|
Max.Insertion Loss of Reflection Channel |
dB |
0.6 |
|
|
Min.Transmission Isolation@Reflection Wavelength |
dB |
25 |
|
|
Min.Reflection Isolation@Transmission Wavelength |
dB |
15 |
|
|
Max.Channel Flatness |
dB |
0.4 |
|
|
Min.Extinction Ratio at 23℃ |
dB |
18 |
|
|
Max. Wavelength Thermal Stability |
nm/℃ |
0.003 |
|
|
Max. Insertion Loss Thermal Stability |
dB/℃ |
0.005 |
|
|
Min.Return Loss |
dB |
50 |
|
|
Max.Power Handling (CW) |
mW |
300 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Operating Temperature |
℃ |
0~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
|
|||
|
Ordering Information |
|||
|
PMFWDM-1111-23–444-555-67-8-999 |
|||
|
1111 – Wavelength: |
0698=T1064nm/FT980nm, SSSS=Specify |
||
|
2 – Pump Type: |
F=Forward, B=Backward |
||
|
3 – Working Axis for Signal Route: |
B=Both axis working, F=Fast axis blocked |
||
|
444 – Fiber Type for Com & Pass: |
003=PM980, SSS=Specify |
||
|
555 – Fiber Type for Ref: |
003=PM980, 004=Hi1060, SSS=Specify |
||
|
6 – Package Dimension: |
0=φ5.5x35mm, S=Specify |
||
|
7 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
||
|
8 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
||
|
999 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
||
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
