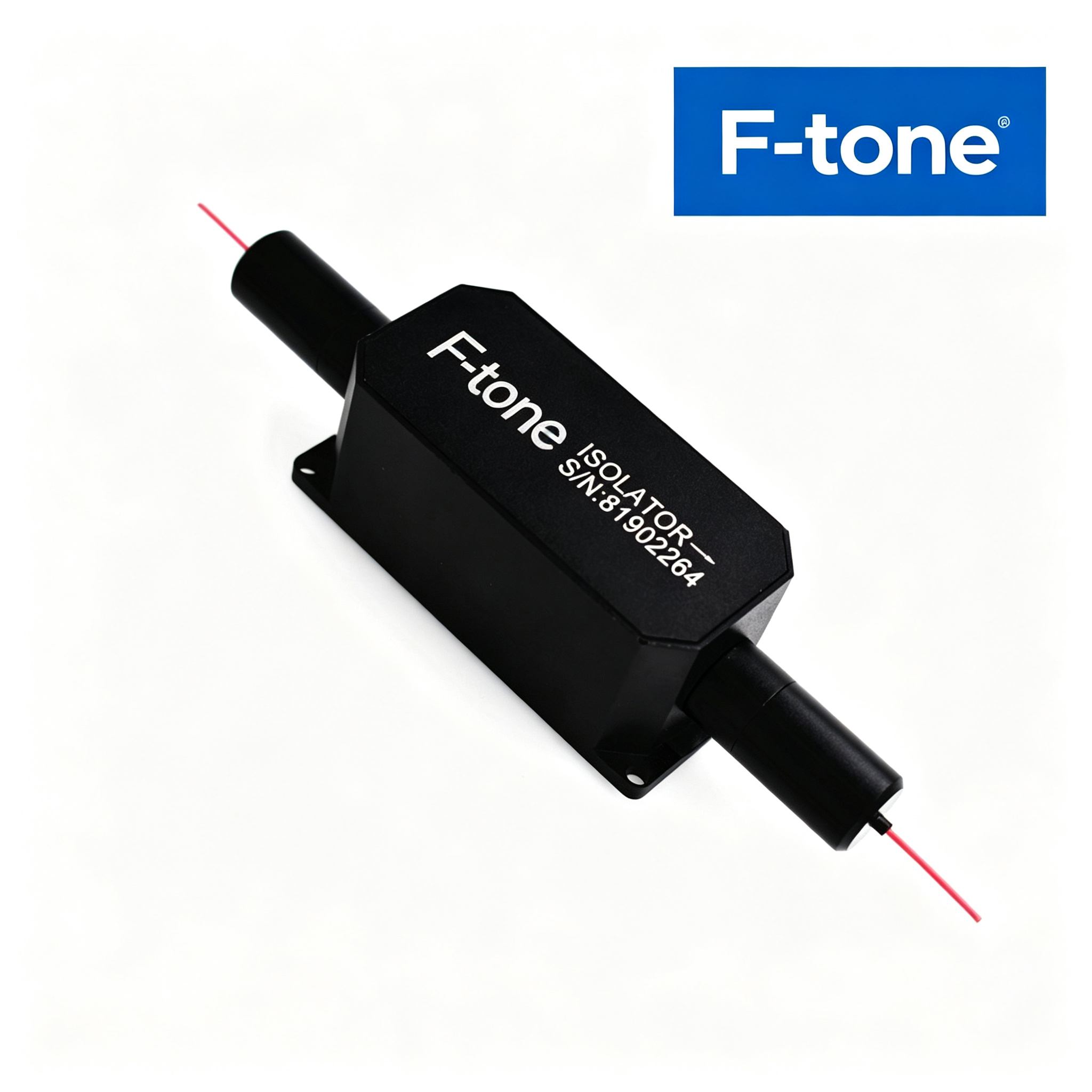

1064nm Isolator & Polarization Beam Combiner & Splitter

Isolator & Polarization Beam Splitter/Combiner (IPBC/IPBS)

Features

Applications

Low Insertion Loss

EDFA & Raman Amplifier

High Return Loss

Fiver Sensora

High Extinction Ratio

Coherent Telecommunication Systems

High Reliability & Stability

Polarization Mode Dispersion Compensator

Specifications

Parameters

Unit

Values

Stage

–

Single

Center Wavelength

nm

1064

Operating Wavelength Range

nm

±5

Typ. Insertion Loss at 23℃

dB

1.8

Max. Insertion Loss at 23℃

dB

2.1

Typ. Reversed Isolation at 23℃ (Port 3 to Port 1 or 2)

dB

35

Min. Isolation at 23℃ (Port 3 to Port 1 or 2)

dB

25

Min. Extinction Ratio at 23℃

dB

20

Directivity

dB

50

Min. Return Loss

dB

50

Max. Optical Power (CW)

mW

300

Max. Tensile Load

N

5

Fiber Type

Port 1 & 2

–

PM Panda fiber

Port 3

–

PM Panda fiber or Hi1060

Operating Temperature

℃

-5~+70

Storage Temperature

℃

-40~+85

*Above specifications are for device without connector.

*For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower.

*The default connector key is aligned to slow axis.

Ordering Information

IPBC–1111-23-444-555-67-8-999 / IPBS-1111-23-444-555-67-8-999

1111 – Wavelength:

1064=1064nm

2 – Core Type:

S=Single-core

3 – Option for Port 3 to 1, 2:

1=SM Fiber to PM Fiber (PBS) / PM Fiber to SM Fiber (PBC)

2=PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1

3=PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1

444 – Fiber Type for Port 3:

003=PM980, 004=Hi1060, SSS=Specify

555 – Fiber Type for Port 1 & 2:

003=PM980, SSS=Specify

6 – Package Dimension:

0=φ5.5x35mm, 1=φ5.5x50mm, S=Specify

7 – Pigtail Type:

0=bare fiber, 1=900μm loose tube

8 – Fiber Length:

0.75=0.75m, 1.0=1m, S=Specify

999 – Connector Type:

0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify
