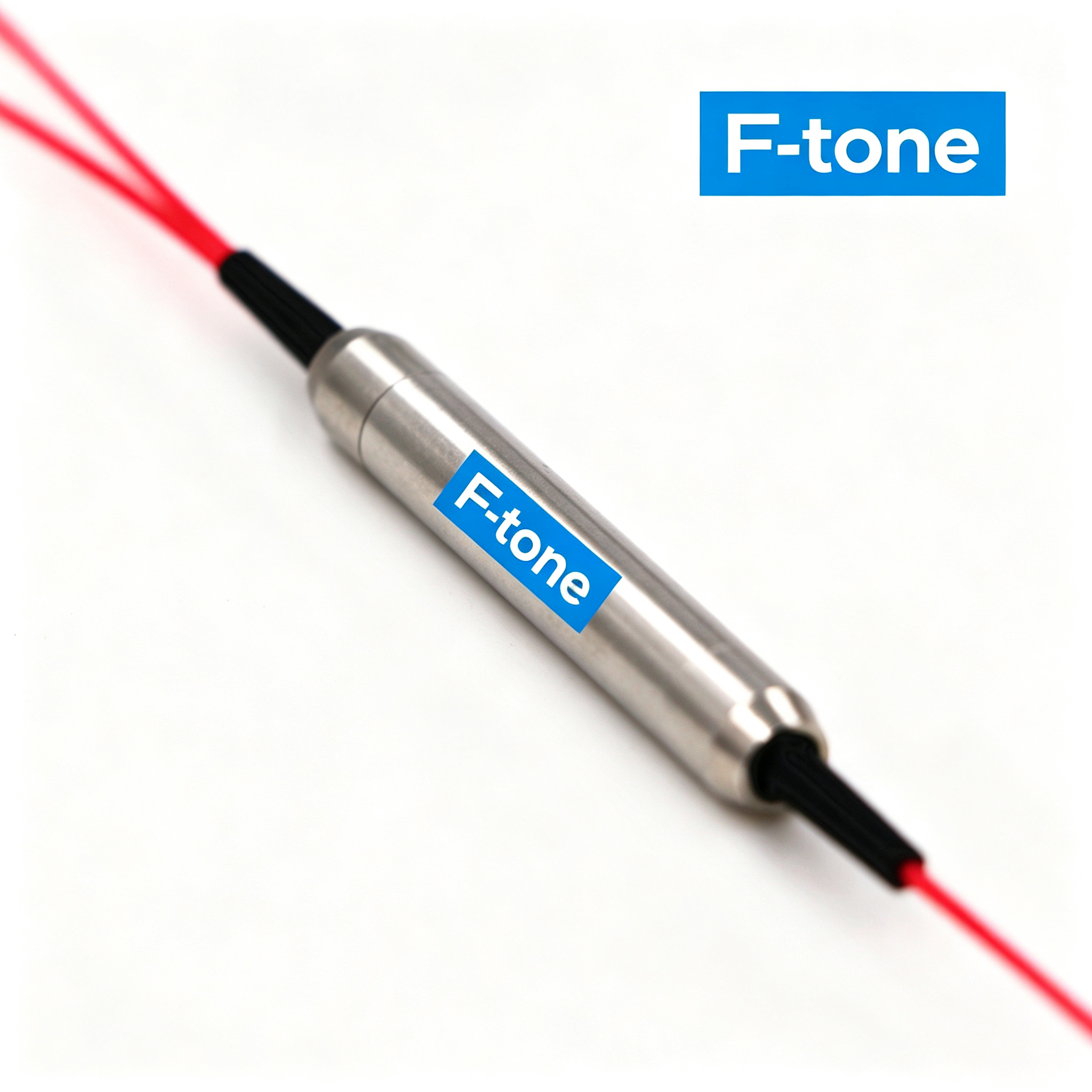

Isolator & Polarization Beam Splitter/Combiner (IPBC/IPBS) |
||||||||||
|
|
|
|||||||||
|
Features |
Applications |
|||||||||
|
Low Insertion Loss |
EDFA & Raman Amplifier |
|||||||||
|
High Return Loss |
Fiber Sensora |
|||||||||
|
High Extinction Ratio |
Coherent Telecommunication Systems |
|||||||||
|
High Reliability & Stability |
Polarization Mode Dispersion Compensator
|
|||||||||
|
|
|
|||||||||
|
Specifications |
||||||||||
|
Parameters |
Unit |
Values |
||||||||
|
Stage |
– |
Single |
Dual |
|||||||
|
Center Wavelength |
nm |
2000 |
1550,1310 |
1064 |
2000 |
1550,1310 |
||||
|
Operating Wavelength Range |
nm |
±20 |
±20 |
±5 |
±20 |
±20 |
||||
|
Typ. Insertion Loss at 23℃ |
dB |
0.6 |
0.45 |
1.8 |
0.7 |
0.55 |
||||
|
Max. Insertion Loss at 23℃ |
dB |
1.2 |
0.70 |
2.1 |
1.3 |
0.80 |
||||
|
Typ. Reversed Isolation at 23℃ (Port 3 to Port 1 or 2) |
dB |
35 |
35 |
35 |
51 |
51 |
||||
|
Min. Isolation at 23℃ (Port 3 to Port 1 or 2) |
dB |
20 |
20 |
25 |
42 |
42 |
||||
|
Min. Extinction Ratio at 23℃ |
dB |
20 |
20 |
20 |
20 |
25 |
||||
|
Directivity |
dB |
50 |
||||||||
|
Min. Return Loss |
dB |
50 |
||||||||
|
Max. Optical Power (CW) |
mW |
300 |
||||||||
|
Max. Tensile Load |
N |
5 |
||||||||
|
Fiber Type |
Port 1 & 2 |
– |
PM Panda fiber |
|||||||
|
Port 3 |
– |
PM Panda fiber, SMF-28E or Hi1060 |
||||||||
|
Operating Temperature |
℃ |
-5~+70 |
||||||||
|
Storage Temperature |
℃ |
-40~+85 |
||||||||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, FTL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
|
||||||||||
|
Ordering Information |
||||||||||
|
IPBC–1111-23-444-555-67-8-999 / IPBS-1111-23-444-555-67-8-999 |
||||||||||
|
1111 – Wavelength: |
2000=2000nm, 1550=1550nm, 1310=1310nm, 1064=1064nm,……. |
|||||||||
|
2 – Core Type: |
S=Single-core, D=Dual-core |
|||||||||
|
3 – Option for Port 3 to 1, 2: |
1=SM Fiber to PM Fiber (PBS) / PM Fiber to SM Fiber (PBC) 2=PM Fiber to PM Fiber, Port 3 is slow axis 0° aligned to Port 1 3=PM Fiber to PM Fiber, Port 3 is slow axis 45° aligned to Port 1 |
|||||||||
|
444 – Fiber Type for Port 3: |
001=PM1550, 003=PM980, 004=Hi1060, 008=SMF-28E, SSS=Specify |
|||||||||
|
555 – Fiber Type for Port 1 & 2: |
001=PM1550, 003=PM980, SSS=Specify |
|||||||||
|
6 – Package Dimension: |
0=φ5.5x35mm, 1=φ5.5x50mm, S=Specify |
|||||||||
|
7 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
|||||||||
|
8 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
|||||||||
|
999 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
|||||||||
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
