Features:
- Support multi protocol from 9.95Gb/s to 11.3Gb/s
- Hot pluggable 30 pin connector
- Compliant with XFP MSA
- Transmission distance of 40km over single mode fiber
- DWDM EML laser transmitter
- 100GHz ITU Grid, C Band
- Duplex LC connector
- 2-wire interface for management and diagnostic monitor
- XFI electrical interface with AC coupling
- Power supply voltages: +3.3V, +5V
- Temperature range 0°C to 70°C
- Power dissipation: <3.5W
- RoHS Compliant Part
Applications:
- 10GBASE-ER/EW Ethernet
- SONET OC-192 /SDH
- 40km 10G FC
- DWDM Networks
Transceiver Types:

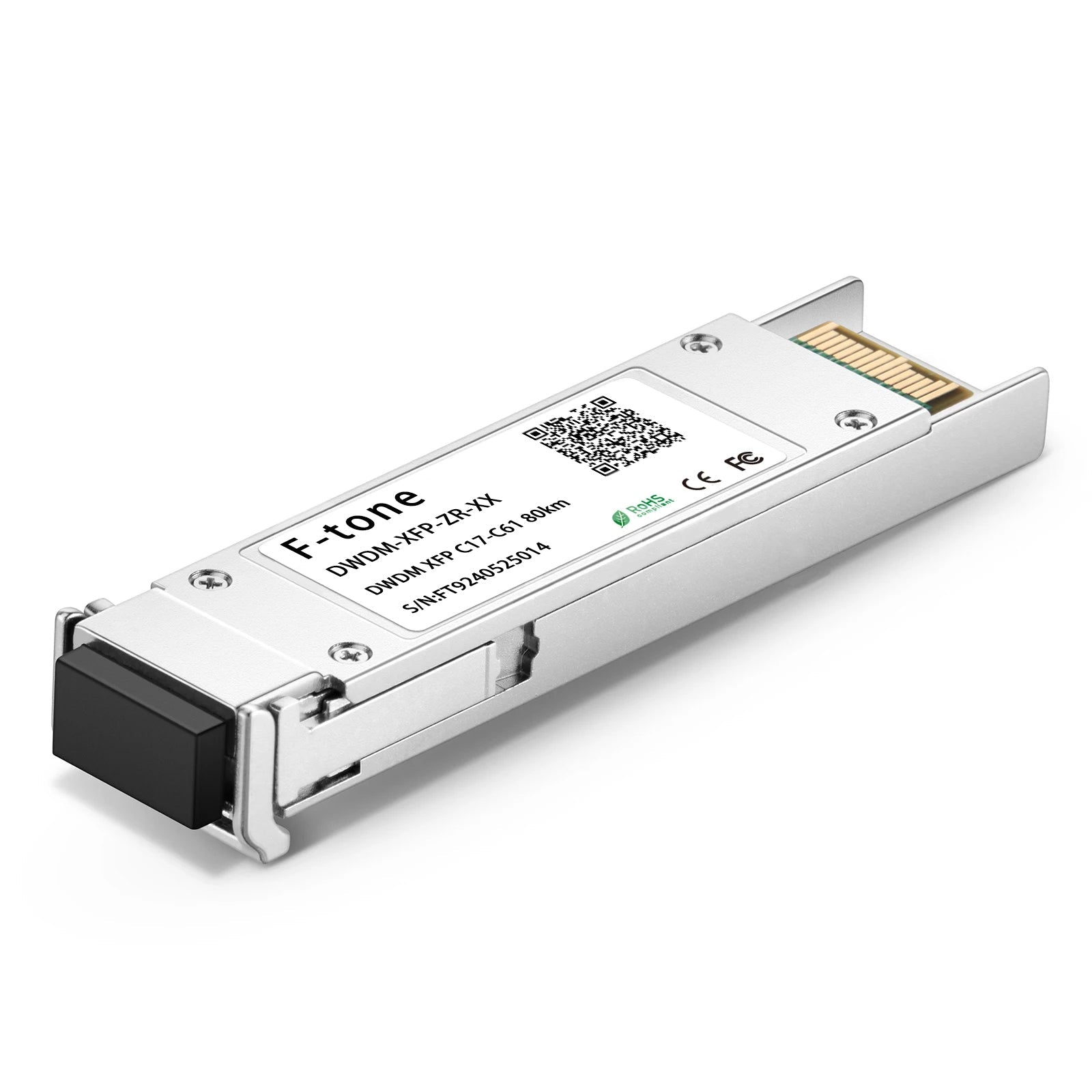

XFP 10G DWDM C17-C61 40km Transceiver
Hot Pluggable, Duplex LC, 100GHz, DWDM EML, Single mode
FXPD-10GD40-CXX
Description:
F-tone’s FXPD-10GD40-CXX Small Form Factor 10Gb/s (XFP) transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. The high performance cooled DWDM EML transmitter and high sensitivity PIN receiver provides superior performance for SONET/SDH, 10G FC and Ethernet applications up to 40km optical links.
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Storage Temperature |
TST |
-40 |
+85 |
℃ |
|
Case Operating Temperature |
TIP |
0 |
+70 |
℃ |
|
Supply Voltage 1 |
VCC3 |
-0.5 |
+4.0 |
V |
|
Supply Voltage 2 |
VCC5 |
-0.5 |
+6.0 |
V |
Electrical Characteristics (TOP= 0 to70 °C)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Note |
|
Supply Voltage 1 |
Vcc5 |
4.75 |
|
5.25 |
V |
|
|
Supply Voltage 2 |
Vcc3 |
3.13 |
|
3.45 |
V |
|
|
Supply Current – Vcc5 supply |
Icc5 |
|
|
250 |
mA |
|
|
Supply Current – Vcc3 supply |
Icc3 |
|
|
500 |
mA |
|
|
Module total power |
P |
|
|
3.5 |
W |
|
|
Transmitter |
||||||
|
Input differential impedance |
Rin |
|
100 |
|
Ω |
1 |
|
Differential data input swing |
Vin,pp |
150 |
|
820 |
mV |
|
|
Transmit Disable Voltage |
VD |
2.0 |
|
Vcc |
V |
|
|
Transmit Enable Voltage |
VEN |
GND |
|
GND+ 0.8 |
V |
|
|
Transmit Disable Assert Time |
T_off |
|
|
100 |
ms |
|
|
Tx Enable Assert Time |
T_on |
|
|
100 |
ms |
|
|
Receiver |
||||||
|
Differential data output swing |
Vout,pp |
300 |
500 |
850 |
mV |
|
|
Data output rise time |
tr |
|
|
35 |
ps |
2 |
|
Data output fall time |
tf |
|
|
35 |
ps |
2 |
|
LOS Fault |
VLOS fault |
Vcc – 0.5 |
|
VccHOST |
V |
3 |
|
LOS Normal |
VLOS norm |
GND |
|
GND+0.5 |
V |
3 |
|
Power Supply Rejection |
PSR |
See Note 4 below |
4 |
|||
Notes
1. After internal AC coupling.
2. 20 – 80 %
3.Loss of Signal is open collector to be pulled up with a 4.7k – 10kohm resistor to 3.15 – 3.6V. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
4. Per Section 2.7.1. in the XFP MSA Specification.
Optical Parameters (TOP= 0 to70°C)
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Ref. |
|
Transmitter |
||||||
|
Operating Date Rate |
BR |
9.95 |
|
11.3 |
Gb/s |
|
|
Bit Error Rate |
BER |
|
|
10-12 |
|
|
|
Maximum Launch Power |
PMAX |
-1 |
|
+4 |
dBm |
1 |
|
Optical Wavelength-End of Life |
λ |
X-100 |
X |
X+100 |
pm |
|
|
Optical Wavelength-Beginning of Life |
λ |
X-25 |
X |
X+25 |
pm |
|
|
Optical Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Spectral Width@-20dB |
Δλ |
|
|
1 |
nm |
|
|
Sidemode Supression ratio |
SSRmin |
30 |
|
|
dB |
|
|
Rise/Fall Time (20%~80%) |
Tr/Tf |
|
|
35 |
ps |
|
|
Average Launch power of OFF Transmitter |
POFF |
|
|
-30 |
dBm |
|
|
Tx Jitter |
Txj |
Compliant with each standard requirement |
|
|||
|
Optical Eye Mask |
|
IEEE802.3ae |
2 |
|||
|
Receiver |
||||||
|
Operating Date Rate |
BR |
9.95 |
|
11.3 |
Gb/s |
|
|
Receiver Sensitivity |
Sen |
|
|
-16 |
dBm |
2 |
|
Maximum Input Power |
PMAX |
0 |
|
|
dBm |
2 |
|
Optical Center Wavelength |
λC |
1260 |
|
1600 |
nm |
|
|
Receiver Reflectance |
Rrx |
|
|
-27 |
dB |
|
|
LOS De-Assert |
LOSD |
|
|
-17 |
dBm |
|
|
LOS Assert |
LOSA |
-27 |
|
|
dBm |
|
|
LOS Hysteresis |
LOSH |
0.5 |
|
5 |
dB |
|
Notes:
1. The optical power is launched into SMF.
2. Measured with a PRBS 231-1 test pattern @10.3125Gbps BER<10-12.
Pin Assignment
Diagram of Host Board Connector Block Pin Numbers and Name
Mechanical Dimensions
Order Information:
FXPD-10GD40-CXX XX: 100GHZ ITU Grid Wavelength
|
Part No. |
Central Wavelength(nm) |
Frequency (THZ) |
|
FXPD-10GD40-C61 |
1528.77 |
196.1 |
|
FXPD-10GD40-C60 |
1529.55 |
196.0 |
|
FXPD-10GD40-C59 |
1530.33 |
195.9 |
|
FXPD-10GD40-C58 |
1531.12 |
195.8 |
|
FXPD-10GD40-C57 |
1531.90 |
195.7 |
|
FXPD-10GD40-C56 |
1532.68 |
195.6 |
|
FXPD-10GD40-C55 |
1533.47 |
195.5 |
|
FXPD-10GD40-C54 |
1534.25 |
195.4 |
|
FXPD-10GD40-C53 |
1535.04 |
195.3 |
|
FXPD-10GD40-C52 |
1535.82 |
195.2 |
|
FXPD-10GD40-C51 |
1536.61 |
195.1 |
|
FXPD-10GD40-C50 |
1537.40 |
195.0 |
|
FXPD-10GD40-C49 |
1538.19 |
194.9 |
|
FXPD-10GD40-C48 |
1538.98 |
194.8 |
|
FXPD-10GD40-C47 |
1539.77 |
194.7 |
|
FXPD-10GD40-C46 |
1540.56 |
194.6 |
|
FXPD-10GD40-C45 |
1541.35 |
194.5 |
|
FXPD-10GD40-C44 |
1542.14 |
194.4 |
|
FXPD-10GD40-C43 |
1542.94 |
194.3 |
|
FXPD-10GD40-C42 |
1543.73 |
194.2 |
|
FXPD-10GD40-C41 |
1544.53 |
194.1 |
|
FXPD-10GD40-C40 |
1545.32 |
194.0 |
|
FXPD-10GD40-C39 |
1546.12 |
193.9 |
|
FXPD-10GD40-C38 |
1546.92 |
193.8 |
|
FXPD-10GD40-C37 |
1547.72 |
193.7 |
|
FXPD-10GD40-C36 |
1548.51 |
193.6 |
|
FXPD-10GD40-C35 |
1549.32 |
193.5 |
|
FXPD-10GD40-C34 |
1550.12 |
193.4 |
|
FXPD-10GD40-C33 |
1550.92 |
193.3 |
|
FXPD-10GD40-C32 |
1551.72 |
193.2 |
|
FXPD-10GD40-C31 |
1552.52 |
193.1 |
|
FXPD-10GD40-C30 |
1553.33 |
193.0 |
|
FXPD-10GD40-C29 |
1554.13 |
192.9 |
|
FXPD-10GD40-C28 |
1554.94 |
192.8 |
|
FXPD-10GD40-C27 |
1555.75 |
192.7 |
|
FXPD-10GD40-C26 |
1556.55 |
192.6 |
|
FXPD-10GD40-C25 |
1557.36 |
192.5 |
|
FXPD-10GD40-C24 |
1558.17 |
192.4 |
|
FXPD-10GD40-C23 |
1558.98 |
192.3 |
|
FXPD-10GD40-C22 |
1559.79 |
192.2 |
|
FXPD-10GD40-C21 |
1560.61 |
192.1 |
|
FXPD-10GD40-C20 |
1561.42 |
192.0 |
|
FXPD-10GD40-C19 |
1562.23 |
191.9 |
|
FXPD-10GD40-C18 |
1563.05 |
191.8 |
|
FXPD-10GD40-C17 |
1563.86 |
191.7 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks FT-81系列产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
