消除端接错误，最短安装时间每根电缆都经过 100% 测试，以实现低插入损耗和背向反射优化性能 – MTP 和分立高级连接器在适用的并行光学网络中支持 40GBASE-SR4 符合 IEC-61754-7 和 TIA-604-5(FOCIS-5) ） 标准
如何选择正确的光纤跳线类型 PS：OM4和OM3光纤模式的区别如下 1. OM4 专为 VCSEL 激光传输而开发，允许 10 Gig/秒的链路距离长达 550 米（OM3 为 300M）。 2. OM4的有效模态带宽是OM3的两倍以上。 3. OM4 跳线为 4700 MHz.km，OM3 为 2000 MHz.km。
a.高性能研磨机，并辅以专为MT插芯设计的精密板架。 b.3D干涉仪提供MTP/MPO研磨工艺验证，使研磨后的MT插芯所有参数符合并超过行业标准。 c.测试仪的灵活性提供了复杂和高光纤数光缆组件所需的完整光学测试范围。

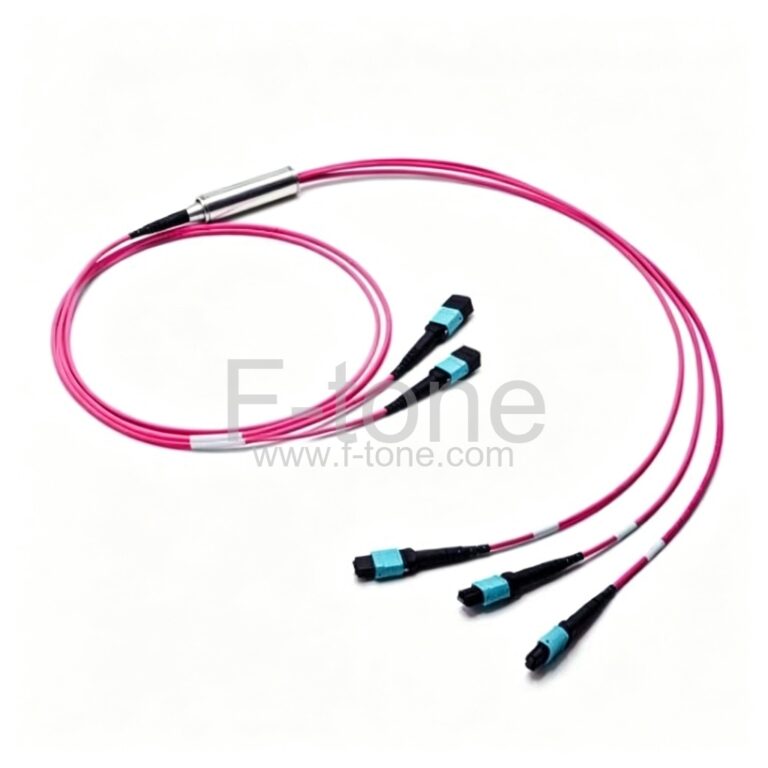

| Fiber Connector | 2xMTP to 3xMTP | Jacket OD | 3.0 mm |
| Fiber Category | 50/125 m MM (OM4) | Gender | Female to Female |
| Fiber Count | 24 | Test Wavelength | 850nm |
| Insertion Loss | 0.6dB | Return Loss | 20dB |
| Polarity | Type B (Full-Flipped) | Durability | 500 times |
| Operating temperature | -40 ~ 80C | Fiber Grade | G651 |
| Flame Rating | LSZH | Outer Jacket Color | Magenta |
|
消除端接错误，最短安装时间每根电缆都经过 100% 测试，以实现低插入损耗和背向反射优化性能 – MTP 和分立高级连接器在适用的并行光学网络中支持 40GBASE-SR4 符合 IEC-61754-7 和 TIA-604-5(FOCIS-5) ） 标准 |
|
| Designation | Fiber Dia.( m) | Type | 10Gbps Ethernet 10GBASE SR/LR | 40Gbps Ethernet 40GBASE SR4/PLRL4 | 100Gbps Ethernet 100GBASE SR10/IR4 |
| OM1 | 62.5/125 | Multimode | 33 Meters (SR) | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 82 Meters (SR) | Not supported | Not supported |
| OM3 (Laser Optimized) | 50/125 | Multimode | 300 Meters (SR) | 100 Meters (SR4) | 100 Meters (SR10) |
| OM4 (Laser Optimized) | 50/125 | Multimode | 400 Meters (SR) | 150 Meters (SR4) | 150 Meters (SR10) |
| Singlemode | 9/125 | Singlemode | 10 KM at 1310nm (LR) | 1KM (PLRL4) | 2KM (IR4 PSM) |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
