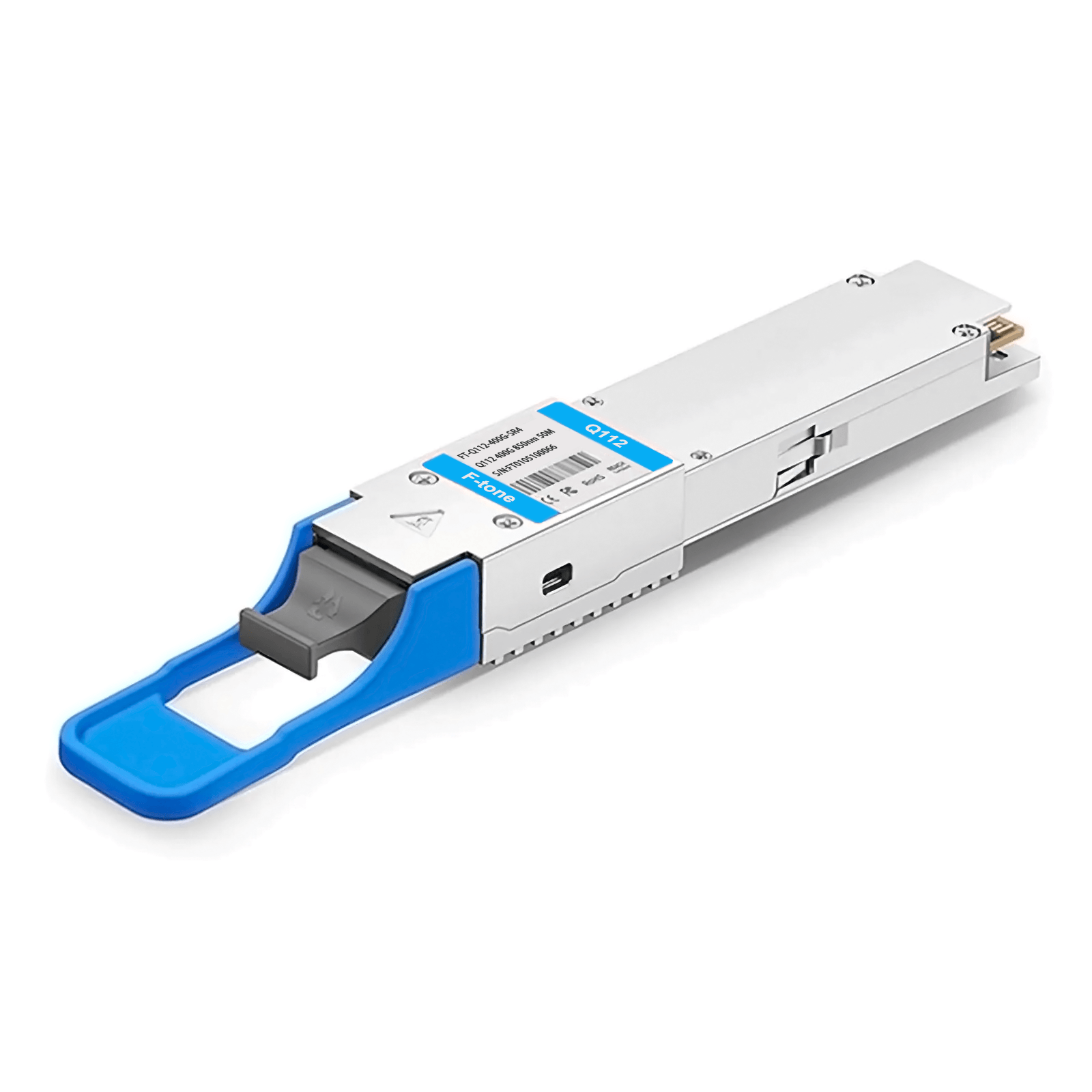

400G QSFP112 SR4 MM 850nm 100m光收发模块

400G QSFP112 SR4 MM 850nm 100m光收发模块

Feature：

Support 100GBASE per lane in multi mode fiber

Hot-pluggable QSFP112 Type 1 form factor

Data rate up to 425Gbps (4x 106.25Gbps )

Reach up to 100m on MMF(OM4)

850nm VCSEL laser and PIN receiver

High speed I/O electrical interface (400GAUI-4)

Single MPO- 12 receptacle

Operating case temperature : 0 to +70°C

Compliant to RoHS 6/6

Compliant to 400G QSFP112 MSA and CMIS4.0




Application

InfiniBand NDR

400G SR4 applications with FEC

4 x 100GbE breakout application

产品型号
Product Model

速率
Data Rate

接头类型
Port

单多模
Fiber

波长
Wave(nm)

传输距离
Distance

电压
Voltage

温度
Temp. (℃)

FTQP112-400G-SR4

400Gbps

MPO12 APC

MMF

850nm

100m

3.3V

 0~70

工作温度：商业级/工业级/军品级可选

本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
