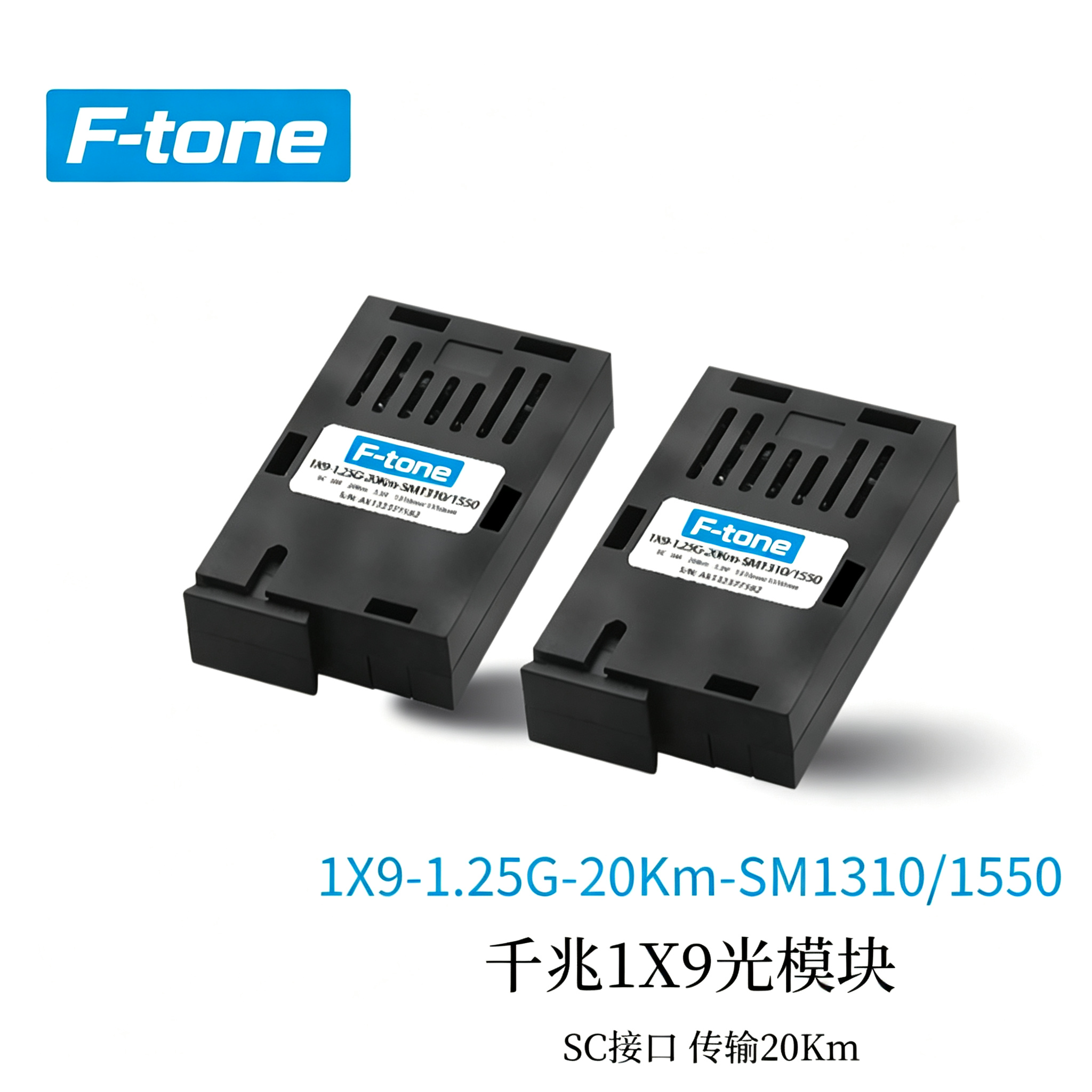

1*9光模块 2M BIDI ST 20KM | F-tone 北亿纤通

Feature：

SC/FC/ST receptacle optical interface and pigtail optical interface

Single-mode Duplex fibers Optical Module

Standard +3.3V/ or +5V Power Supply

Standard TTL data output with signal detect indication, compatible with CMOS level

Standard1×9 package

Transmit as MQW 1310nm FP LD/ 1550nm DFB LD

Super low power consumption, applied to some special requirement

Optional transmission bit rate with down to 0bps and up to 2Mbps

Application

RS232/RS485/RS422 receptacle fiber transmission

Industrial control with bit rate up to DC 2Mbps

Electric power control

Other optic link

产品型号 Product Model	速率 Data Rate	接头类型 Port	单多模 Fiber	波长 Wave(nm)	传输距离 Distance (KM)	电压 Voltage	信号电平 Signal Level	温度 Temp. (℃)
FT-WX352-S*	2Mbps	SC	BIDI	SM 1310nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX532-S*	2Mbps	SC	BIDI	SM 1550nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX354–S*	2Mbps	SC	BIDI	SM 1310nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX534–S*	2Mbps	SC	BIDI	SM 1550nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX352-F*	2Mbps	FC	BIDI	SM 1310nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX532-F*	2Mbps	FC	BIDI	SM 1550nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX354–F*	2Mbps	FC	BIDI	SM 1310nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX534–F*	2Mbps	FC	BIDI	SM 1550nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX352-T*	2Mbps	ST	BIDI	SM 1310nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX532-T*	2Mbps	ST	BIDI	SM 1550nm	20KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX354–T*	2Mbps	ST	BIDI	SM 1310nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃
FT-WX534–T*	2Mbps	ST	BIDI	SM 1550nm	40KM	3.3V/5V	LVTTL/TTL	0℃~70℃ / -40℃~85℃

工作温度：商业级/工业级/军品级可选

本产品为北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. Further details are available from any Andxe System sales representative.
