产品特点
- E2000-ST 连接器
- 多模单芯光纤跳线
- 微米：50/125um
- 配有朗讯科技水色外护套
- 带宽传输速率高达 10 GB
- 我们所有的光纤跳线均配备高等级连接器
- 100% 光学测试，确保高性能
- 颜色: 水色
- 光纤等级：OM3

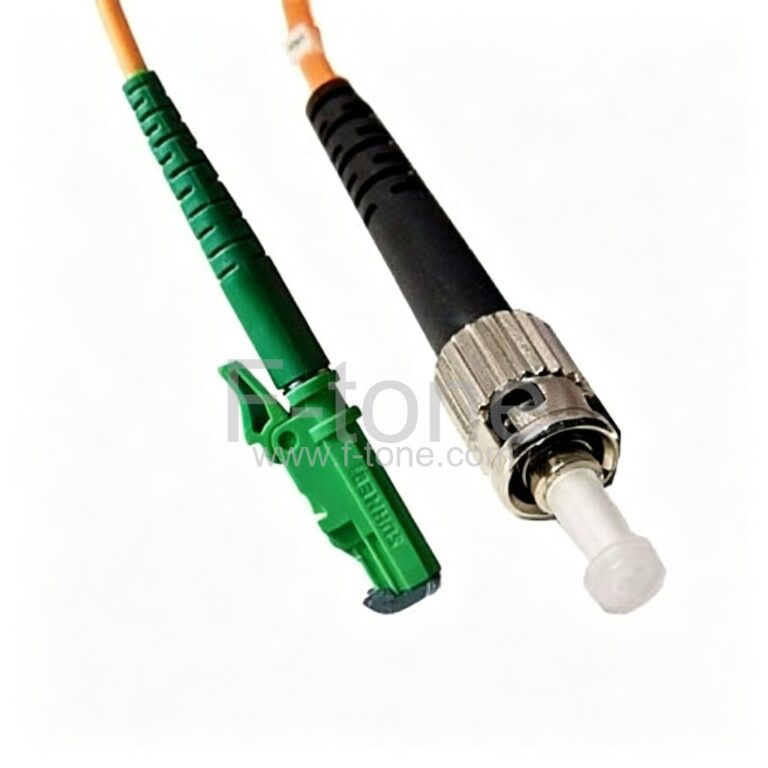

我们的 E2000-ST OM3 50/125 多模单芯光纤跳线在高带宽应用中提供 10 GB 数据传输速度，比标准 50um 光纤跳线快五倍。 这些 aqua OM3 10G 50/125 光纤跳线的末端带有 E2000 连接器和 ST 连接器，可与 VCSEL 激光和 LED 源配合使用。 此外，我们的 10G 光纤跳线经过 100% 光学测试，以实现最佳性能。 我们提供所有长度和连接器。
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850,1310 | 850,1310 | 850,1310 | 850,1310 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
