产品特点

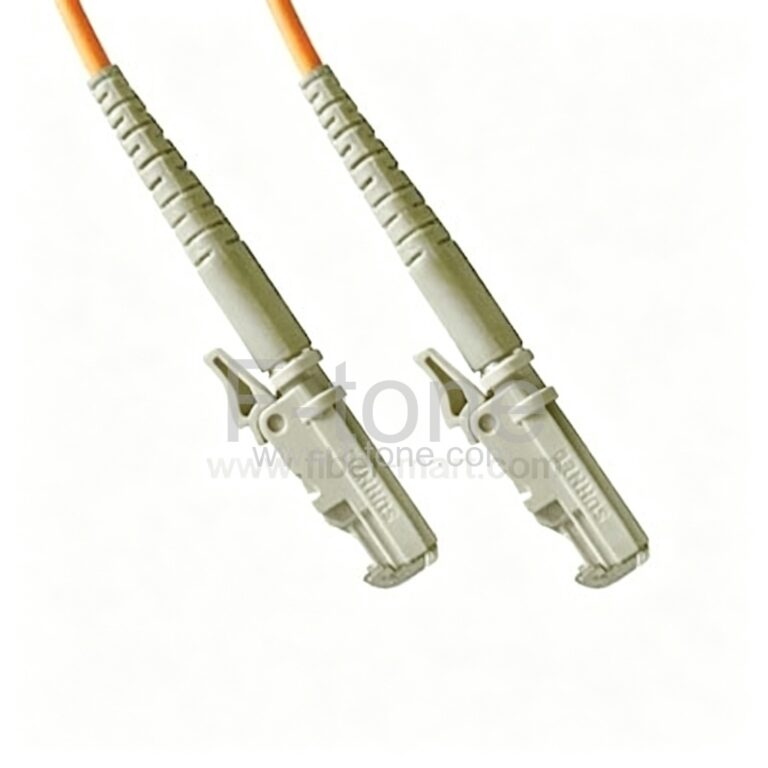

- FC-E2000 连接器
- 多模单芯光纤跳线
- 微米：50/125um
- 配有朗讯科技水色外护套
- 带宽传输速率高达 10 GB
- 我们所有的光纤跳线均配备高等级连接器
- 100% 光学测试，确保高性能
- 光纤等级：OM2
光纤跳线也称为光纤跳线或光纤跳线。光纤跳线是光纤网络中最常用的组件之一。 多模中“模式”的定义是指光纤光在光缆芯中的传输模式，多模同时传输多种光线或模式。 光纤跳线用于连接光纤网络中的设备和组件。 多模光纤跳线采用 50/125 或 62.5/125 玻璃纤维，颜色为橙色。
| Specification | Unit | FC, SC, LC/Armored Cables | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | Multi-mode | Single-mode | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Wavelength | nm | 850，1310,1510 | 850，1310,1510 | 850，1310,1510 | 850，1310,1510 | ||||||||
| Interchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | ℃ | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | ℃ | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
工作温度：商业级/工业级/军品级可选
本产品为 北亿纤通 | F-tone Networks 产品线，详细信息，请联系我们的销售人员，谢谢！ Important Notice Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
