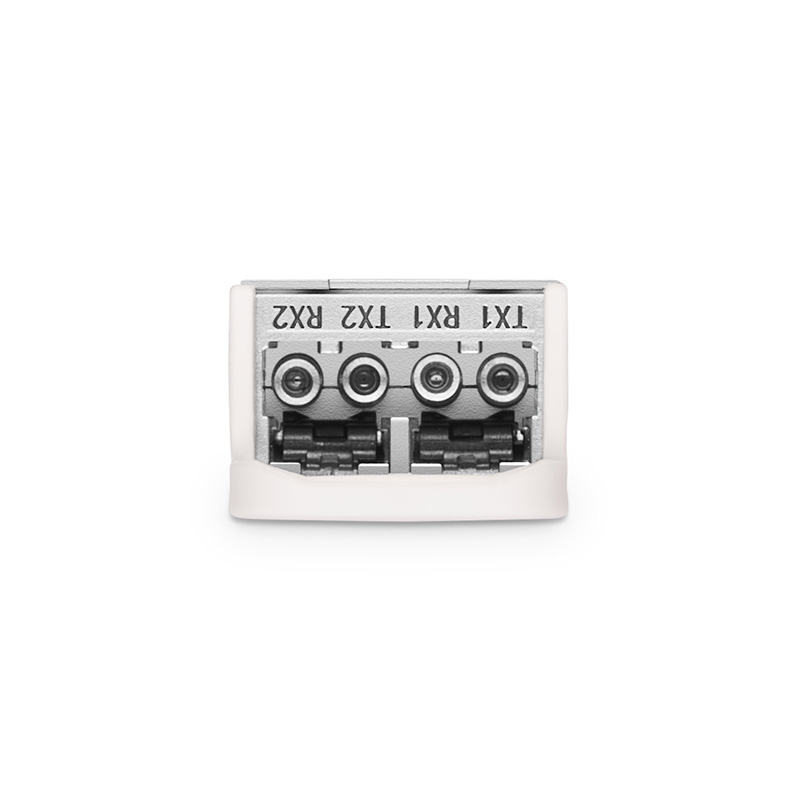

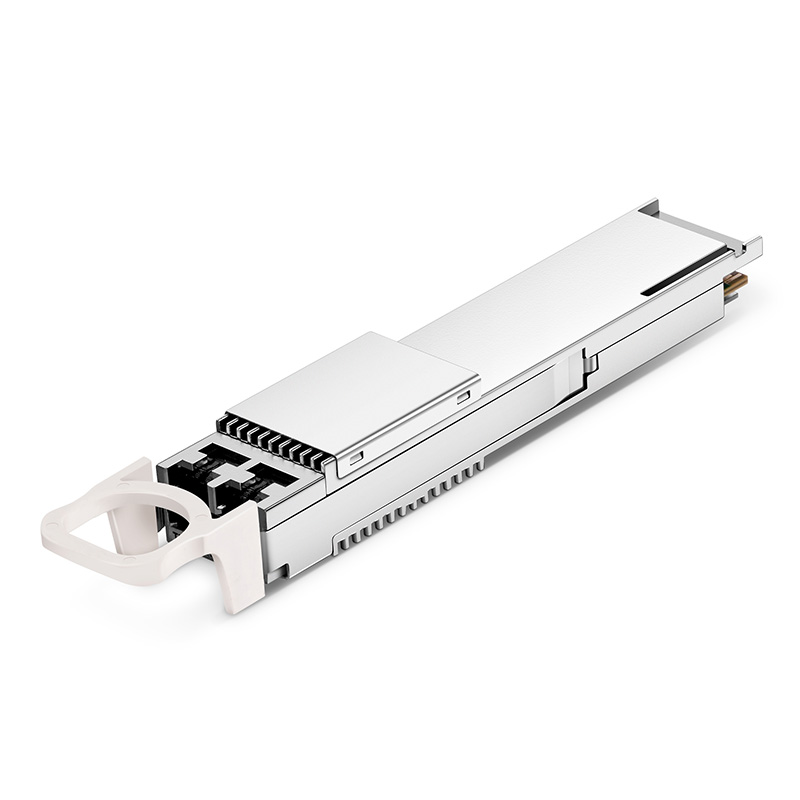

Q28-OD100G04-25C 100G QSFP28 O-band DWDM PAM4 Single Wave C04 1298.93nm 100GHz Duplex LC 25km DDM Optical Transceiver Module

Q28-OD100G04-25C — F-tone Q28-OD100G04-25C 100G QSFP28 single-wave module uses 1298.93nm wave length, it adopts PAM4 modulation in the O-band DWDM range, and the transmission distance is 25km.

产品详情

产品参数 — F-tone
F-tone型号	Q28-OD100G04-25C	制造商名称	F-tone
封装	QSFP28	传输速率	100Gbps
波长	1298.93nm	最远传输距离	25km
接口类型	双工 LC	发射激光器类型	EML
线缆类型	单模(SMF)	光接收器件类型	APD
是否支持DDM	Yes	调制技术	PAM4
发射光功率	0~+5.6dBm	接收灵敏度	< -15.0dBm
协议	QSFP28 MSA, SFF-8636	工作温度	商业级/工业级/军品级可选

F-tone型号	Q28-OD100G04-25C	制造商名称	F-tone
封装	QSFP28	传输速率	100Gbps
波长	1298.93nm	最远传输距离	25km
接口类型	双工 LC	发射激光器类型	EML
线缆类型	单模(SMF)	光接收器件类型	APD
是否支持DDM	Yes	调制技术	PAM4
发射光功率	0~+5.6dBm	接收灵敏度	< -15.0dBm
协议	QSFP28 MSA, SFF-8636	工作温度	商业级/工业级/军品级可选

v Single-lambda 100Gbps transmission

v O-band DWDM with 200GHz channel spacing

v Aligned to 800GHz spacing LAN-WDM grid

v Up to 25km over G.652 SMF

v Duplex LC connector

v PAM4 optical signal with integrated FEC

v 4×25.78Gbps CAUI-4 host interface

v Compliant with QSFP28 MSA SFF-8636

v QSFP28 MSA digital monitoring functions

v Safety Certification: TUV/UL/FDA*Note1

v RoHS Compliant

Applications

v 100GbE multiple channels transmissions using O-band DWDM wavelengths

100G QSFP28 O-band DWDM PAM4 C04 Optical Transceiver Module (1298.93nm Duplex LC SMF 25km DDM)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
