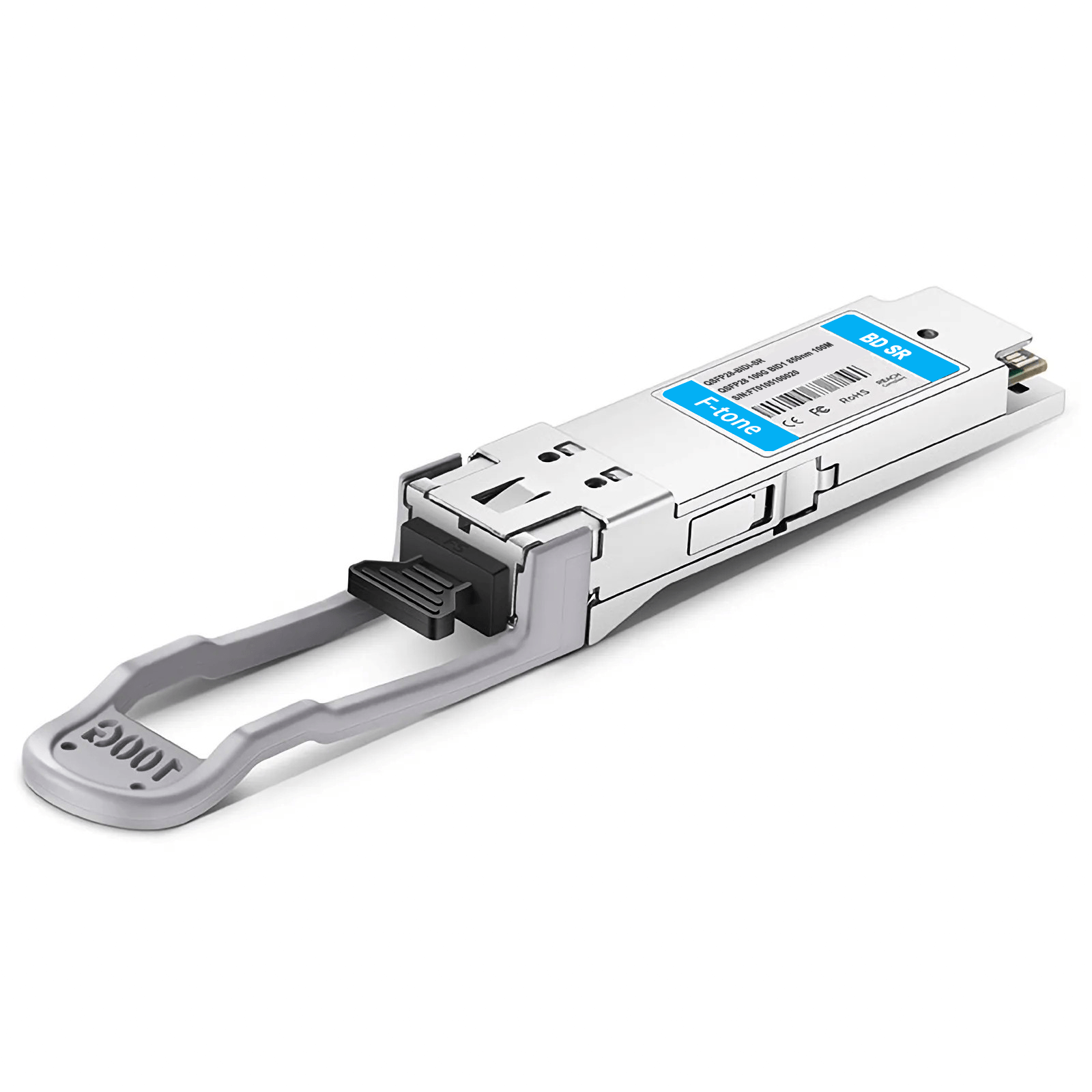

QSFP28-100G-BDRX 100G QSFP28 BIDI 850nm & 900nm Only Receiver 100m LC MMF Optical Transceiver

QSFP28-100G-BDRX — F-tone QSFP28-100G-BDRX QSFP 100G Bi-Directional Optical Transceiver supports 100m transmission over SMF with duplex LC connectors, which is with DDM function.

产品详情

产品参数 — F-tone
F-tone型号	QSFP28-100G-BDRX	制造商名称	F-tone
封装	QSFP28	传输速率	100Gbps
波长	850nm & 900nm	最远传输距离	100m
接口类型	双工 LC	线缆类型	多模(MMF)
光接收器件类型	PIN	接收灵敏度	<-8.0dBm
Host FEC	Turned off	调制技术	PAM4
协议	100G 以太网，符合 QSFP28 MSA	工作温度	商业级/工业级/军品级可选

F-tone型号	QSFP28-100G-BDRX	制造商名称	F-tone
封装	QSFP28	传输速率	100Gbps
波长	850nm & 900nm	最远传输距离	100m
接口类型	双工 LC	线缆类型	多模(MMF)
光接收器件类型	PIN	接收灵敏度	<-8.0dBm
Host FEC	Turned off	调制技术	PAM4
协议	100G 以太网，符合 QSFP28 MSA	工作温度	商业级/工业级/军品级可选

v Compliant with the 100GbE XLPPI electrical specification per IEEE 802.3bm

v Compliant to QSFP28 SFF-8636 Specification

v Aggregate bandwidth of > 100Gbps

v Dual wavelength optical interface, PAM4 2 × 50-Gb/s 850nm/900nm Only Receiver

v QSFP28 MSA compliant

v Single +3.3V power supply operating

v RoHS Compliant Part

v Each electrical lane operates at 25.78125 Gbps and conforms to the 100GE CAUI4 interface with the host FEC turned off.

v Utilizes a standard LC duplex fiber cable allowing the reuse of existing cable infrastructure

v Supports 100 Gigabit Ethernet interconnects, Datacom/Telecom switch & router connections, Data aggregation and backplane applications, and Proprietary protocol and density applications

100G QSFP28 BIDI Optical Transceiver (850nm & 900nm MMF 100m LC DDM Only Receiver)

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
