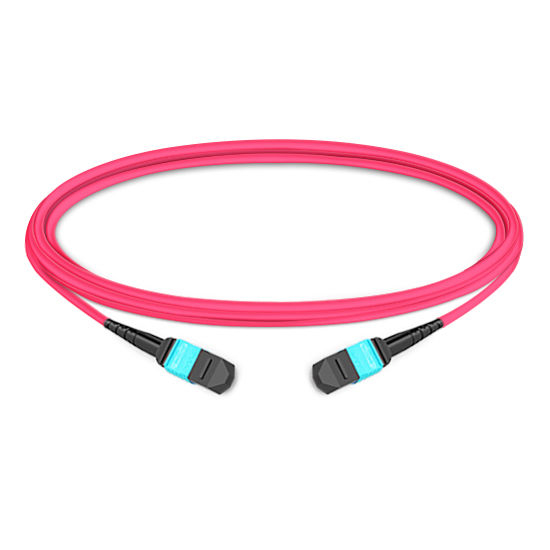

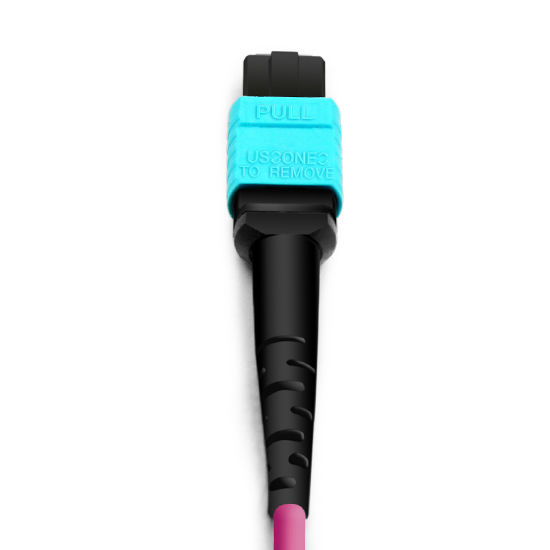

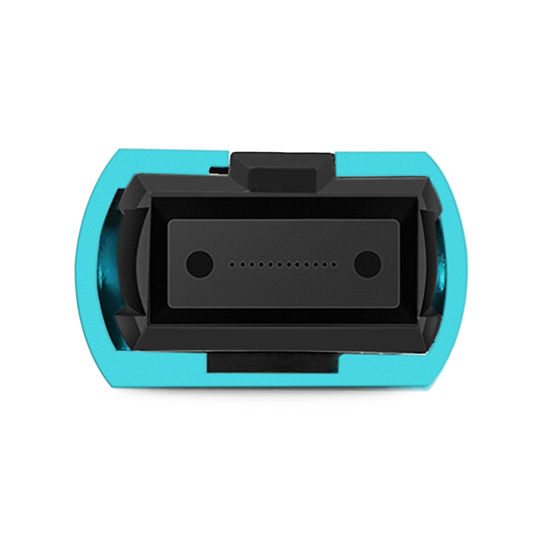

12 Fibers female-female MTP trunk cable Polarity B. Made of LSZH material & designed for OM4 MMF networks, it offers high bandwidth & low loss connectivity up to 2m.
产品详情
| 产品参数 — F-tone | |||
| Connector A | MTP Female (US Conec) | Connector B | MTP Female (US Conec) |
| 光纤类型 | OM4 50/125μm Multimode | 波长 | 850/1300nm |
| Fiber Count | 12 Fibers | Distance | 2m (7ft) |
| 玻璃纤维 | Corning ClearCurve® | 电缆护套 | 低烟无卤 |
| 抛光型 | UPC to UPC | 最小弯曲半径 | 7.5mm |
| 插入损耗 | 0.35dB Max (0.15dB Typ.) | 回波损耗 | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km | 1300nm 处的衰减 | ≤0.6 dB/km |
| 电缆直径 | 3.0mm | Fiber Color | Aqua/Violet |
| 安装拉伸载荷 | 66 N | 长期拉伸载荷 | 50 N |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | 商业级/工业级/军品级可选 |
| Connector A | MTP Female (US Conec) | Connector B | MTP Female (US Conec) |
| 光纤类型 | OM4 50/125μm Multimode | 波长 | 850/1300nm |
| Fiber Count | 12 Fibers | Distance | 2m (7ft) |
| 玻璃纤维 | Corning ClearCurve® | 电缆护套 | 低烟无卤 |
| 抛光型 | UPC to UPC | 最小弯曲半径 | 7.5mm |
| 插入损耗 | 0.35dB Max (0.15dB Typ.) | 回波损耗 | ≥20dB |
| 850nm 处的衰减 | ≤2.3 dB/km | 1300nm 处的衰减 | ≤0.6 dB/km |
| 电缆直径 | 3.0mm | Fiber Color | Aqua/Violet |
| 安装拉伸载荷 | 66 N | 长期拉伸载荷 | 50 N |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | -40°C to +85°C |

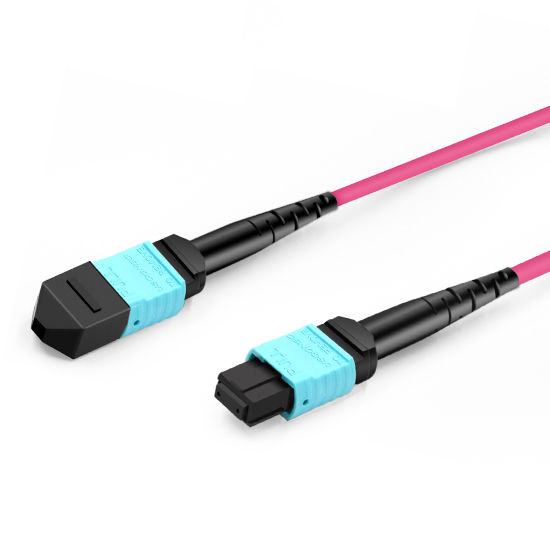

12 Fibers Multimode OM4 Elite MTP Patch Cable 2M (MTP to MTP Cable)
Quality Assurance
Quality Certification
our advantages
-
Short Lead Time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial Product Testing
Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
- 3D Interferometer Test
- End-Face Inspection
- Insertion Loss and Return Loss Testing
Specifications
Connectors
Fiber Count
8 fibers
MTP-LC Harness Cables
12 fibers
MTP Trunk Cables / MTP-LC Harness Cables
24 fibers
MTP Trunk Cables
Fiber Type
- OM3 50/125 MMF
- Corning ClearCurve Multimode Fiber
- OM4 50/125 MMF
- Corning ClearCurve Multimode Fiber
- OS2 9/125 SMF
- Corning SMF-28 Ultra Optical Fiber
Gender Type
- MTP Male With Pins
- MTP Female Without Pins
Polarity Type
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
