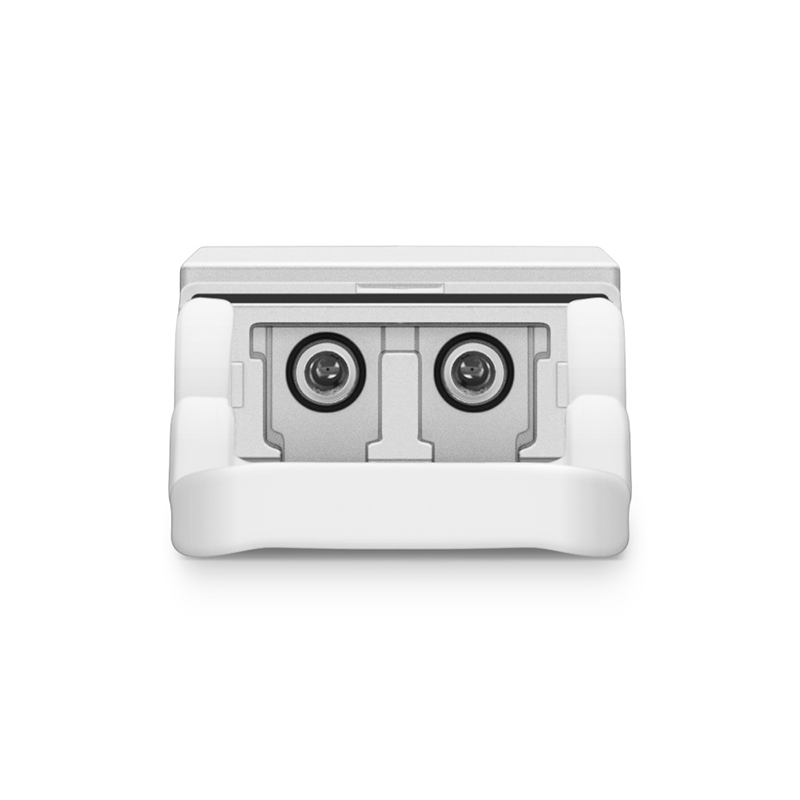

QSFPP-40G-ZR4-Lite — As a 40G ZR4 Lite Optical Transceiver, F-tone QSFPP-40G-ZR4-Lite features 60km transmission over SMF at CWMD4 wave length of 1271, 1291, 1311, and 1331nm.
产品详情
| 产品参数 — F-tone | |||
| F-tone型号 | QSFPP-40G-ZR4-Lite | 制造商名称 | F-tone |
| 封装 | QSFP+ | 传输速率 | 40Gbps |
| 波长 | 1271nm, 1291nm 1311nm, 1331nm | 最远传输距离 | 60km |
| 接口类型 | LC Duplex | 发射激光器类型 | CWDM DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | APD |
| 发射光功率 | +3.0~+7.0dBm | 接收灵敏度 | < -23.0dBm |
| 协议 | 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite, MSA, QDR/DDR Infiniband | 工作温度 | 商业级/工业级/军品级可选 |
| F-tone型号 | QSFPP-40G-ZR4-Lite | 制造商名称 | F-tone |
| 封装 | QSFP+ | 传输速率 | 40Gbps |
| 波长 | 1271nm, 1291nm 1311nm, 1331nm |
最远传输距离 | 60km |
| 接口类型 | LC Duplex | 发射激光器类型 | CWDM DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | APD |
| 发射光功率 | +3.0~+7.0dBm | 接收灵敏度 | < -23.0dBm |
| 协议 | 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite, MSA, QDR/DDR Infiniband | 工作温度 | 商业级/工业级/军品级可选 |
v 4 CWDM lanes MUX/DEMUX design
v Up to 11.2Gbps per channel bandwidth
v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ZR4 Lite
v QSFP MSA compliant
v Up to 60 km transmission
v Compliant with QDR/DDR Infiniband data rates
v Single +3.3V power supply operating
v RoHS Compliant Part
v Supports Data Centers Switches and Routers, Switches and Routers, Metro Networks, 40GBASE-ZR4 Lite
40G QSFP+ ZR4 Lite CWDM4 Optical Transceiver Module (1271nm, 1291nm, 1311nm, 1331nm SMF 60km LC DDM)
The 40G QSFP+ ZR4 Lite is a transceiver module designed for 60km optical communication applications. The design is compliant with 40GBASE-ER4 of the IEEEP802.3ba standard. The module converts 4 inputs channels of 10Gb/s electrical datato4CWDM optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. On the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals and converts them to 4-channel output electrical data.
Quality Assurance
Quality Certification
our advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding(EEPROM Programming)
- Testing system
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
