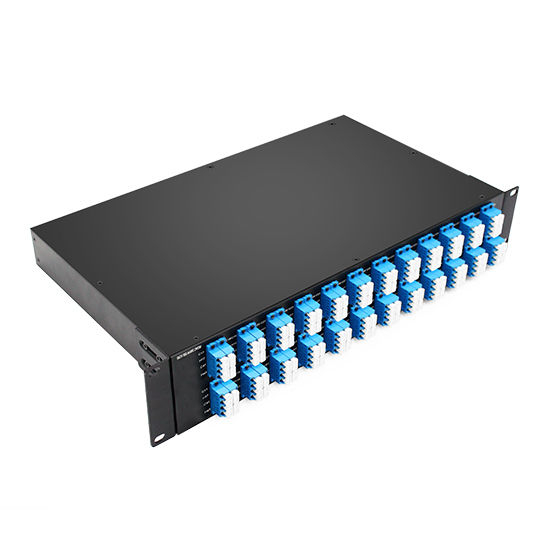

DWDM MUX DEMUX 50GHZ 96CH (C15-C62) LC/UPC Dual Fiber 2U Rack

DWDM — DWDM MUX DEMUX 50GHZ 96CH (C15-C62) LC/UPC Dual Fiber 2U Rack

产品详情

产品参数 — F-tone
工作波长	96 Channels C15-C62	通道间距	50GHz
波长精度	≤0.05nm	插入损耗	≤7.0dB
-1dB通道带宽	≥0.18nm	-3dB通道带宽	≥0.28nm
方向性	≥ 50dB	回波损耗	≥ 40dB
平整度	≤ 0.7dB	技术	AAWG
相邻信道隔离度	≥ 25dB	非邻通道隔离度	≥ 30dB
偏振相关损耗	≤ 0.8dB	偏振模色散	≤ 0.5ps
最大光功率	300mW	尺寸(HxWxD)	88x487x245mm
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

工作波长	96 Channels C15-C62	通道间距	50GHz
波长精度	≤0.05nm	插入损耗	≤7.0dB
-1dB通道带宽	≥0.18nm	-3dB通道带宽	≥0.28nm
方向性	≥ 50dB	回波损耗	≥ 40dB
平整度	≤ 0.7dB	技术	AAWG
相邻信道隔离度	≥ 25dB	非邻通道隔离度	≥ 30dB
偏振相关损耗	≤ 0.8dB	偏振模色散	≤ 0.5ps
最大光功率	300mW	尺寸(HxWxD)	88x487x245mm
工作温度	商业级/工业级/军品级可选	存储温度	-40°C～+85°C

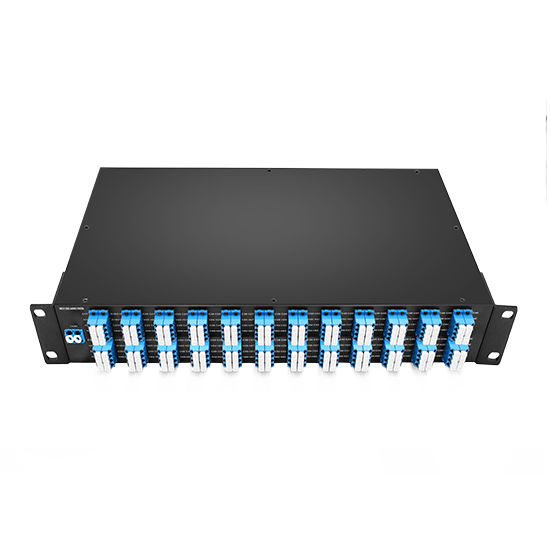

96 Channels C15-C62 DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC 2U Rack Mount Chassis

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Product Specification

Number of channels	4	8	16
Wavelength range	CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss	< 1.5dB	< 2.5dB	< 3.5dB
Isolation ratio of adjacent channels	>30dB	>30dB	>30dB
Isolation ratio of non-adjacent channels	>40dB	>40dB	>40dB
Return loss	>45dB	>45dB	>45dB
Direction	>50dB	>50dB	>50dB
Interface type	All interfaces are LC type
Work temperature	-40〜85℃
Storage temperature	-40〜85℃

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
