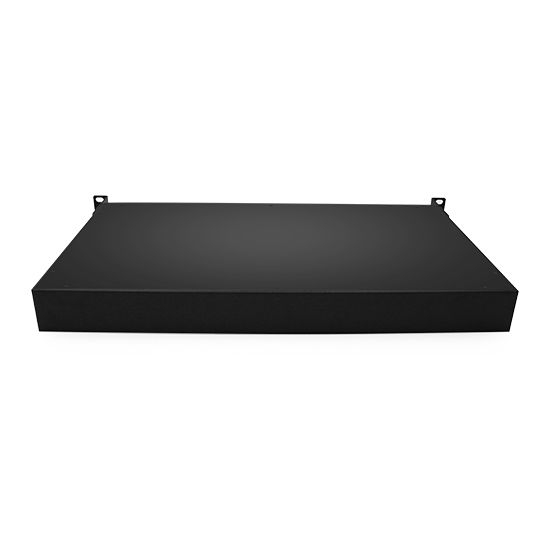

Low IL 3.5dB DWDM MUX DEMUX 40CH (C21-C60) LC/UPC Dual Fiber 1U Rack

Low — Low IL 3.5dB DWDM MUX DEMUX 40CH (C21-C60) LC/UPC Dual Fiber 1U Rack

产品详情

产品参数 — F-tone
波长	40 Channels C21-C60	通道间距	100GHz
Channel Passband	±0.11nm	技术	AAWG (Gaussian)
插入损耗	≤ 3.5dB	Link Loss	≤ 7dB
1310nm Port Pass Band Width	1260nm~1360nm	Center Wavelength Accuracy	±0.05nm
Insertion Loss @ 1310 port	≤ 0.8dB	Insertion Loss @ 1% Mon	≤ 26dB
回波损耗	≥ 40dB	方向性	≥ 40dB
Polarization Mode Dispersion	≤ 0.1ps	偏振相关损耗	≤ 0.3dB
Channel Isolation	Adjacent ≥ 25dB Non-adjacent ≥ 29dB	尺寸(HxWxD)	44x440x230mm
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

波长	40 Channels C21-C60	通道间距	100GHz
Channel Passband	±0.11nm	技术	AAWG (Gaussian)
插入损耗	≤ 3.5dB	Link Loss	≤ 7dB
1310nm Port Pass Band Width	1260nm~1360nm	Center Wavelength Accuracy	±0.05nm
Insertion Loss @ 1310 port	≤ 0.8dB	Insertion Loss @ 1% Mon	≤ 26dB
回波损耗	≥ 40dB	方向性	≥ 40dB
Polarization Mode Dispersion	≤ 0.1ps	偏振相关损耗	≤ 0.3dB
Channel Isolation	Adjacent ≥ 25dB Non-adjacent ≥ 29dB	尺寸(HxWxD)	44x440x230mm
工作温度	商业级/工业级/军品级可选	存储温度	-40°C～+85°C

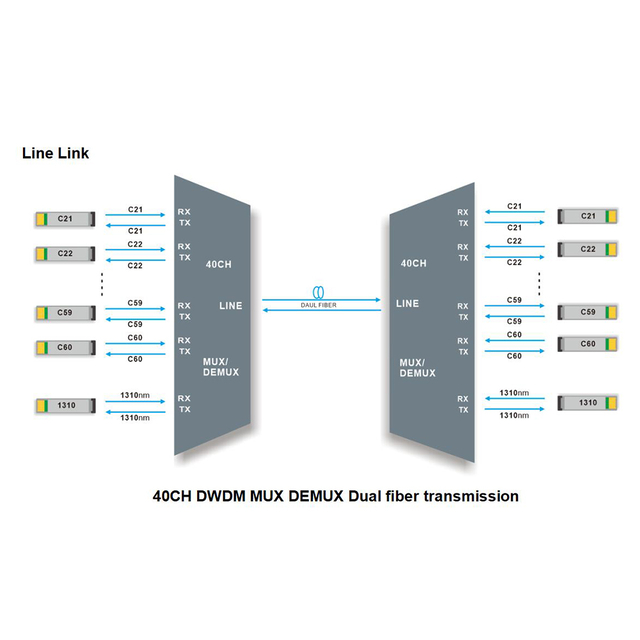

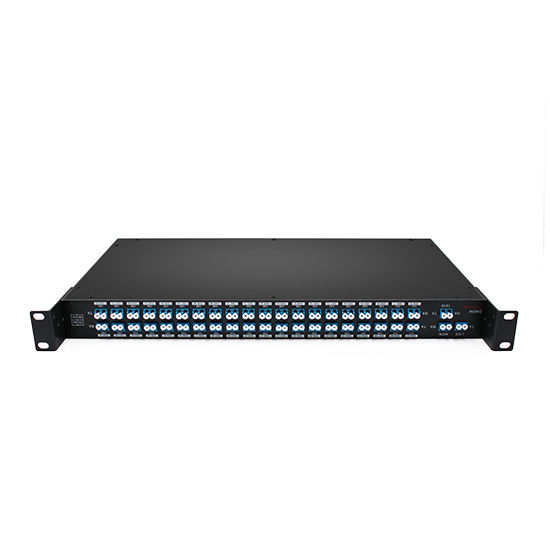

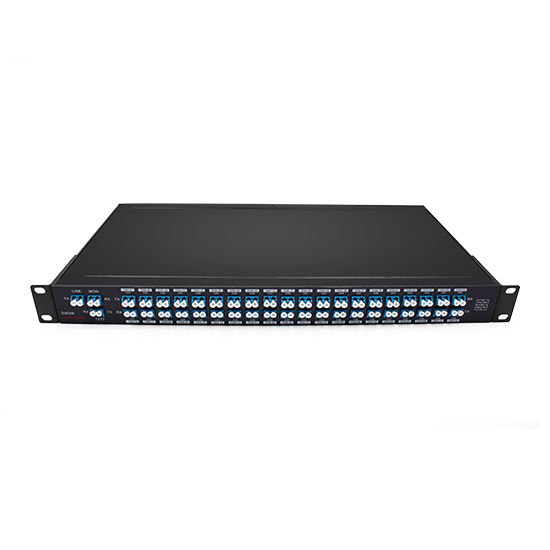

40 Channels C21-C60 DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC 1U Rack Mount Chassis, support low insertion

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Product Specification

Number of channels	4	8	16
Wavelength range	CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss	< 1.5dB	< 2.5dB	< 3.5dB
Isolation ratio of adjacent channels	>30dB	>30dB	>30dB
Isolation ratio of non-adjacent channels	>40dB	>40dB	>40dB
Return loss	>45dB	>45dB	>45dB
Direction	>50dB	>50dB	>50dB
Interface type	All interfaces are LC type
Work temperature	-40〜85℃
Storage temperature	-40〜85℃

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
