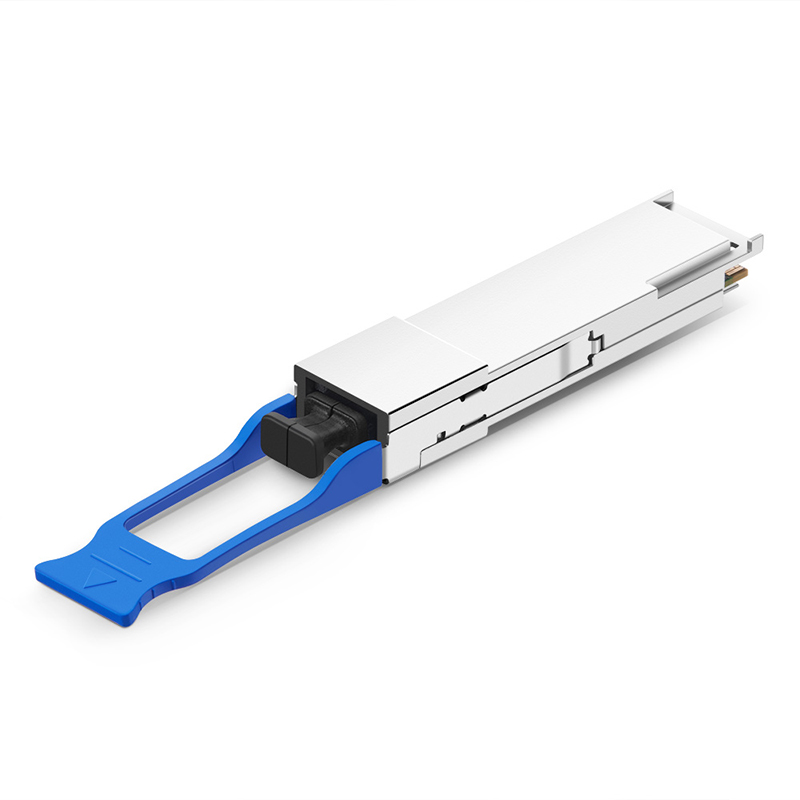

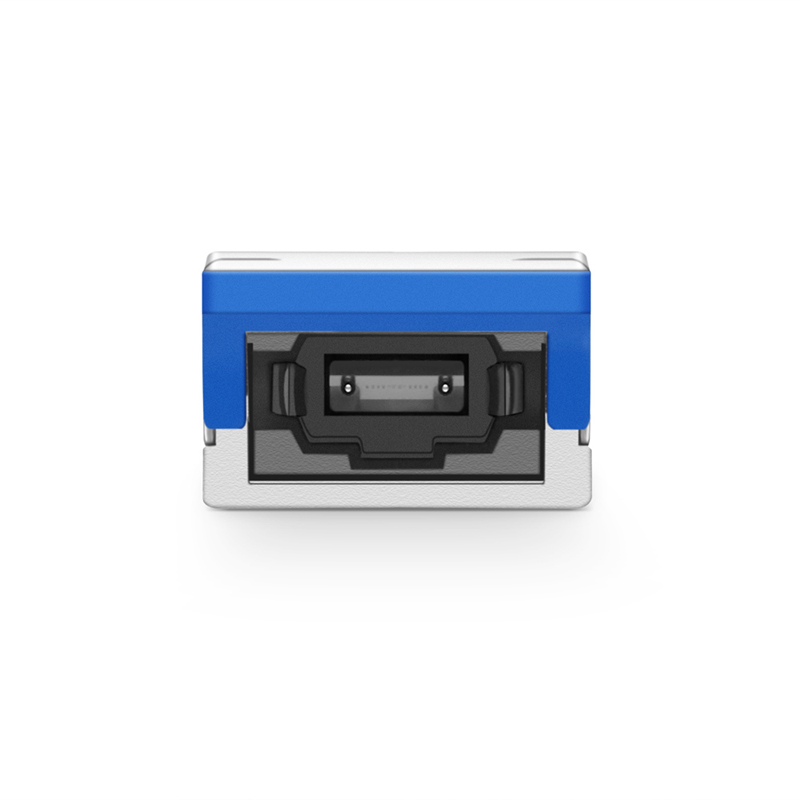

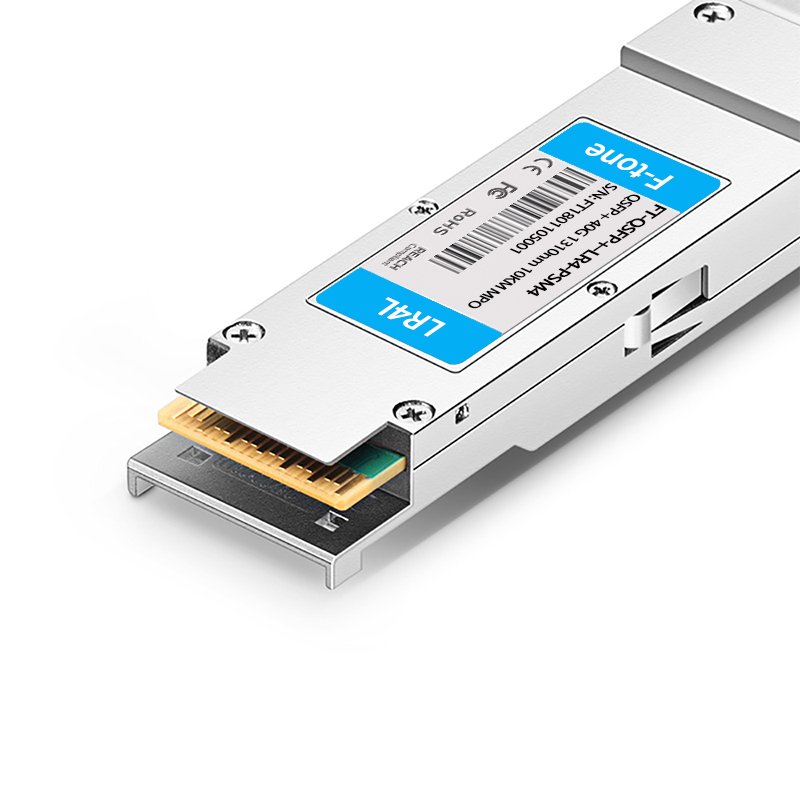

EdgeCore — EdgeCore ET6401-PIR4 Compatible 40G-PLRL4 QSFP+ Transceiver supports 1.4km over single mode fiber and uses a wave length of 1310nm via 12 Fibers MTP/MPO connectors.
产品详情
| 产品参数 — F-tone | |||
| EdgeCore Compatible | ET6401-PIR4 | 制造商名称 | F-tone |
| 封装 | QSFP+ | 传输速率 | 40Gbps |
| 波长 | 1310nm | 最远传输距离 | 2km |
| 接口类型 | MTP/MPO | 发射激光器类型 | 4 Lanes DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | PIN |
| 发射光功率 | -5.0~+1.0dBm | 接收灵敏度 | < -12.6dBm |
| 协议 | 40Gigabit Ethernet, 10Gigabit Ethernet, 38-pin edge connector, MSA Compliant | 工作温度 | 商业级/工业级/军品级可选 |
| EdgeCore Compatible | ET6401-PIR4 | 制造商名称 | F-tone |
| 封装 | QSFP+ | 传输速率 | 40Gbps |
| 波长 | 1310nm | 最远传输距离 | 2km |
| 接口类型 | MTP/MPO | 发射激光器类型 | 4 Lanes DFB |
| 线缆类型 | 单模(SMF) | 光接收器件类型 | PIN |
| 发射光功率 | -5.0~+1.0dBm | 接收灵敏度 | < -12.6dBm |
| 协议 | 40Gigabit Ethernet, 10Gigabit Ethernet, 38-pin edge connector, MSA Compliant | 工作温度 | 商业级/工业级/军品级可选 |
v 4 independent full-duplex channels
v Up to 11.2Gbps per channel bandwidth
v Compliant with QDR/DDR Infiniband data rates
v Up to 2km transmission
v Single +3.3V power supply operating
v RoHS Compliant Part
v Compliant with QDR/DDR Infiniband data rates
v Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-LR4 Standard
v Application for Data centers, Switches, Routers, 40GBASE-IR4-PSM Ethernet Links
EdgeCore ET6401-PIR4 Compatible 40G-PLRL4 QSFP+ Transceiver Use for Enterprise Core and Data Center(1310nm, 1.4km, MTP/MPO, DDM, SMF)
The 40G QSFP PLRL4 is a transceiver module designed for 2km optical communication applications. The design is compliant with 40GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 inputs channels (ch) of 10Gb/s electrical data to 4 optical signals and multiplexes them into a single channel for 40Gb/s optical transmission. The central wavelengths of the 4 channels are 1310 nm as members of the wavelength grid defined in ITU-T G694.2.
Quality Assurance
Quality Certification
our advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding(EEPROM Programming)
- Testing system
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
