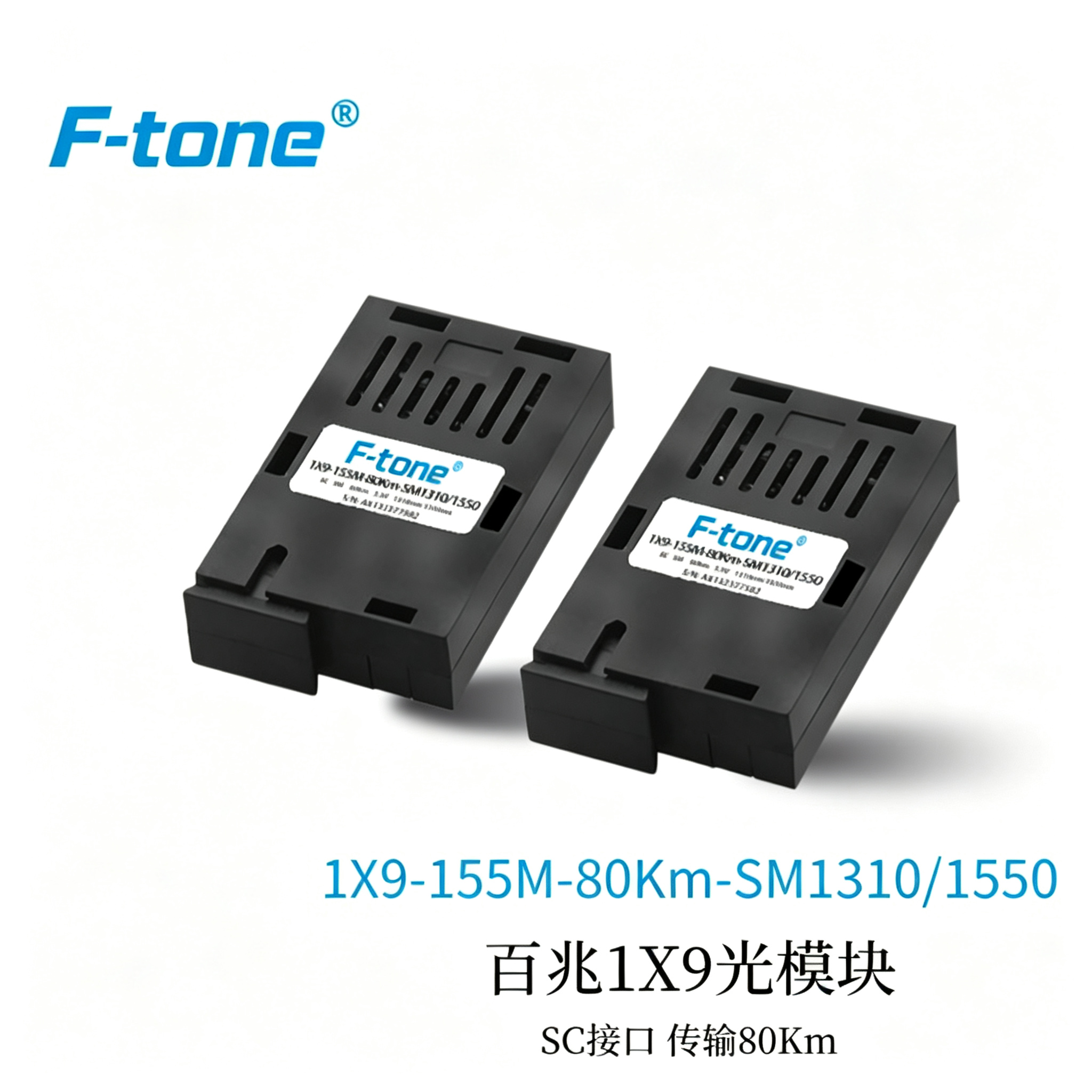

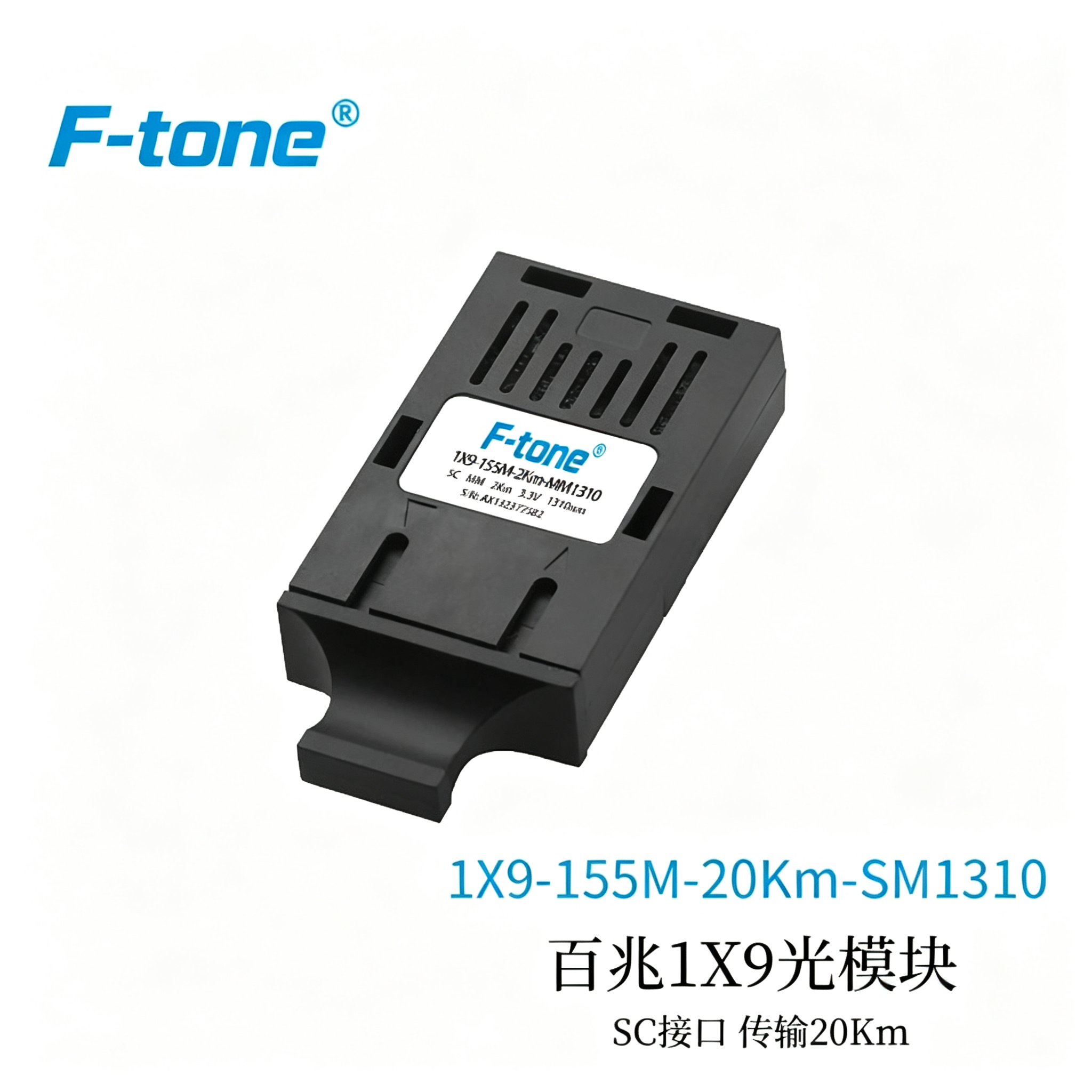

北亿纤通拥有1X9 155M BIDI、DUAL、MM系列全距离光模块，具有低功耗，高可靠性等优点，满足商业级、拓展级和工业级工作温度，其耐高温特性和抗干扰能力达到业界一流，符合RoHS,FDA，广泛应用于以太网传输、SDH、光纤收发器和视频光端机等设备。
工作温度：商业级/工业级/军品级可选
产品特点
- 最大速率高达155Mbps，带插芯背光
- 1310nm/1550nm FP激光器和PIN光源探测器
- 或1490nm/1550nm DFB激光器以及APD光源探测器
- 通过单模光纤传输距离可达120KM
- 支持SC/FC/ST接口可选
产品标准
- 符合RoHS,FDA
技术参数
| 封装 | 型号 | 速率 | 距离 | 波长 | 激光器 | 接口 | 工作温度 | 是否带插芯 |
| 1X9 155M BIDI | ||||||||
| 1X9 | FT-L1-DYJ2-3003-2C12 FT-L1-DYJ2-5003-2C12 |
155Mbps | 20KM | Tx1310 Rx1550 |
FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ2-3003-4C12 FT-L1-DYJ2-5003-4C12 |
155Mbps | 40KM | Tx1310 Rx1550 |
FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ2-3003-6C12 FT-L1-DYJ2-5003-6C12 |
155Mbps | 60KM | Tx1310 Rx1550 |
FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ2-3003-8C12 FT-L1-DYJ2-5003-8C12 |
155Mbps | 80KM | Tx1310 Rx1550 |
FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ2-3103-AC12 FT-L1-DYJ2-5503-AC12 |
155Mbps | 100KM | Tx1490 Rx1550 |
DFB/APD | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ2-3103-CC12 FT-L1-DYJ2-5503-CC12 |
155Mbps | 120KM | Tx1490 Rx1550 |
DFB/APD | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 155M DUAL | ||||||||
| 1X9 | FT-L1-DYJ1-3003-2C12 | 155Mbps | 20KM | 1310 | FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ1-3003-4C12 | 155Mbps | 40KM | 1310 | FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ1-3003-6C12 | 155Mbps | 60KM | 1310 | FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ1-3003-8C12 | 155Mbps | 80KM | 1310 | FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ1-3103-AC12 | 155Mbps | 100KM | 1310 | DFB/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 | FT-L1-DYJ1-5503-CC12 | 155Mbps | 120KM | 1550 | DFB/APD | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
| 1X9 155M DUAL MM | ||||||||
| 1X9 | FT-L1-DYJ1-3M03-SC12 | 155Mbps | 2KM | 1310 | FP/PIN | SC/FC/ST | 0~70℃ -40~85℃ |
是 |
本产品为 北亿纤通 | F-tone Networks FT-L1系列产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Andxe System before they become applicable to any particular order or contract. In accordance with the Andxe System policy of continuous improvement specifications may change without notice.The publication of information in this data sheet does not imply freedom from patent or other protective rights of Andxe System or others. rther details are available from any Andxe System sales representative.
