F-tone offers 9/125 OS2 Duplex Single Mode Fiber Patch Cable (4m) that features CS/UPC to LC/UPC Uniboot connector from 1 meter to 10 meters in length.
产品详情
| 产品参数 — F-tone | |||
| Connector A | CS UPC | Connector B | LC UPC |
| 光纤类型 | OS2 9/125μm Single Mode | 波长 | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex | Distance | 4m (13ft) |
| 玻璃纤维 | Corning ClearCurve® | 电缆护套 | PVC (OFNR) |
| 插入损耗 | ≤0.3dB | 回波损耗 | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| 电缆直径 | 2.0mm | Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | 最小弯曲半径 | 10mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | 商业级/工业级/军品级可选 |
| Connector A | CS UPC | Connector B | LC UPC |
| 光纤类型 | OS2 9/125μm Single Mode | 波长 | 1310/1550nm (CWDM DWDM) |
| Fiber Count | Duplex | Distance | 4m (13ft) |
| 玻璃纤维 | Corning ClearCurve® | 电缆护套 | PVC (OFNR) |
| 插入损耗 | ≤0.3dB | 回波损耗 | ≥50dB |
| Attenuation at 1310nm | ≤0.36dB/km | Attenuation at 1550nm (DWDM) | ≤0.25dB/km |
| 电缆直径 | 2.0mm | Fiber Color | Yellow |
| Fiber Grade | G.657.A1 (Compatible with G.652.D) | 最小弯曲半径 | 10mm |
| 工作温度 | 商业级/工业级/军品级可选 | 存储温度 | -40°C to +85°C |

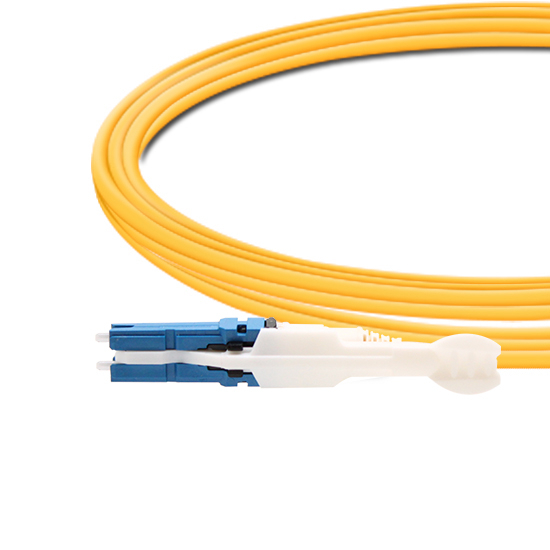

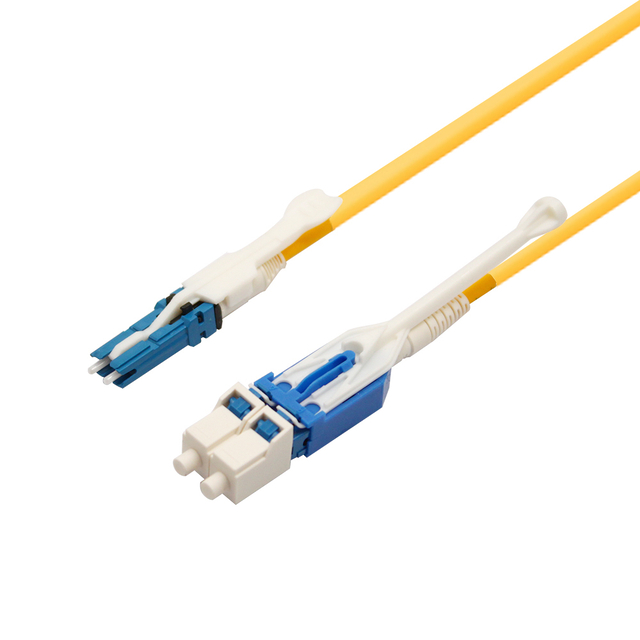

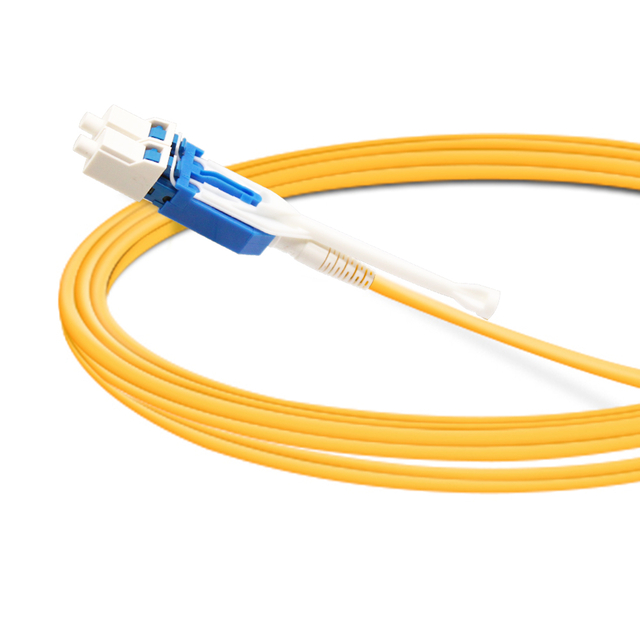

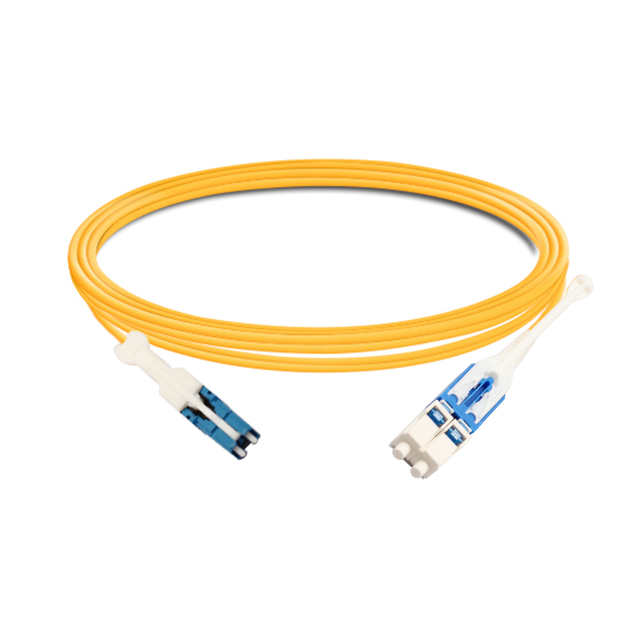

CS-LC Uniboot Duplex 9/125 Single-Mode OS2 Fiber Patch Cable, 4-meter
CS/UPC to LC/UPC Uniboot fiber patch cables are different from the standard LC fiber optic cables, they are constructed for duplex transmission within a cable with two fibers in one physical cable. With this design, it reduces the occupied space on a patch panel when it connects two optical ports, having to position only one fiber instead of two fibers. This OS2 9/125μm single-mode fiber cable is available from 1 meter to 10 meters in length choices for high-density cabling applications.
Product Details
Quality Assurance
Quality Certification
our advantages
-
Short Lead Time
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial Product Testing
Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
- 3D Interferometer Test
- End-Face Inspection
- Insertion Loss and Return Loss Testing
Specifications
Connectors
- LC Duplex
- LC Simplex
- SC Duplex
- SC Simplex
- FC Duplex
- FC Simplex
- ST Duplex
- ST Simplex
Polisy type
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
