Name: 光缆 1m
Brand: F-tone Networks

F-tone offers a 9/125 OS2 Duplex Single Mode LSZH Fiber Patch Cable (1m) that features CS/UPC to LC/UPC Uniboot connector from 1 meter to 10 meters in length.

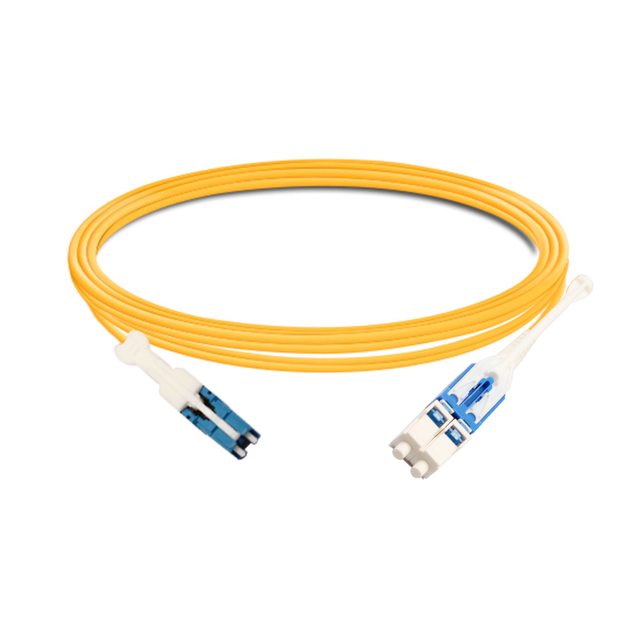

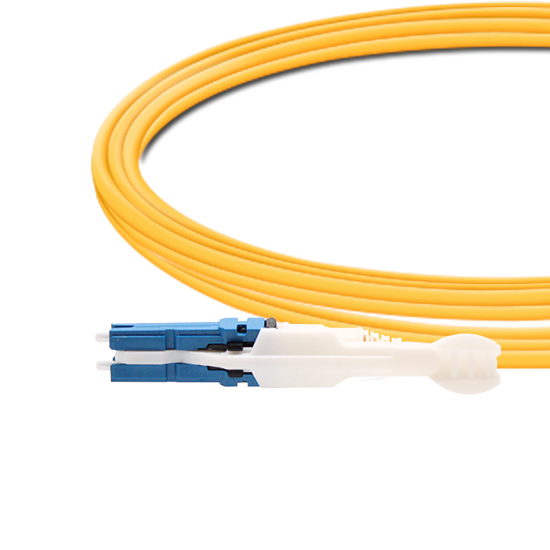

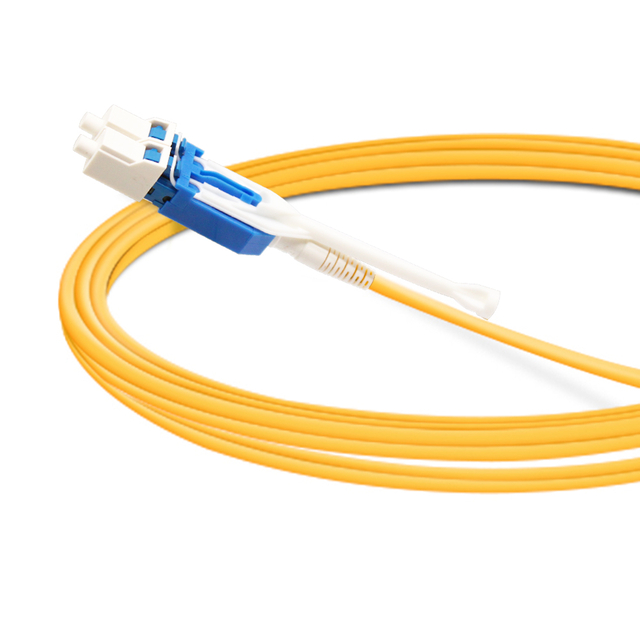

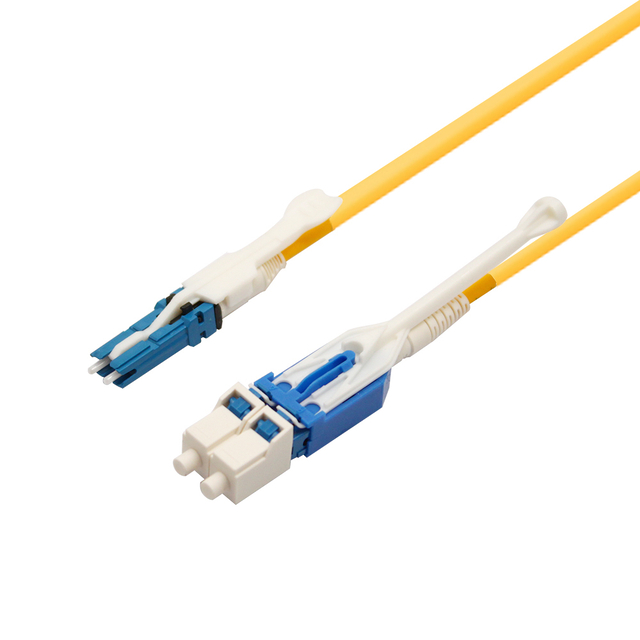

1m (3ft) Duplex OS2 Single Mode CS/UPC to LC/UPC Uniboot LSZH Fiber Optic Cable

产品详情

产品参数 — F-tone
Connector A	CS UPC	Connector B	LC UPC
光纤类型	OS2 9/125μm Single Mode	波长	1310/1550nm (CWDM DWDM)
Fiber Count	Duplex	Distance	1m (3ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
插入损耗	≤0.3dB	回波损耗	≥50dB
Attenuation at 1310nm	≤0.36dB/km	Attenuation at 1550nm (DWDM)	≤0.25dB/km
电缆直径	2.0mm	Fiber Color	Yellow
Fiber Grade	G.657.A1 (Compatible with G.652.D)	最小弯曲半径	10mm
工作温度	商业级/工业级/军品级可选	存储温度	商业级/工业级/军品级可选

Connector A	CS UPC	Connector B	LC UPC
光纤类型	OS2 9/125μm Single Mode	波长	1310/1550nm (CWDM DWDM)
Fiber Count	Duplex	Distance	1m (3ft)
玻璃纤维	Corning ClearCurve®	电缆护套	低烟无卤
插入损耗	≤0.3dB	回波损耗	≥50dB
Attenuation at 1310nm	≤0.36dB/km	Attenuation at 1550nm (DWDM)	≤0.25dB/km
电缆直径	2.0mm	Fiber Color	Yellow
Fiber Grade	G.657.A1 (Compatible with G.652.D)	最小弯曲半径	10mm
工作温度	商业级/工业级/军品级可选	存储温度	-40°C to +85°C

CS-LC Uniboot Duplex 9/125 Single-Mode OS2 LSZH Fiber Patch Cable, 1-meter

CS/UPC to LC/UPC Uniboot fiber patch cables are different from the standard LC fiber optic cables, they are constructed for duplex transmission within a cable with two fibers in one physical cable. With this design, it reduces the occupied space on a patch panel when it connects two optical ports, having to position only one fiber instead of two fibers. This OS2 9/125μm single-mode fiber cable is available from 1 meter to 10 meters in length choices for high-density cabling applications.

Product Details

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: 3D Interferometer Test

: End-Face Inspection

: Insertion Loss and Return Loss Testing

Specifications

Connectors

: LC Duplex

: LC Simplex

: SC Duplex

: SC Simplex

: FC Duplex

: FC Simplex

: ST Duplex

: ST Simplex

Polisy type

1m (3ft) Duplex OS2 Single Mode CS/UPC to LC/UPC Uniboot LSZH Fiber Optic Cable

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
